CHAPTER 8 – ELECTRICAL SYSTEM
8-3

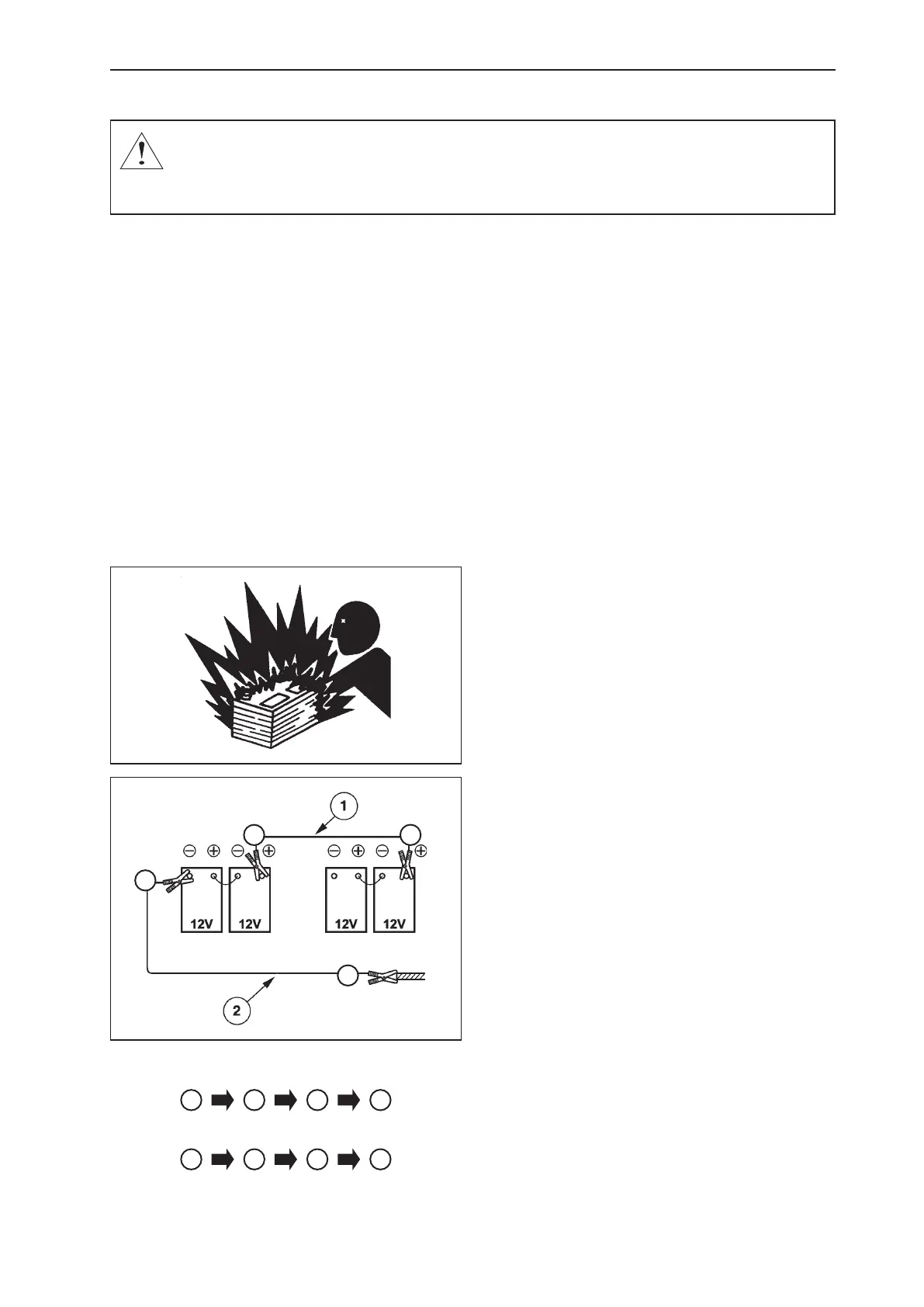

Connecting Booster Batteries
Proceed in the following order:
Connect one terminal of the red cable (1) to the posi-
•
tive (+) pole of machine batteries and the other termi-
nal of same cable to the positive (+) pole of booster
batteries (loaded).
Connect one terminal of the black cable (2) to the nega-
•
tive (-) pole of booster batteries and the other terminal
of same cable to ground (machine frame).
Start the engine.
•
IMPORTANT: The connection of booster batteries should
not be accomplished by non-authorized personnel.
batteries
(loaded)
batteries
(unloaded)
C
B
A
D
CABLE CONNECTION ORDER:
A
B
C
D
CABLE DISCONNECTION ORDER:
D
C
B
A
Disconnecting Booster Batteries
Disconnect the black cable (2) terminal from ground
•
(machine frame), then disconnect the other terminal
of same cable from the negative (-) pole of booster
batteries (loaded).
Disconnect the red cable (1) terminal from the positive
•
(+) pole of booster batteries, then disconnect the other
terminal of same cable from the positive (+) pole of
machine batteries (unloaded).
STARTING THE ENGINE USING BOOSTER BATTERIES
WARNING: Explosive gas is produced while batteries are in use or being charged. Keep open ames and
/ or sparks away from the battery charging area. Charge the batteries in a well ventilated place. Park the
machine on a dry rm, surface. Do not park on metal surfaces. Take care to make correct connections.
Never connect a positive terminal (+) to a negative terminal (-).
IMPORTANT: The machine electrical system is 24 V with negative (-) ground. Use only booster batteries with same
voltage.
