CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-2
1
4
3
5
2
1. BLADE LIFT LEVER (LEFT END)
This lever is used to lower or raise the left end of the bla-
de. Move the lever forward to lower or rearward to raise
the blade. After reaching the desired height, release the
lever to return it the neutral position.
2. FRONT SCARIFIER / RIPPER
OR BLADE LEVER
This lever is used to lower or raise the front scarier /
ripper or blade. Move the lever forward to lower or rea-
rward to raise. After reaching the desired height, release
the lever to return it the neutral position.

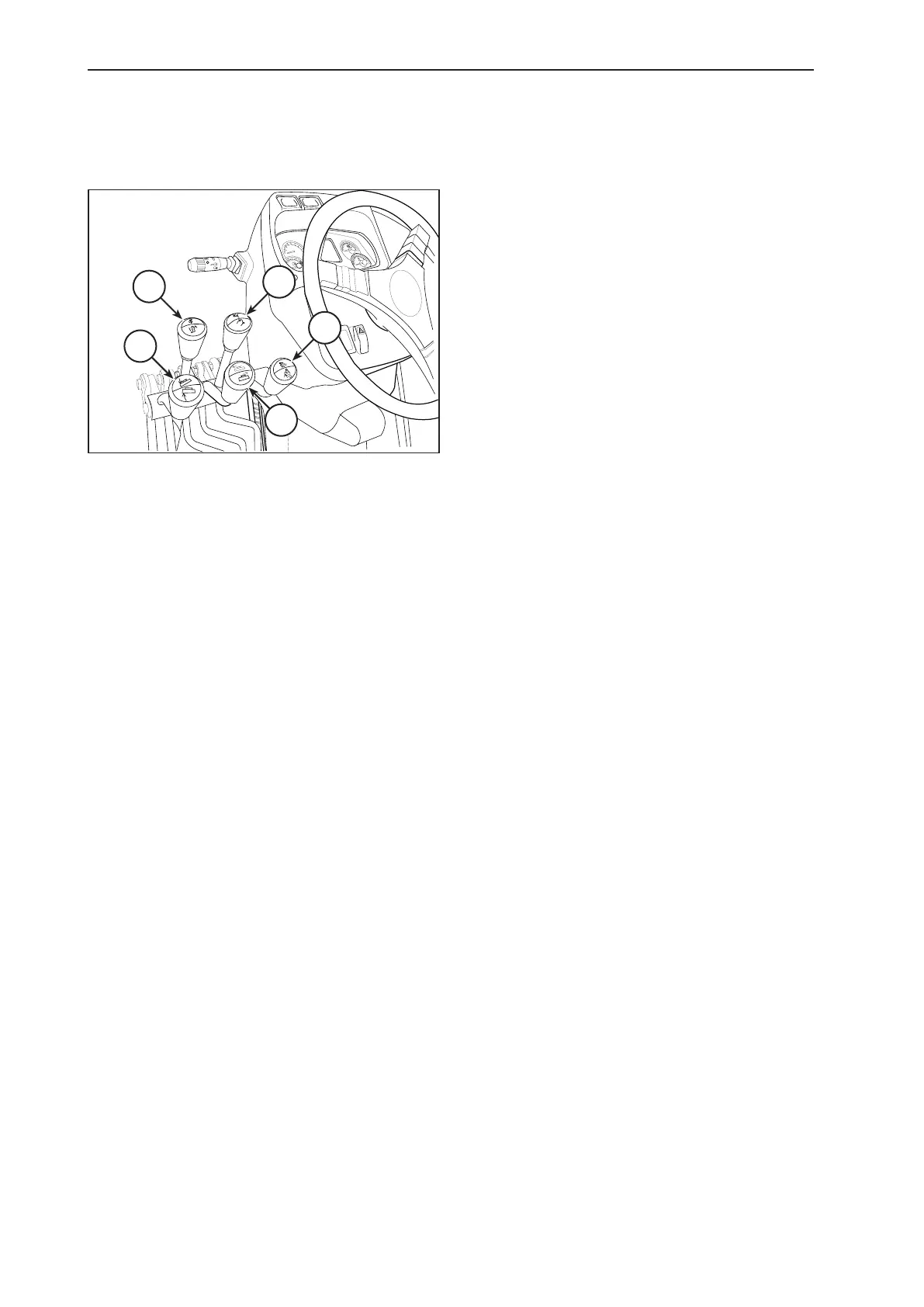

GROUP 1
FRONT CONSOLE
Implement control levers (left side)
3. BLADE SIDE SHIFT LEVER
This lever shifts the blade to the right or left. Push the le-
ver forward to shift the blade to the left or pull it rearward
to move the blade to the right. After shifting the blade to
the desired position, release the lever to return it the neu-
tral position.
4. BLADE PITCH LEVER
This lever allows the change of the blade pitch angle.
Push the control lever forward (increase) or pull it rea-
rward (decrease) until the desired pitch angle is achieved.
Release the lever to return it the neutral position.
5. CIRCLE TURN LEVER
This lever is used to return the circle in clockwise or coun-
terclockwise rotations.
Push the lever forward to rotate counterclockwise or pull
it rearward to rotate the circle clockwise. After moving the
circle to the desired position, release the lever to return it
the desired position.
