CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-3
6
9
8
7
6. CIRCLE SIDE SHIFT LEVER
This lever is used to move the circle to the right or to the
left. Move the lever forward to shift the circle to the left or
rearward to shift the circle to the right. After moving the
circle to the desired position, release the lever to return it
to the neutral position.
7. ARTICULATION LEVER
Move the lever forward for left articulation or rearward
for right articulation until the desired articulation angle is
achieved. Release the lever to return it to the neutral po-
sition.
8. FRONT WHEEL LEAN LEVER
The front wheel lean lever leans the front wheels to the
left or to the right to maintain stability when grading or
ditching and to reduce turning radius. Move the lever
forward to lean the wheels to the left or rearward to lean
the wheels to the right. After reaching the desired posi-
tion, release the lever to return it to the neutral position.
9. BLADE LIFT LEVER
This lever is used to lower or raise the right end of the bla-
de. Move the lever forward to lower or rearward to raise
the blade. After reaching the desired height, release the
lever to return it to the neutral position.
10. WARNING LIGHTS
10
Actuate this signal whenever the machine is
encountered in dangerous situations.

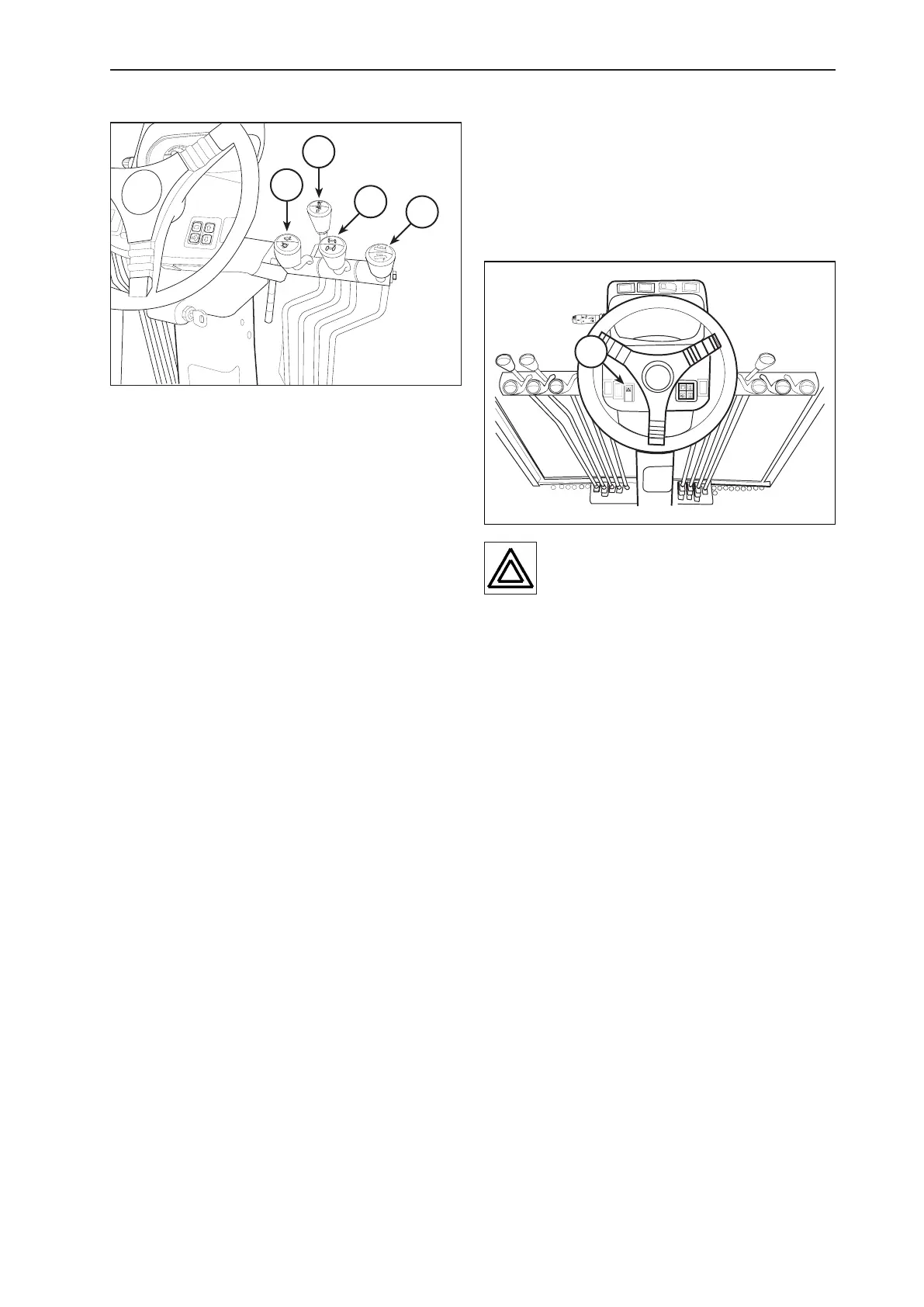

Implement control levers (right side)
