CHAPTER 6 – LUBRICATION / FILTERS / FLUIDS
6-12

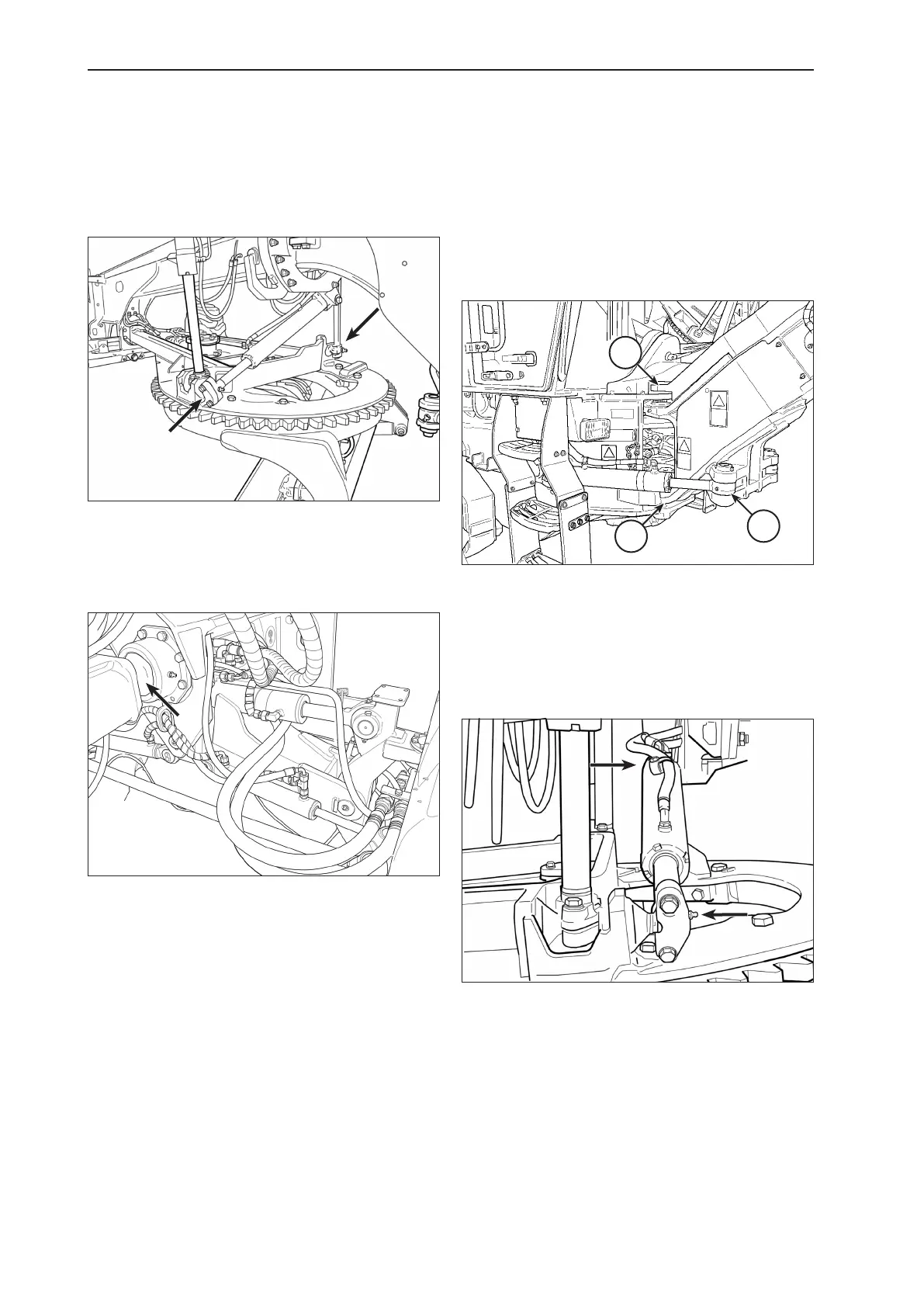

GREASE FITTINGS
Each 100 hours services
Moldboard Lift Cylinders Balls
There are 2 lube points. Lubricate with 6 to 12 shots each.
LIFT CYLINDERS BALL JOINT
Drawbar Ball and Socket
There is 1 lube point. Lubricate with 6 to 14 shots.
DRAWBAR BALL AND SOCKET
Articulation, Hydraulic Cylinders
and Pivot Joints
There are 4 lube points, 2 on each side. Lube with 6 to
10 shots on cylinders ends. Lube, with 6 to 14 shots on
pivot bearings.
1
2
3
ARTICULATION CYLINDERS JOINTS1.
LOWER ARTICULATION JOINT2.
UPPER ARTICULATION JOINT3.
Moldboard Tilt Cylinders Balls
There are 2 lube points. Lubricate with 6 to 12 shots each.
TILT CYLINDER BALL JOINT
