CHAPTER 6 – LUBRICATION / FILTERS / FLUIDS
6-13

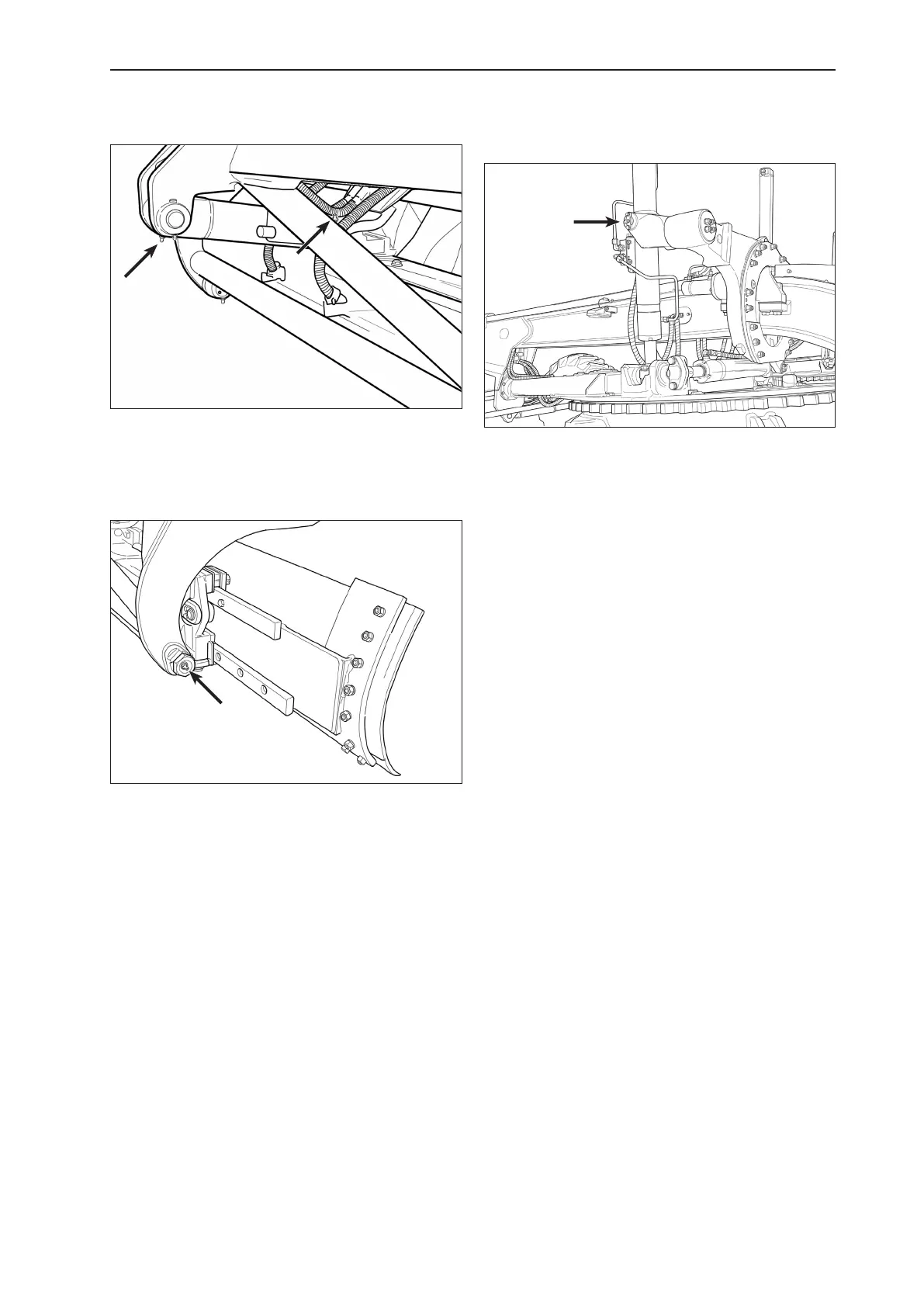

Moldboard Tilt Cylinder Pivot
There are 2 lube points. Lubricate with 4 to 6 shots each.
TILT CYLINDER PIVOT
Moldboard Tilt Pivot
There are 2 lube points. Lubricate with 4 to 6 shots each.
TILT PIVOT
Lift Cylinder Pivots
There are 4 lube points for the pivots. Lubricate the pivots
with 1 to 2 shots each.
LIFT CYLINDER PIVOTS
