CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-47
GROUP 5
CAB
Under any environment condition, the cabin provides maximum comfort to the operator.
Locking and Unlocking Handles and Levers
1

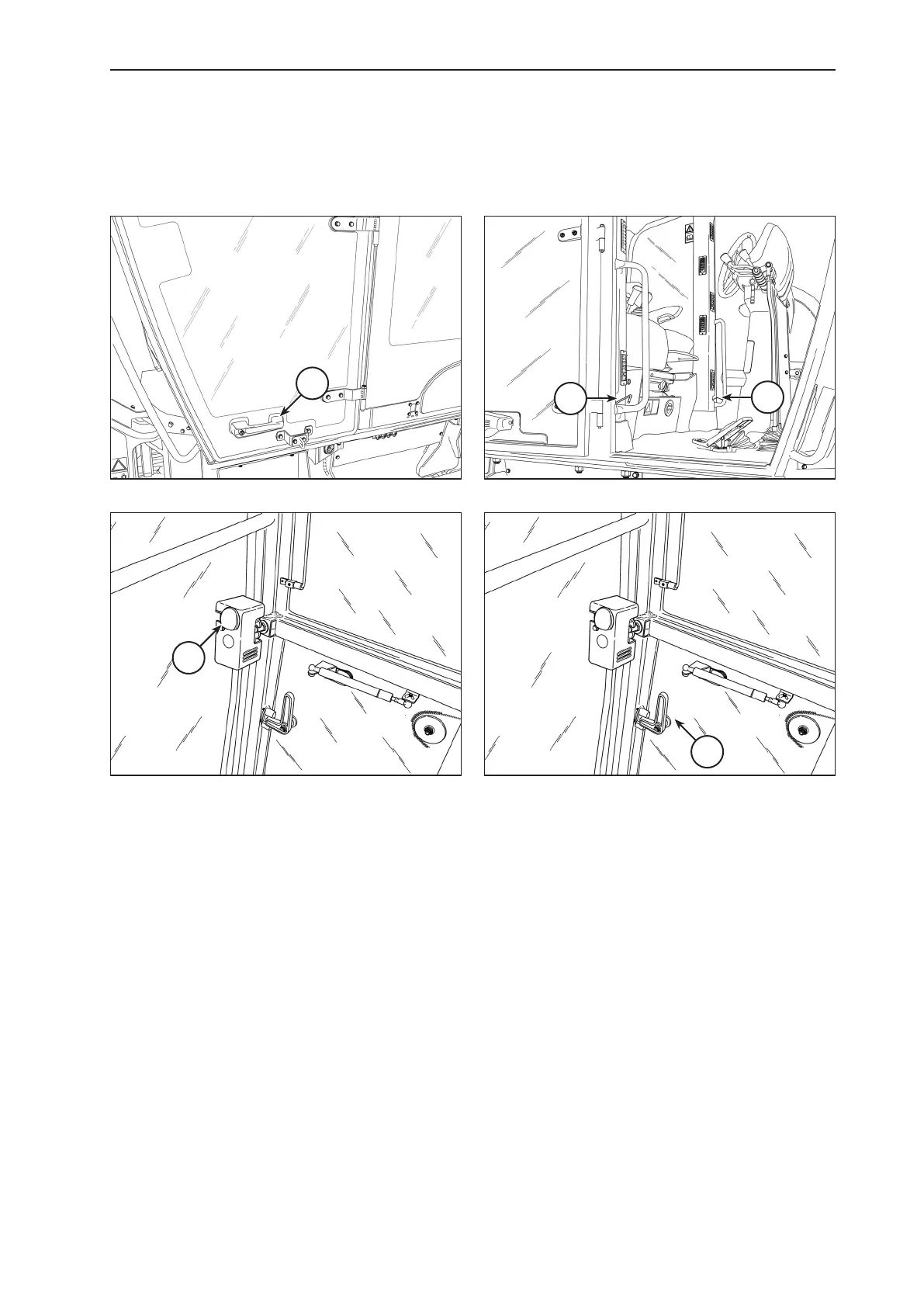

EXTERNAL DOOR HANDLE1.
2
INTERNAL DOOR HANDLE2.
Use the handle to open the door. To keep the door open
while operating the machine, or during any maintenance
work on the cabin, open the door until it reaches the au-
tomatic locking device. To unlock, actuate the door unlo-
cking lever.
3
3
DOOR UNLOCKING LEVER3.
4
LOWER WINDOW TILTING LOCK LEVER (OPTIONAL)4.
