Fuses Replacement
The fuses were designed to be burned if an overcharge
occurs in any electric circuit of the machine, avoiding thus
major damages to the wiring harnesses and to the electric
components of the electric circuits.
To replace the fuses, perform the procedure below:
Turn the ignition switch to the “OFF” position and dis-1.
connect all the electric accessorie.

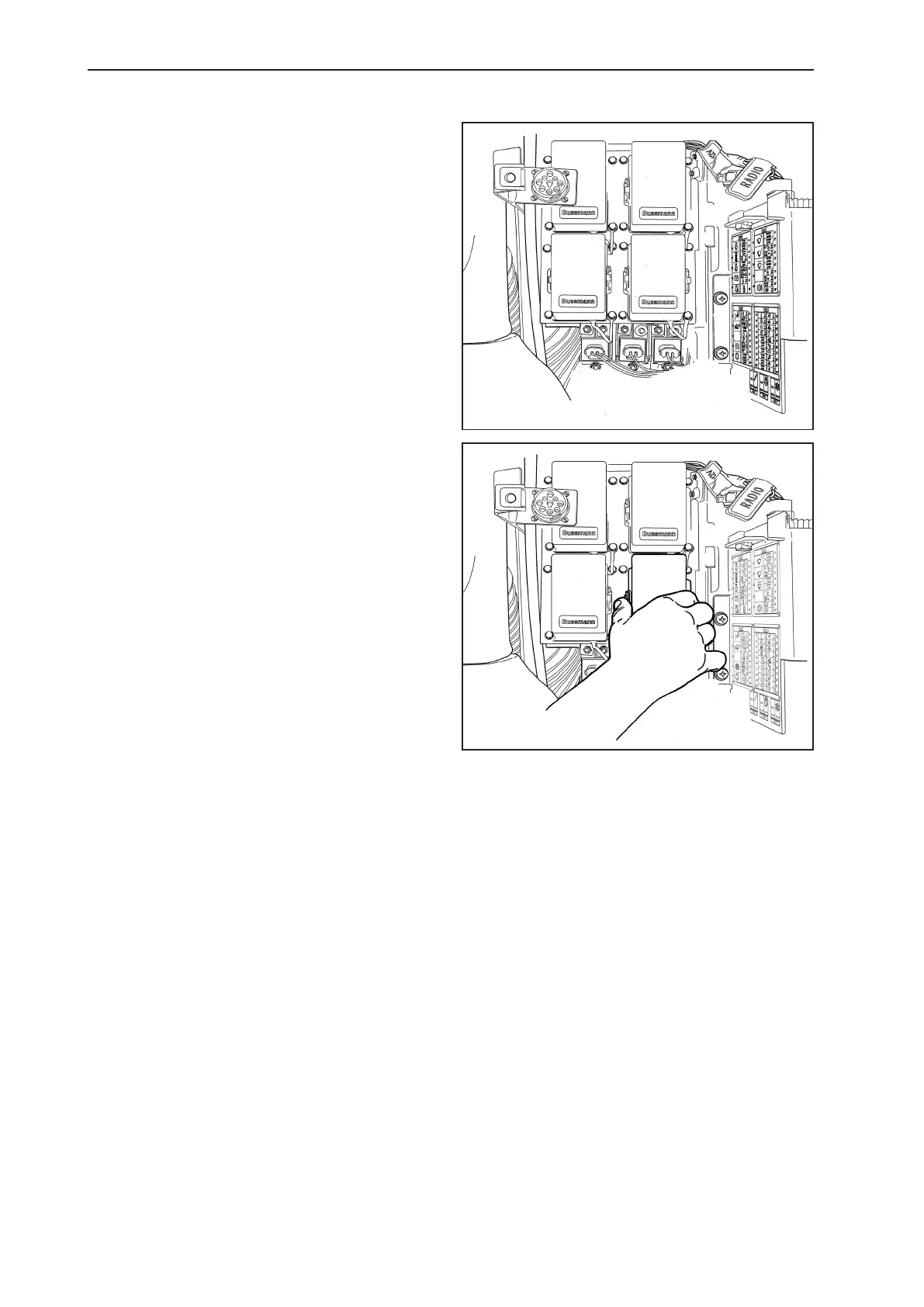

Remove the fuse box cover, by pressing it with the 2.
ngers laterally.
Determine which fuse is burned. A decal on the fuse 3.
boxes door and the “Fuses Box” section show the cir-
cuits for each fuse.
Remove the o fuse.4.
Inspect the o fuse. If burned, replace it with one of the 5.
same capacity.
If the same fuse burns again, a malfunction may exist 6.
in the circuit in question. Contact your CASE dealer.
Reinstall the fuse box cover, by pressing it with the 7.
hand until is rmly locked.
IMPORTANT: Never replace a fuse with one of higher ca-
pacity than the specied. Never improvise a substitute for
a fuse.
