CHAPTER 8 – ELECTRICAL SYSTEM
8-5
The Come-home is an emergency function, used in event
of failure of the transmission control module. If the im-
mediate replacement of the module is not possible, this
function allows the driving of the machine to the nearest
repair shop.
The switch (14) on the instrument panel is a three-posi-
tion switch: forward, neutral and reverse. To enable the
system, turn off the machine, apply the parking brake and
put the switch in the neutral position.
Open the cover on the right hand side of the operator’s
cab. This allows the access to two gray connectors and
one black connector.

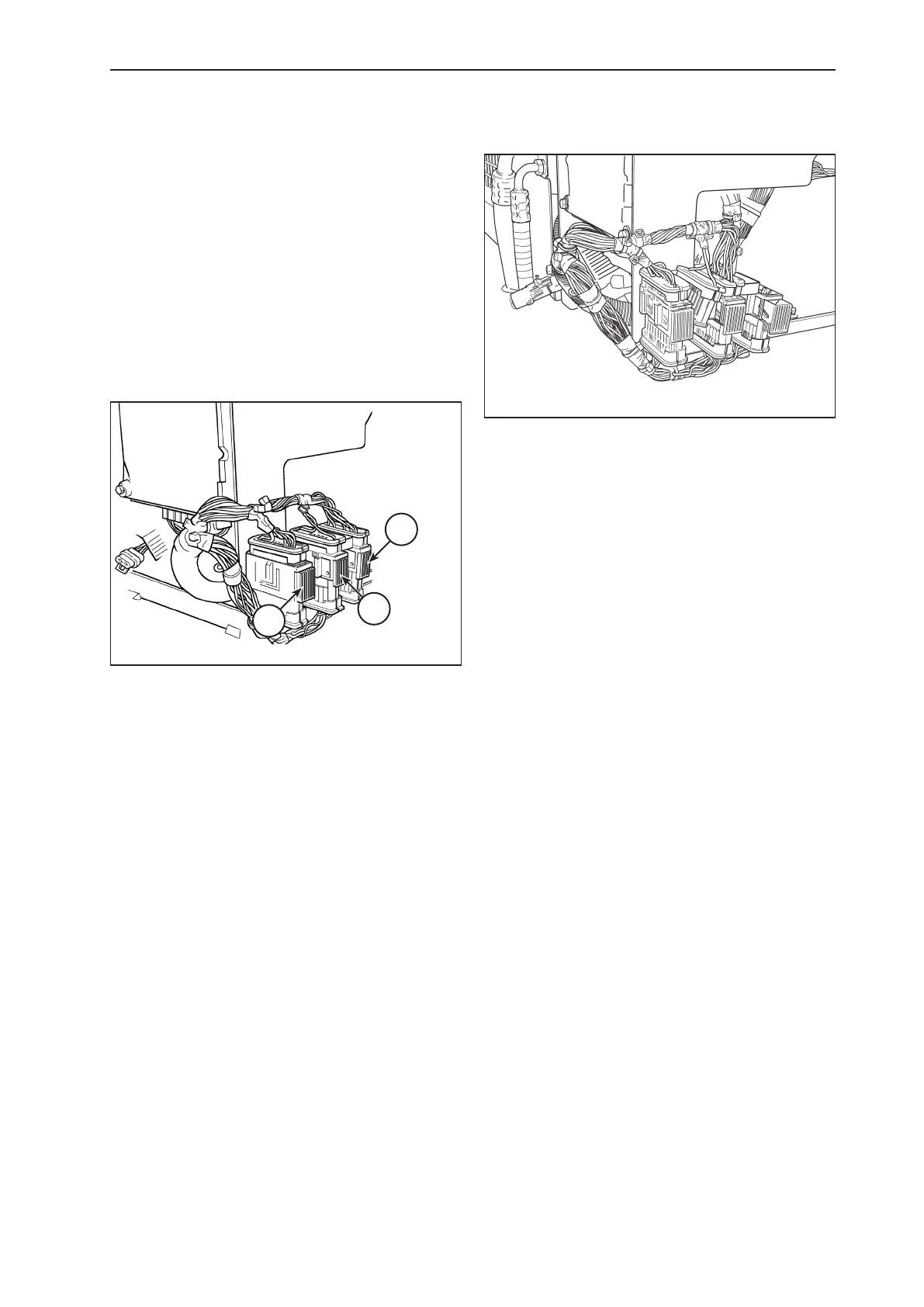

X23
X24
X23A
TRANSMISSION FUNK
CONTROL MODULE CONNECTORS –
COME-HOME NOT ACTIVATED
Disconnect the gray connectors, X23 and X23A. Connect
the upper part of the X23 connector to the lower part of
the X23A connector.
COME-HOME ACTIVATED
Close the side-cover, be sure the parking brake is applied,
then start the engine.
NOTE: After releasing the parking brake, select the de-
sired driving direction (forward–reverse) through the CO-
ME-HOME switch on the instrument panel.
Moving the COME-HOME switch to the “forward” position
the system will select the second forward gear. Moving
the COME-HOME switch to the “reverse” position, the
system will select the rst backup gear.
After repairs, reconnect the connectors to their former po-
sitions.
Come-Home
845B / 865B / 885B WITH FUNK TRANSMISSION
