Casio EX-ZR5100 - General Guide

11
General Guide
General Guide

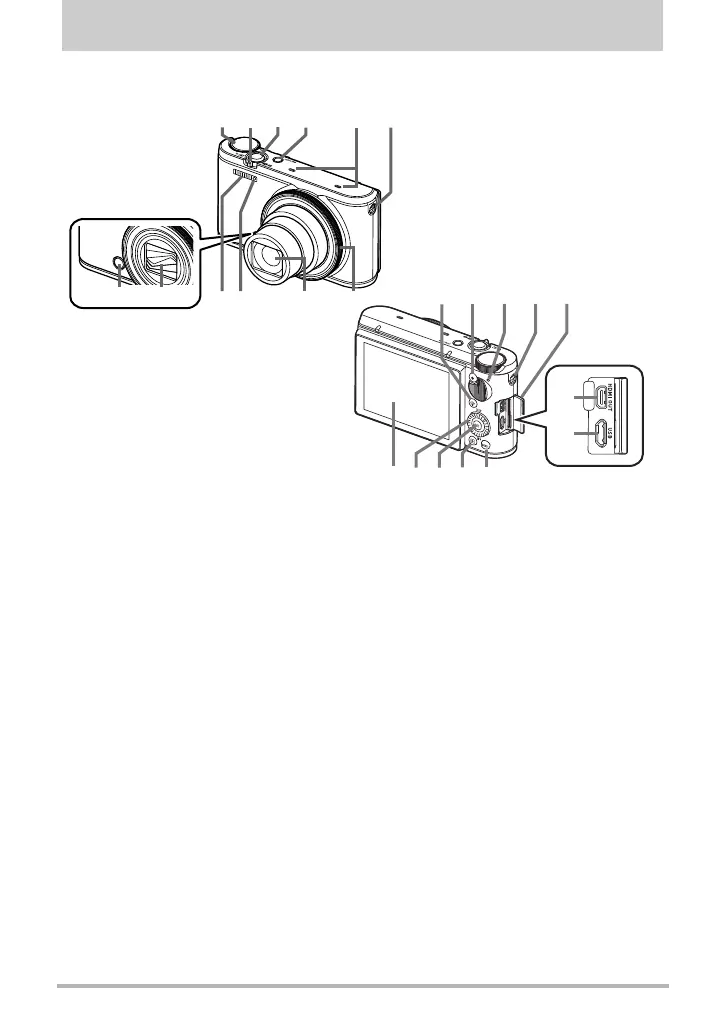

The numbers in parentheses indicate the pages where each item is explained.

Mode dial
(pages 34, 42, 77)

Zoom controller
(pages 35, 56, 136)

Shutter button
(pages 28, 34)

[ON/OFF] (Power)
(pages 27, 28)

Microphones (page 79)

Strap hole (page 3)

Function ring (page 140)

Lens

Front lamp
(pages 45, 125)

Flash (page 53)

Front shutter button
(pages 112, 139)

Lens barrier (page 211)

[W] (Wireless) button
(pages 68, 160)

[0] (Movie) button
(page 77)

Back lamp
(pages 23, 24, 28, 35,
53)

Strap hole (page 3)

Terminal cover

[HDMI OUT]
HDMI output (micro)
(page 108)

[USB] port
(pages 22, 24)

[MENU] button
(pages 77, 110)

[p] (PLAY) button
(pages 28, 38)

[SET] button
(pages 44, 77, 110)

Control dial
([8][2][4][6])
(pages 12, 44, 77, 91,
110, 139)

Monitor screen
(pages 13, 34)
bl bm
1234 65
9bk
8 7
cmcn cl ck
bo
co
bn bp bq br
bs
bt
Front
Back
