CENTRALINE I/O MODULES – INSTALLATION & COMMISSIONING INSTRUCTIONS
EN1Z-0973GE51 R0119 6

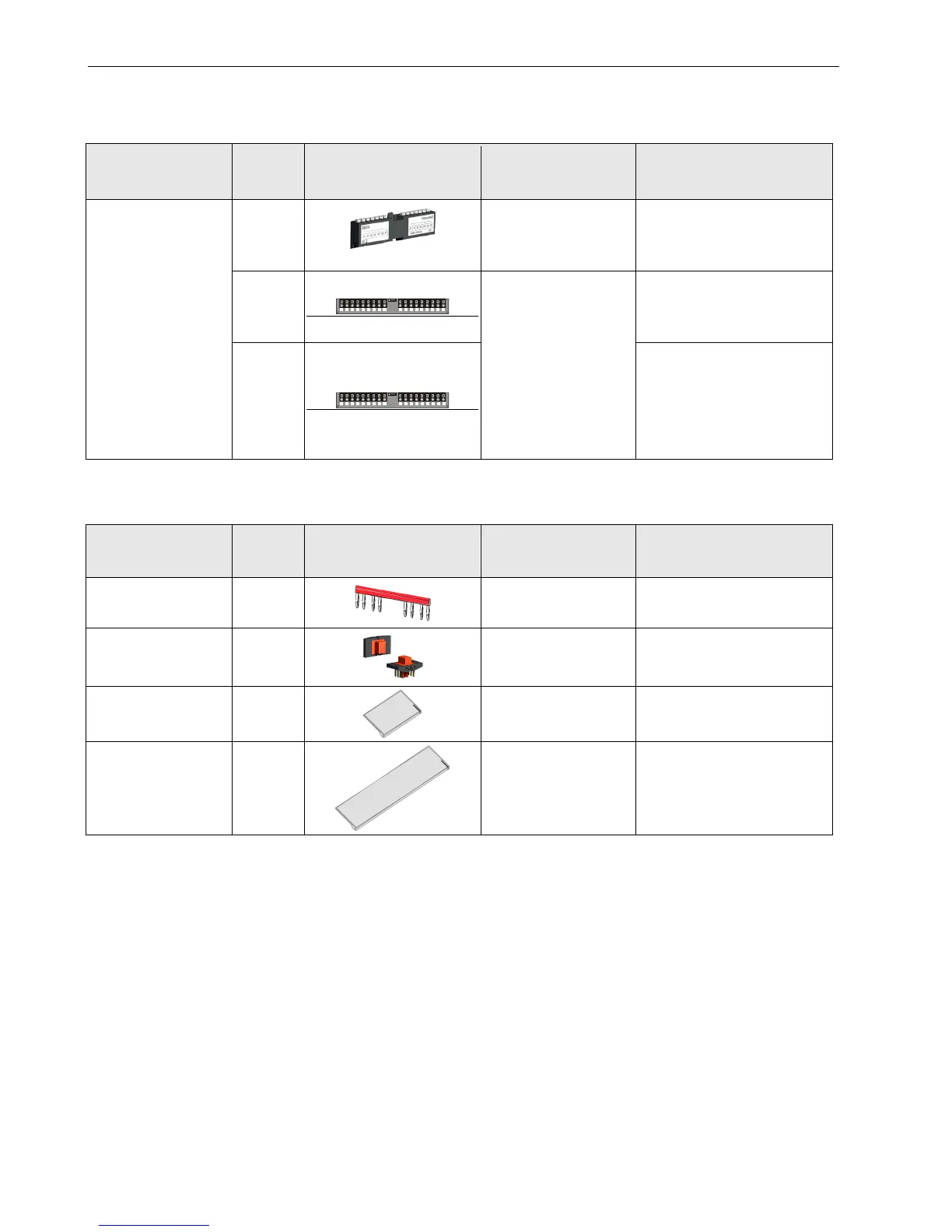

Auxiliary Parts
Table 5. Auxiliary parts
Module Type Figure
Corresponding
I/O modules
CLIOP/CLIOL…
Information
Auxiliary terminal
package
XS814
All pluggable CentraLine
I/O modules
Two groups of 7 terminals con-
nected to each other for
redistributing voltage (see also
Fig. 64)
XS830
A1 A2 A3 A4 A5 A6 A7 A8 A9 B1 B2 B3 B4 B5 B6 B7 B8 B9
Mixed Panel Bus I/O
modules, only
Two groups of nine internally-
connected push-in terminals, for
distributing signals/power (see
also Fig. 66).
XS831
A1 B1 A2 B2 A3 B3 A4 B4 G1 G2A5 B5 A6 B6 A7 B7 A8 B8
Two groups of four pairs of
push-in terminals (each with a
499Ω resistor to GND), for con-
verting 0…20 mA signals into
0…10 VDC signals, and one
push-in ground terminal per
group. (see also Fig. 68)
Spare Parts
Table 6. Spare parts
Module Type Figure
Corresponding
I/O modules
CLIOP/CLIOL…
Information
Cross connectors (red) XS815
…824A
…825A
Connects 6 relay commons
Bridge connector XS816
All CentraLine I/O
modules
Connects CLLIONLC01 and I/O
modules (exc. CLIOP831A)
Swivel label holder XAL10
All pluggable CentraLine
I/O modules
Can be plugged into socket, for
attaching label generated by the
engineering tool
Swivel label holder XAL11
Mixed Panel Bus I/O
modules, only
Can be plugged into module, for
attaching label generated by the
engineering tool. NOTE:
Phased out.
