page 19 www.centsys.com
Z
GATE OPENING
ANGLE
DIMENSION C FOR DRIVE ARMS
250mm 400mm 500mm
1658 112° 302 482 603
1668 113° 300 480 600
1677 114° 298 477 596
1687 115° 296 474 593
1696 116° 295 472 590
1705 117° 293 469 586
1714 118° 292 467 583
1723 119° 290 464 580
1732 120° 289 462 577
TABLE 5 CONTINUED
Select value of Z in table closest to that measured.
Step 4
Position the Gate Bracket at
dimension “C” and weld or bolt the
bracket to the gate, then mark “S4”
on the ground (gate closed).

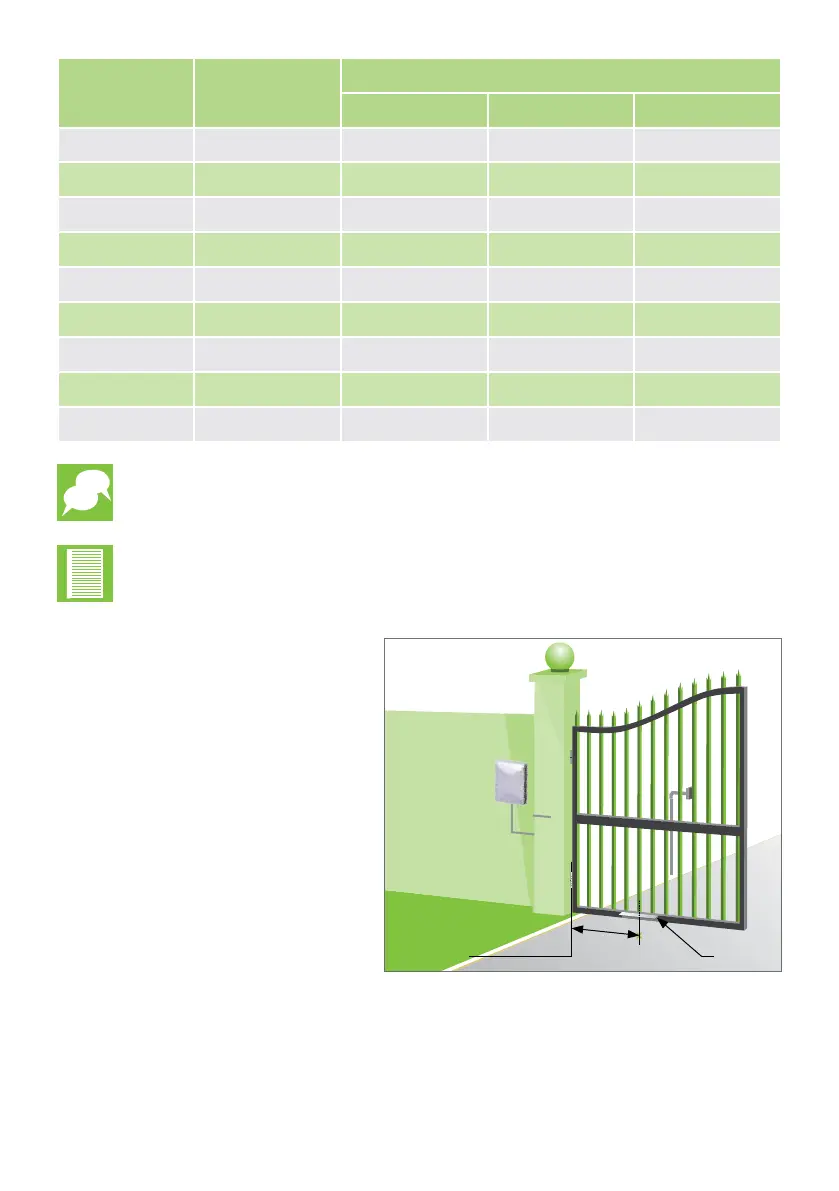

FIGURE 9. POSITIONING GATE BRACKET
Hinge
centreline
Gate
Bracket
S4
C
OPERATOR INSTALLATIONSECTION 6
Drive Arm Length Application
250mm - Limited space or outward opening applications.
400mm - Standard double R6 kits.
500mm - Standard R6 or single R6 kits.
