Mounting the Quantum Maestro Orchestrator MHO-175 in a Rack
Quantum Maestro Getting Started Guide|54

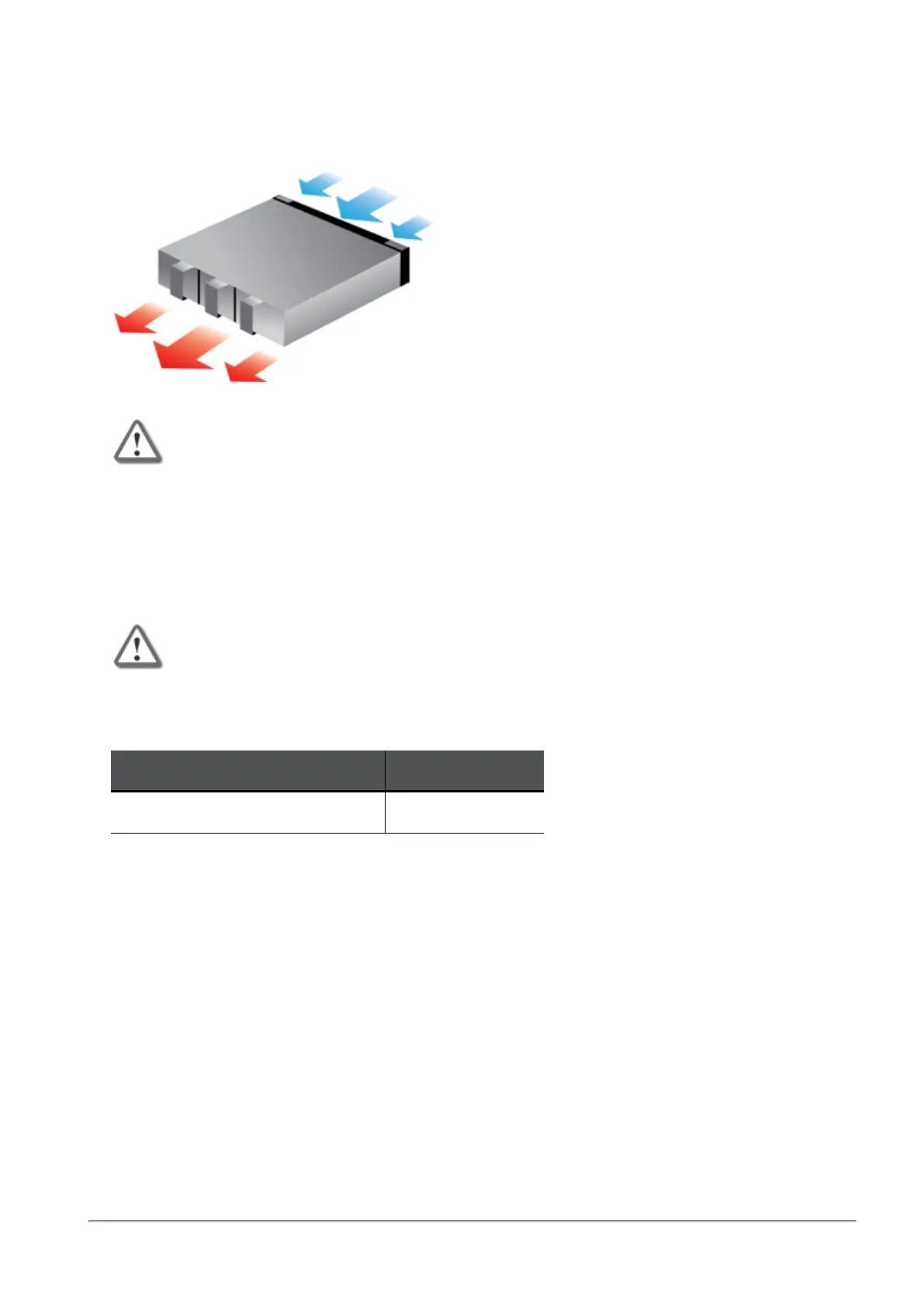

Airflow in MHO-175
The fan units in the Quantum Maestro Orchestrator generate the airflow from the front panel (intake) to
the rear panel:
Important:
n
All systems in the same rack should be planned with the same airflow
direction.
n
All fan units in the same rack need to have the same air flow direction.
A mismatch in the air flow affects the heat dissipation in the rack.
Static Rail Kit for MHO-175
The Quantum Maestro Orchestrators are sold with the static rail kit.
Important - At least two people are required to mount the Quantum Maestro
Orchestrator safely in the rack.
Installation Rail Kit:
Rack Size and Rack Depth Range Comments
43 - 80 cm (16.9 - 31.4 inches) Supplied by default
