Mounting the Quantum Maestro Orchestrator MHO-175 in a Rack
Quantum Maestro Getting Started Guide|63
Step 4: Attaching the Rack Mount Blades to the Rack
While your installation partner is supporting the Quantum Maestro Orchestrator, perform these steps:
Step Instructions
1 Attach the rack mount blades (B) to the back side (FRU side) of the rack at the level of the
designated cage nuts.
2 Insert four Phillips pan-head screws (E) in the designated cage nuts.
3 Do not tighten the screws yet.

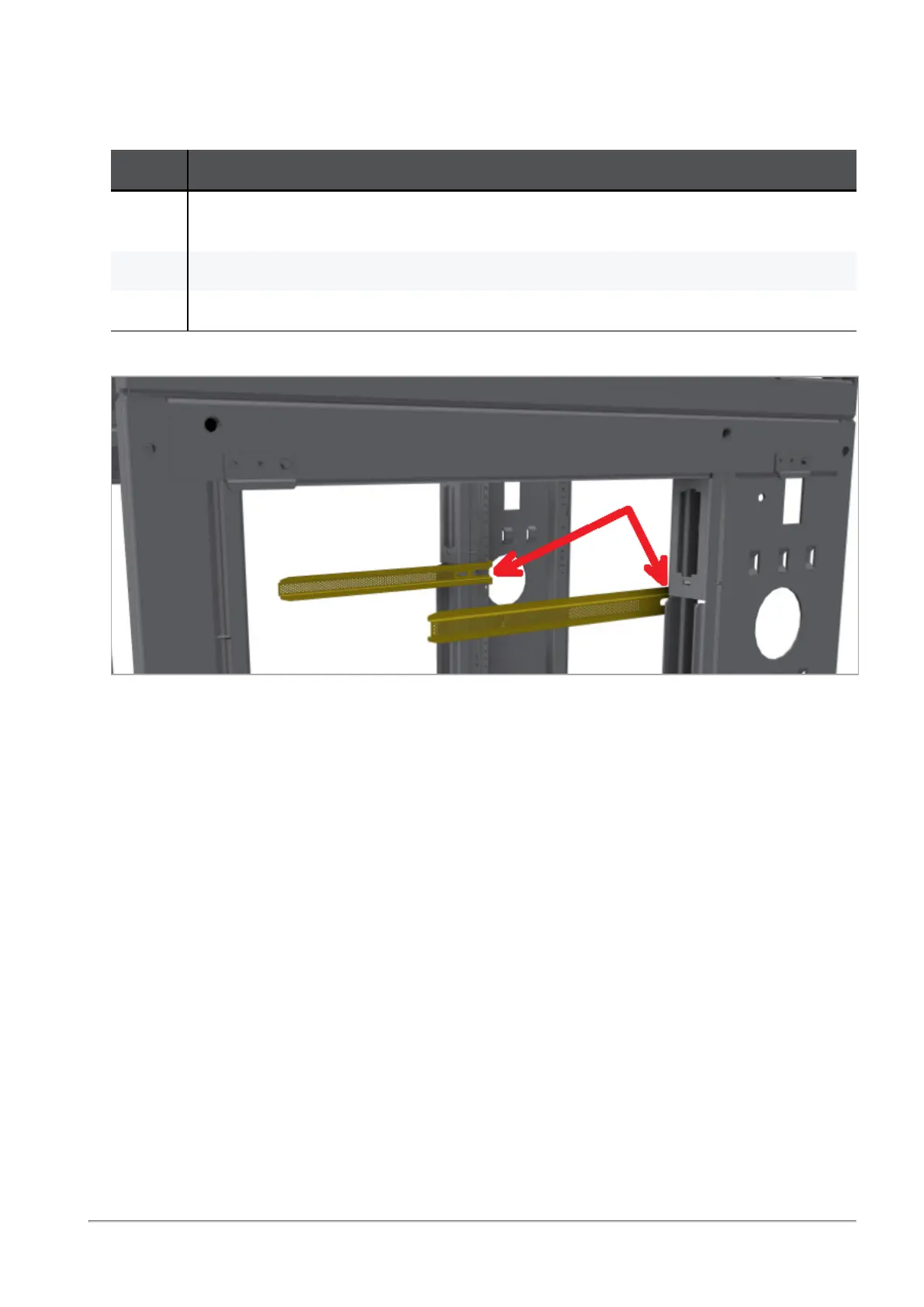

Example:
