Chloride SYNTHESIS - Figure N: Output Cabinet with

1.6.5.3 POWER DISTRIBUTION PANEL (OPTIONAL)
Units purchased with the optional Power Distribution Panel (PDP) allow the installation of
up to 8 (4-6kVA) or 16 (8-12kVA) 1” breakers inside the Output Cabinet. The PDP comes
configured for 120/240 volts only. In 120/208/240 applications, the 208-volt connection is a
hardwire only.
Ground bond
electrode
Conduit knockouts
Ground bus
Breaker pole
positions
Neutral bus

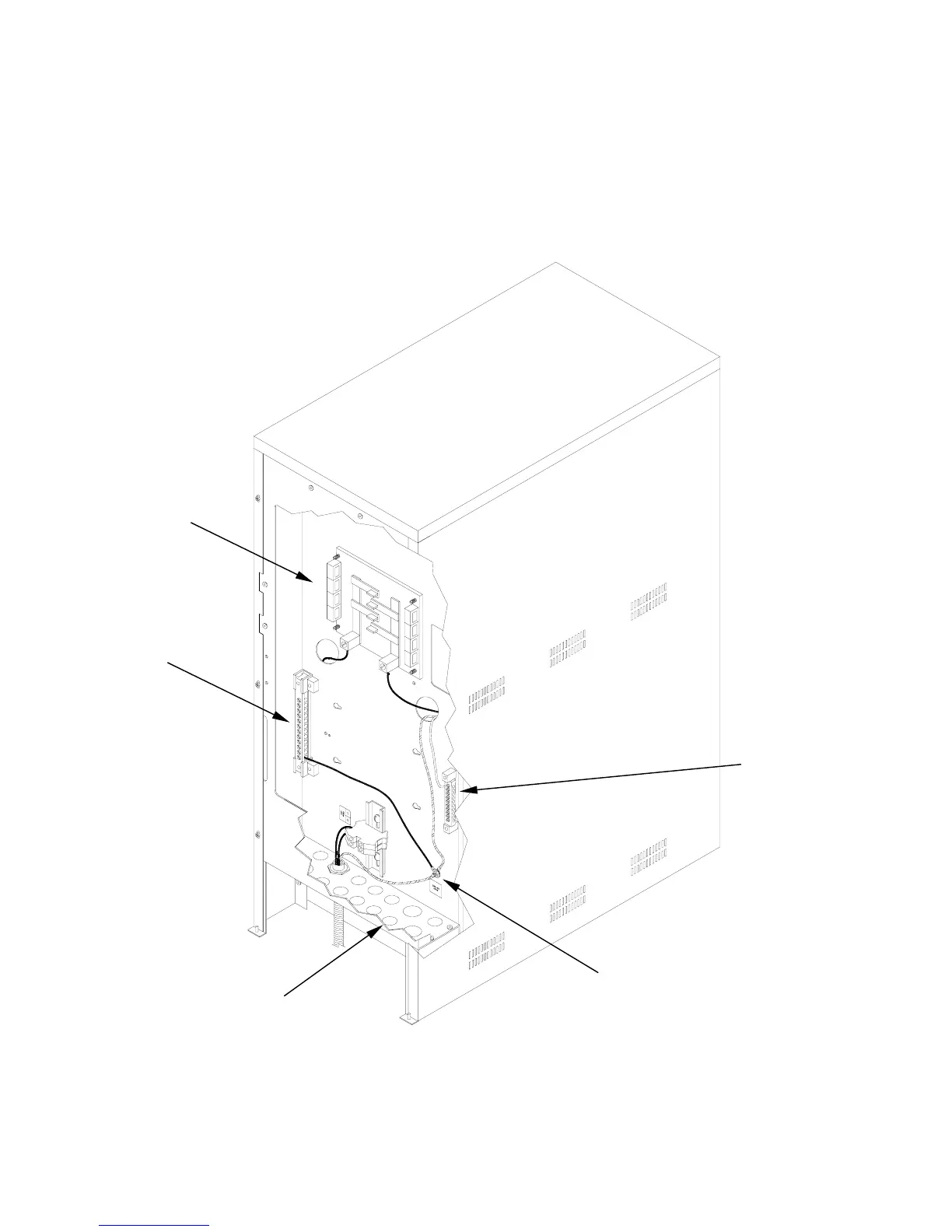

Figure N: Output Cabinet with PDP configuration
(Note: The 8-12kVA units contain 2 PDPs)
23
