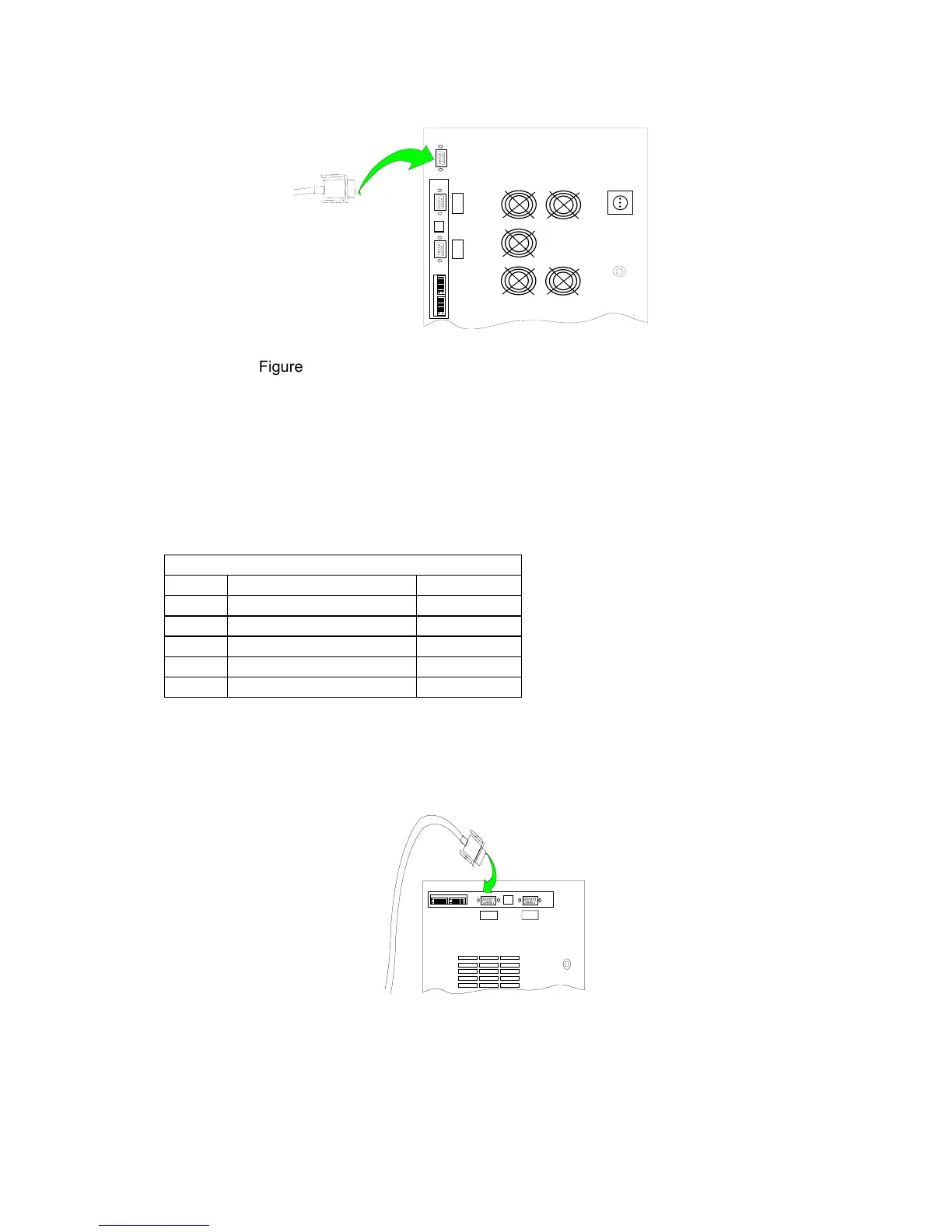

Figure CC: Installation of RS-232 computer interface 14-18kVA
This connection conforms to the EIA RS-232 standard, allows the CHLORIDE UPS-
DIVISION software “EASY PLUS” to be run on any MS-Windows® 3.X or Windows 95®
compatible PC and allows the connection to the “LIFE” remote monitoring system (more
details in Section 4.2: OPTIONS).
The pin out of the connector is as follows:
Table E: Functions of RS232 connector
N° PIN DESCRIPTION FUNCTION
1 Data Carrier Detect DCD
2 Received data RXD
3 Transmitted data TXD
4 Data Terminal Ready DTR
5 Common GND
4.1.3 STATUS CONTACTS
In addition to the RS-232 interface, the Synthesis™ has a contact closure status port as
shown below.
Figure DD: Installation of computer interface 4-12kVA
44
