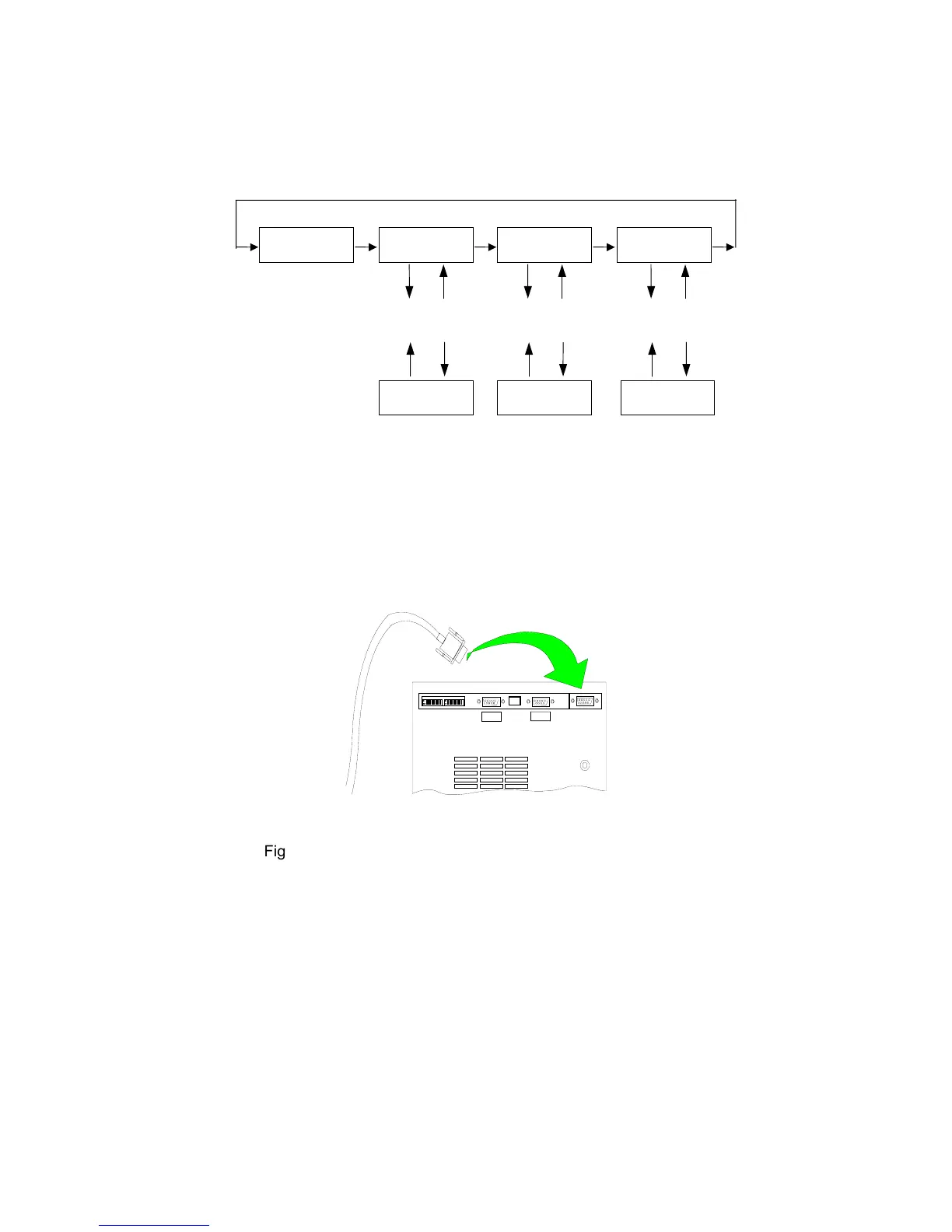

EXAMPLE OF HOW TO ‘MOVE’ WITHIN AN INDIVIDUAL BLOCK
(USING THE ‘UP’, ‘DOWN’ AND ‘RIGHT’ ARROWS)
LIST OF
ALARMS
LIST OF
MEASUREMENTS
ALARM
❊
PAGE
MEASUREMENT
PAGE
STATUS
PAGE
LIST OF
STATUSES
BLOCK
PAGE
❊ If active.
4.1.2 RS-232 INTERFACE
The UPS is equipped with a 9 pin “D”-type connector which makes it possible to connect a
computer to the microprocessor inside the UPS. Note that the proper port to connect to is
the one on the far right. The center port is tied up with the internal display in the standard
product.
Figure BB: Installation of RS-232 computer interface 4-12kVA
43
