Chloride SYNTHESIS - Page 40

The messages are available in 6 languages English, French, German, Italian, Portuguese
and Spanish. Obtaining information is extremely simple; 50 different functional parameters
are available at the push of a button.

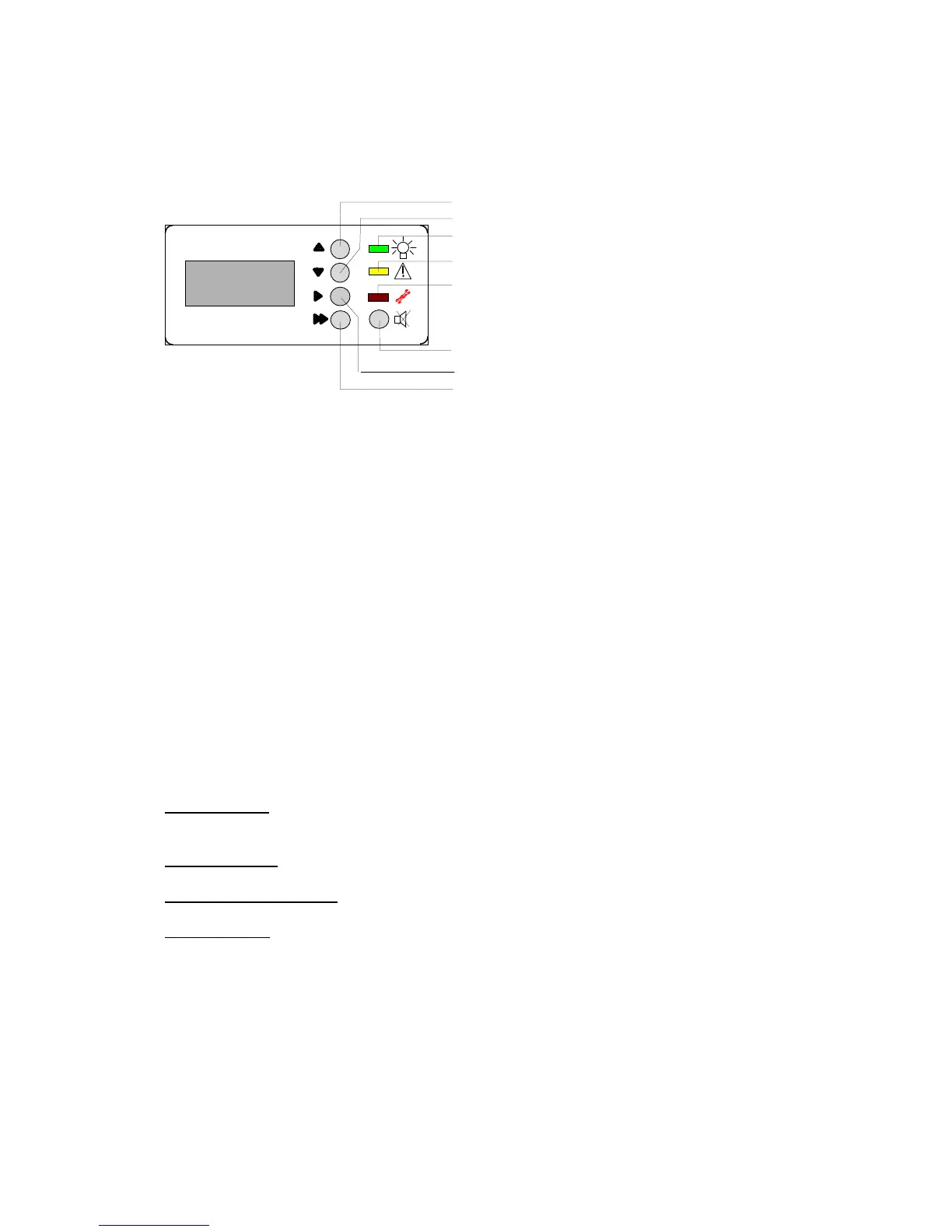

SCROLL UP
SCROLL DOWN
LED
INDICATIONS
SILENCE BUZZER
SCROLL RIGHT
CONFIRM
X X X X X X X X X X X X
X X X X X X X X X X X X
The following displays may be obtained using the scroll buttons:
- Input voltage, current and frequency.
- Boost output voltage
- Battery voltage and current, with polarity
- Battery compartment temperature
- Remaining battery autonomy
- Inverter output voltage, current and frequency.
- % overload.
- Direct line voltage and frequency
- Voltage, current, % load and power factor of UPS output
- Number and duration of mains interruptions
- Time on direct line
- Time on conditioned line
4.1.1.1 MESSAGES AND ALARMS
The diagnostic procedure is divided into BLOCKS, each of which represents a functional
part of the UPS (SYSTEM, INPUT, BATTERY, INVERTER, DIRECT LINE, LOAD). Four
levels of information are available for each block (BLOCK, STATUS, MEASUREMENT
and ALARM PAGES):
BLOCK PAGE:
This page indicates operating condition of selected block. If one or more alarms are
activated or there is an abnormal condition, it will indicate an alarm status.
STATUS PAGE:
This page indicates the current operating state of the selected block.
MEASUREMENT PAGE:
This page displays the measurement values relating to the selected block.
ALARM PAGE:
This page displays any alarms which may be active in the selected block; if no alarms are
active, this page will not be displayed.
