Section 6: Specifications
6.1 Performance
6.1.1 Operating Environment
6.1.2 Input / Output Response Parameters
6.2 Power
Parameter Min. Nom. Max. Unit
Temperature 10 - 35 °C
Humidity (Standard non-condensing) 20 80 %
Altitude 0 3000 Meters
Parameter
Symbol Min. Nom. Max. Unit
Maximum input rate f
MAX
--1Hz
Minimum hold time T
Hmin
10--msec
Maximum latency for input trigger
to output response
T
LAT
--50msec
Adjustable pulsed output T
on
20 - 1000 msec
Tolerance on pulsed output T
tol
-2-msec
Parameter
Symbol Min. Nom. Max. Unit
Input AC voltage V
ac
85 264 V
Input frequency f
ac
47 63 Hz
Hold-up time T
hold-up
20 msec
Input current I
in
1A
Output voltage 12V (2 W) V
U1
11 12 13 V
Reset-able fuse rating (continuous) I
OVL1
--0.2A
Parameter Symbol Min. Nom. Max. Unit
Output voltage 12V (2 W) V
U2
11 12 13 V
Reset-able fuse rating (continuous) I
OVL2
0.2 A
Output voltage 5V (2 W) V
U3
4.5 5 5.5 V
Reset-able fuse rating (continuous) I
OVL3
--0.5A
Output voltage 5V (2 W) V
U4
4.5 5 5.5 V
Reset-able fuse rating (continuous) I
OVL4
0.5 A
Power isolation voltage V
iso
1000 V
Wire size accept - Clip terminals Gauge 28 - 16 AWG

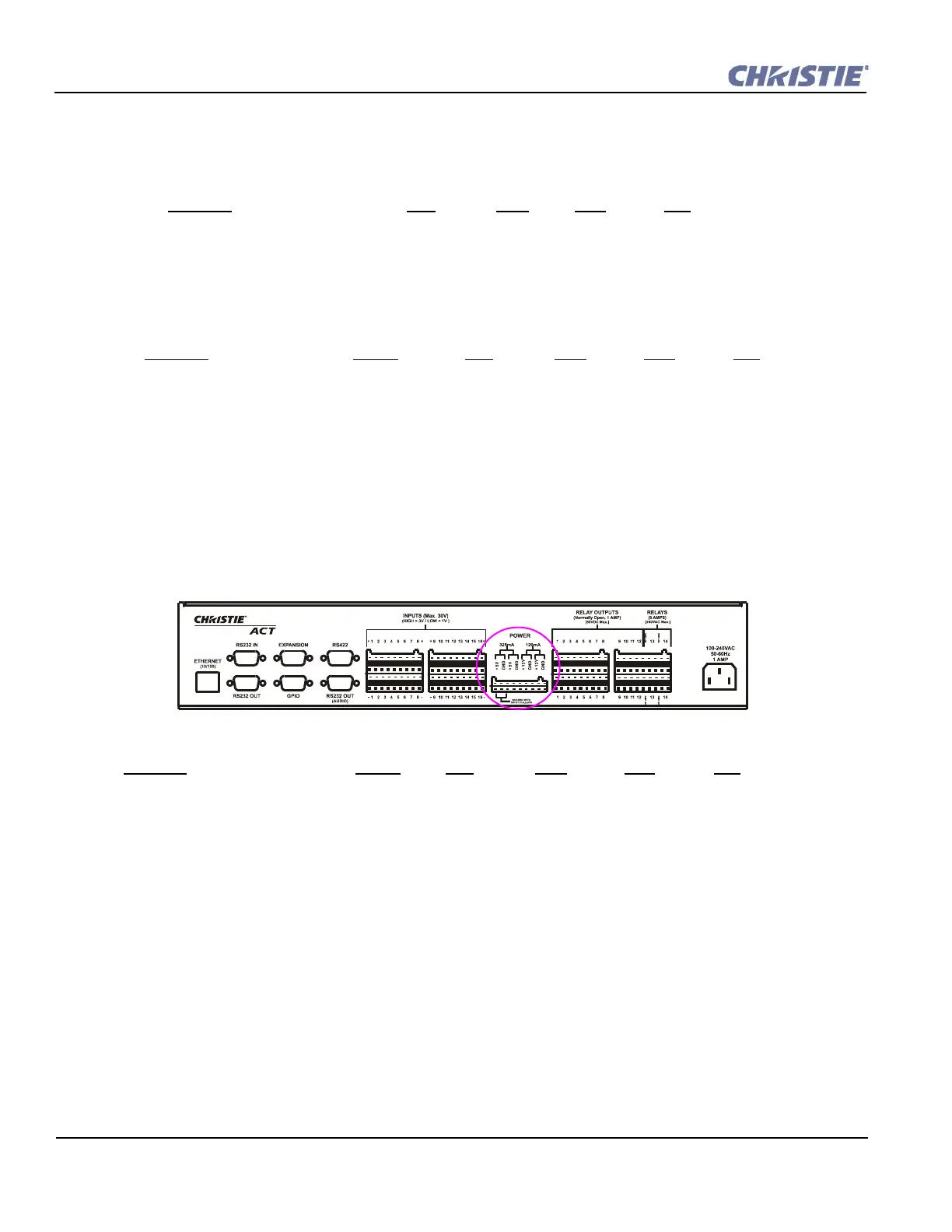

Figure 6-1 Power Outputs
