6-4 Christie ACT User Manual
020-100129-05 Rev. 1 (02-2010)
Section 6: Specifications
6.4 Physical I/O Connectors
NOTE: Screw type connectors are available.
6.5 Buzzer
6.6 USB
USB Full-Speed (12 MBPS)
The USB is located on the front panel of Christie ACT and is a deferred feature.
6.7 GPIO
Parameter Value
Type Pluggable lever terminal
Current rating Varies depending on connection
Voltage rating 300V
Wire size 16-28 AGW
Parameter
Value
Type Piezo
Sound pressure level @ 30cm/12VDC Min. 85 dB
Pin Direction Description Signal Name
1 In Power Vbus
2 I/O Data - D-
3 I/O Data + D+
4 - Ground GND

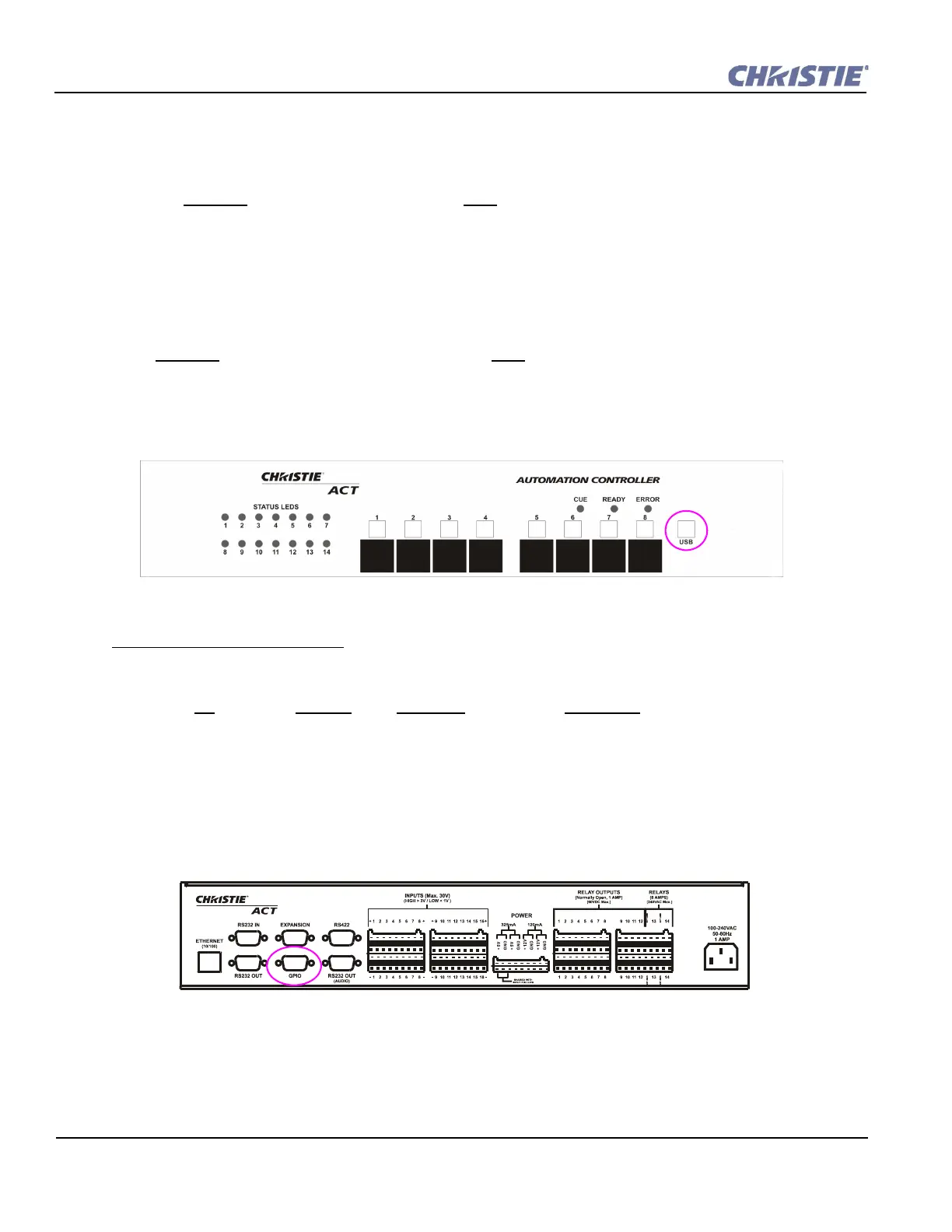

Figure 6-4 USB
Figure 6-5 GPIO
