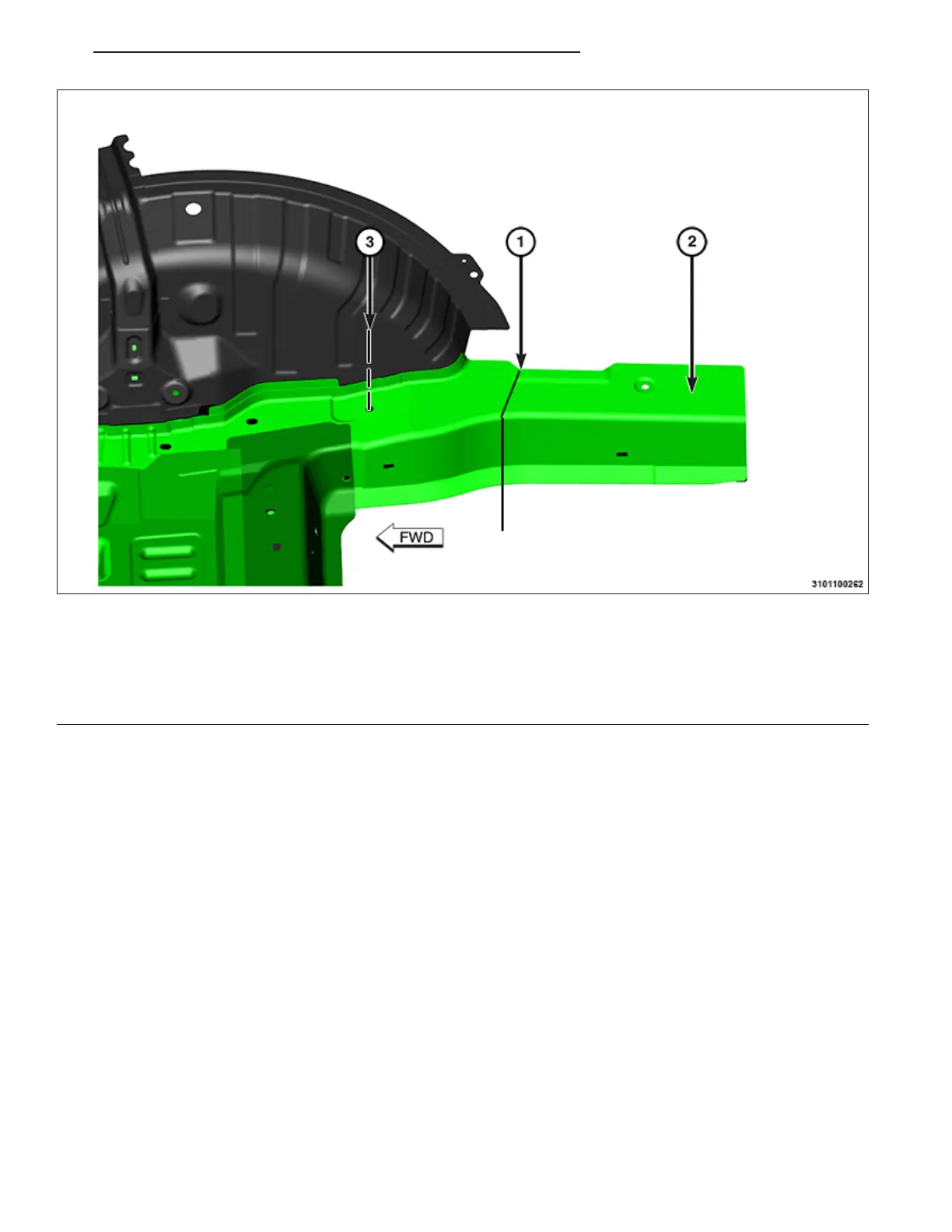

NOTE: Right side shown, left side similar.
1 - Rear Rail Cut Line
2 - Rear Rail (590 MPa)
3 - Third Row Seat Belt Anchor Bolt Hole
CAUTION: To prevent damage to the Inner Reinforcement , extreme care must be taken while cutting the
rail.
NOTE: It will be necessary to order the complete rear rail and create the sectioning portions at the same
cut lines.
The rear rail (2) sectioning cut line (1) is located 231 mm (9 in.) rearward of the center of the 3rd row seat belt
anchor fastener hole (3).
NOTE: To prevent warping, apply 25 mm. (1 in.) stitch welds until the sectioning joint is completely
welded.
A butt-joint with a 13 mm (0.5 in) weld backer is to be used.
RU 31 - Collision Information 31 - 51
