Ciara Enterprise/Discovery 945GTP
- 60 -

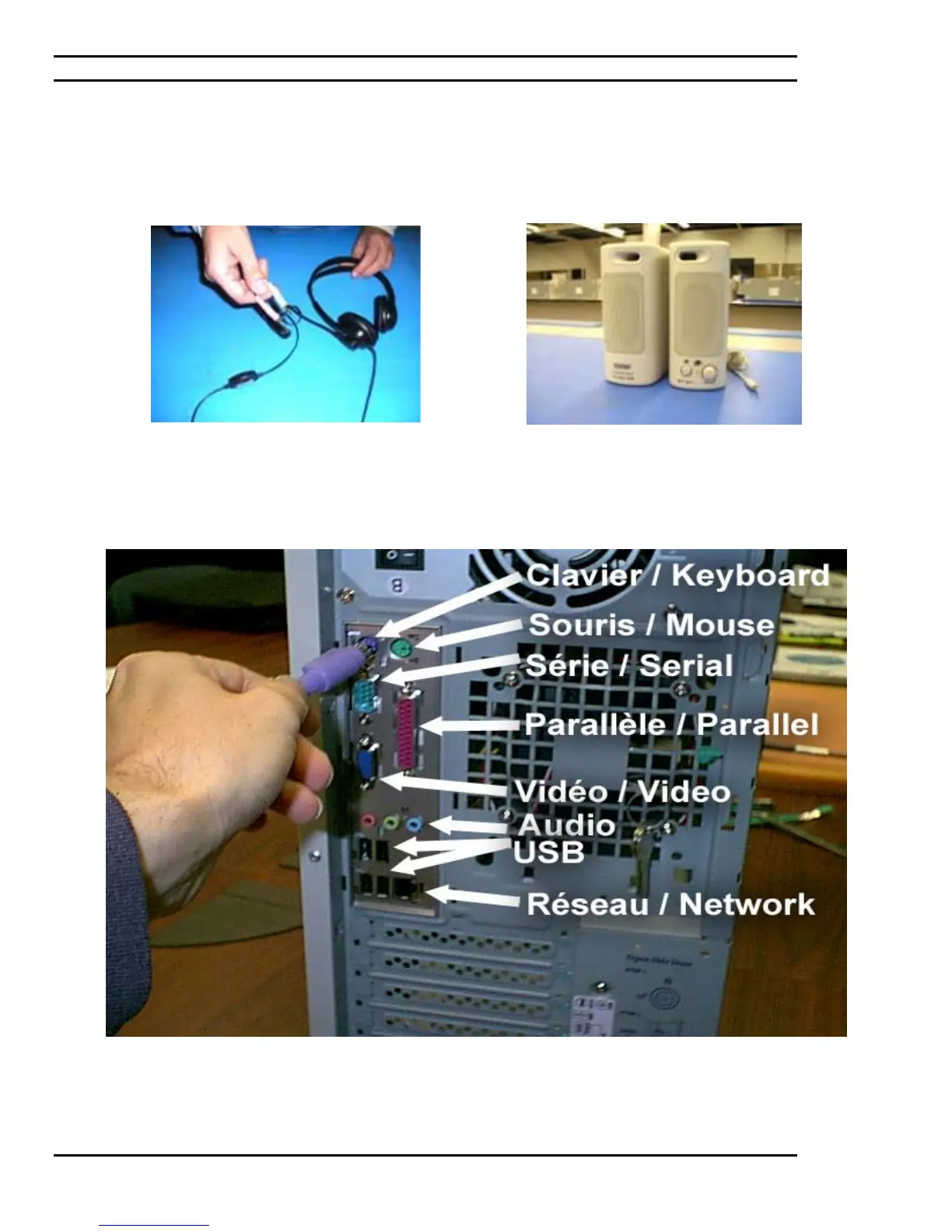

7.15: Connecting the headset and speakers to the back of the chassis
The headset in question, a combination microphone
and headphone set.
Typical audio speakers, pictured here.
Connecting cables in their designated areas (audio: green for sound and pink for microphone)
