7.16: Installation of the memory modules
ATTENTION: Components such as memory may be permanently damaged by shocks arising from static
electricity. It is hence important to wear an antistatic bracelet during the installation process.

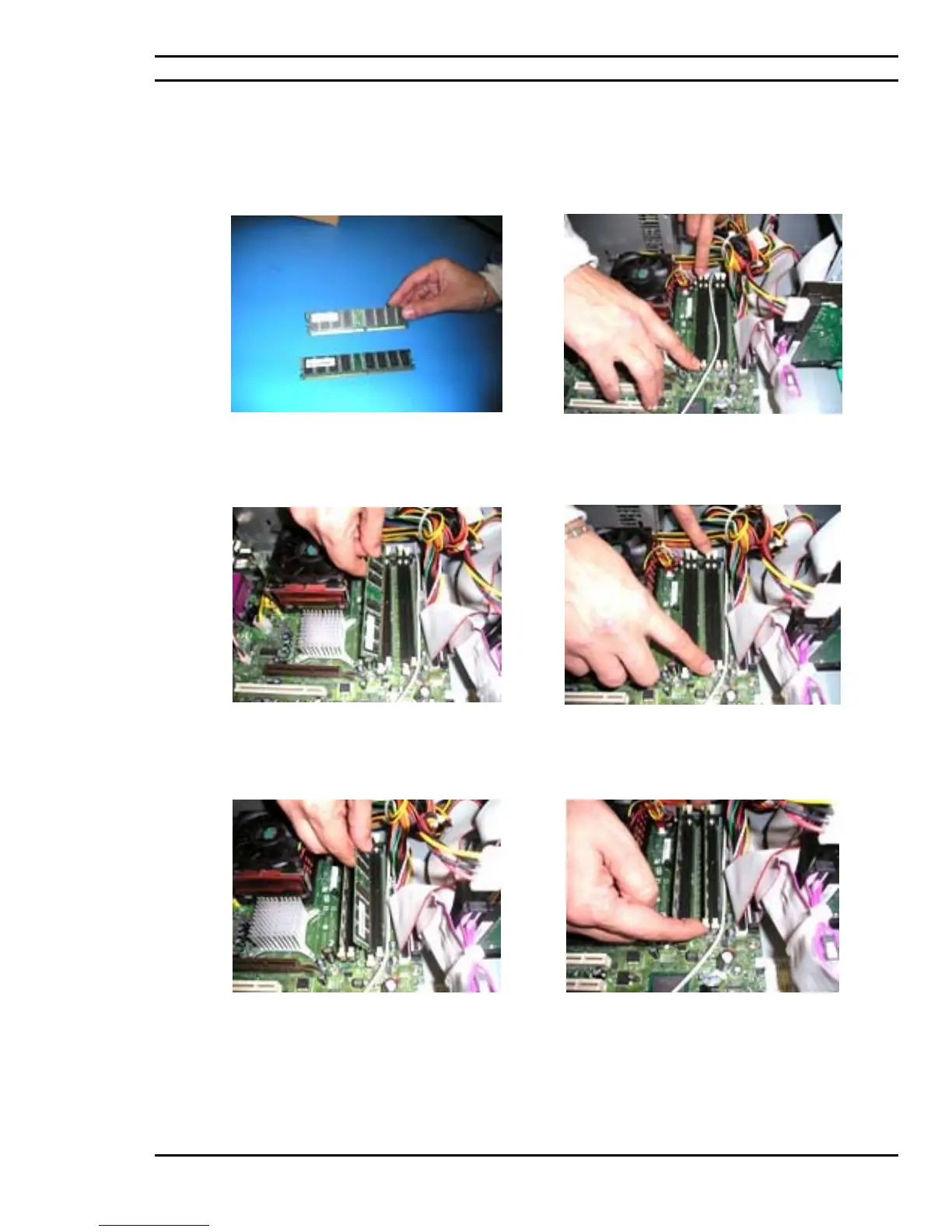

Memory modules, DDR2 256Mb PC400 Non
ECC, quantity of two in this case.
The opening of bank number 0 of Channel A
associated with the installing of the dual memory
modules in different banks.
The installing of one memory module in bank
number 0 of Channel A of the motherboard in
question.
The opening of bank number 0 of Channel B and
its memory slot.
The installing of the second memory module in
bank number 0 of Channel B of the motherboard.
Memory module area of the motherboard with
dual memory installed in both channels of the
motherboard.
Please report yourself to Section 4.5 for the various memory configurations available.
