DSB75 Development Support Board Rev. B1 Hardware Description
Confidential / Released

DSB75_hd_v12 Page 25 of 96 2008-08-26
3.2 Test Points
All module pins at the B2B connector X100 are connected 1:1 to the pin headers X101,
X102. They may be used for connecting measurement equipment, customized host
interfaces or as access points to GPIOs, DAC, ADCs, audio lines, etc.
X100
X101
X102
39
40
1
2
39
40
1
2
1
40
41
80
1
80
40
41

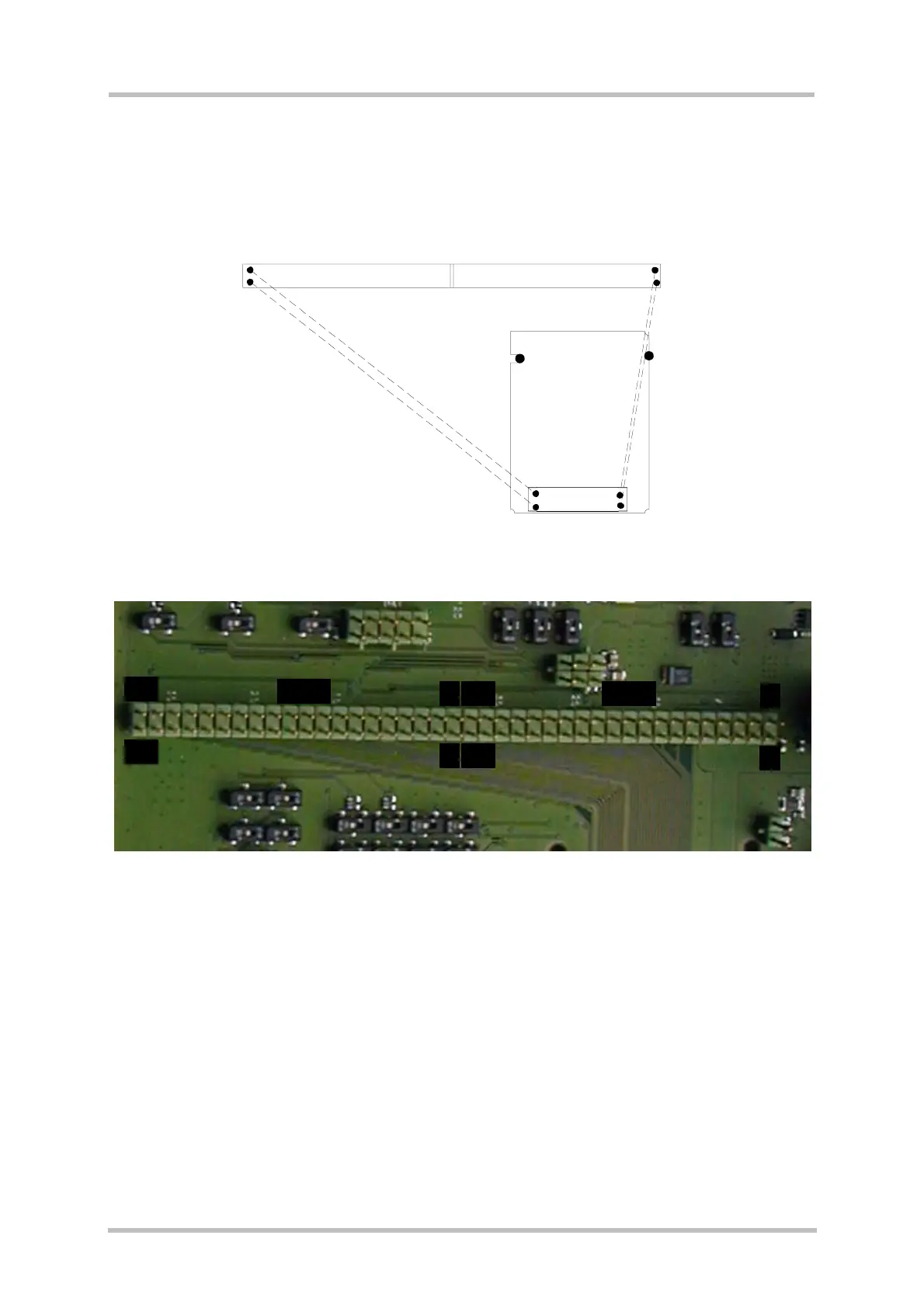

Figure 5: Overview of B2B connector pins and the corresponding test points
1
2
1
2
X102
X101
40
40
39
39
Figure 6: Location of the test points
