107
Update

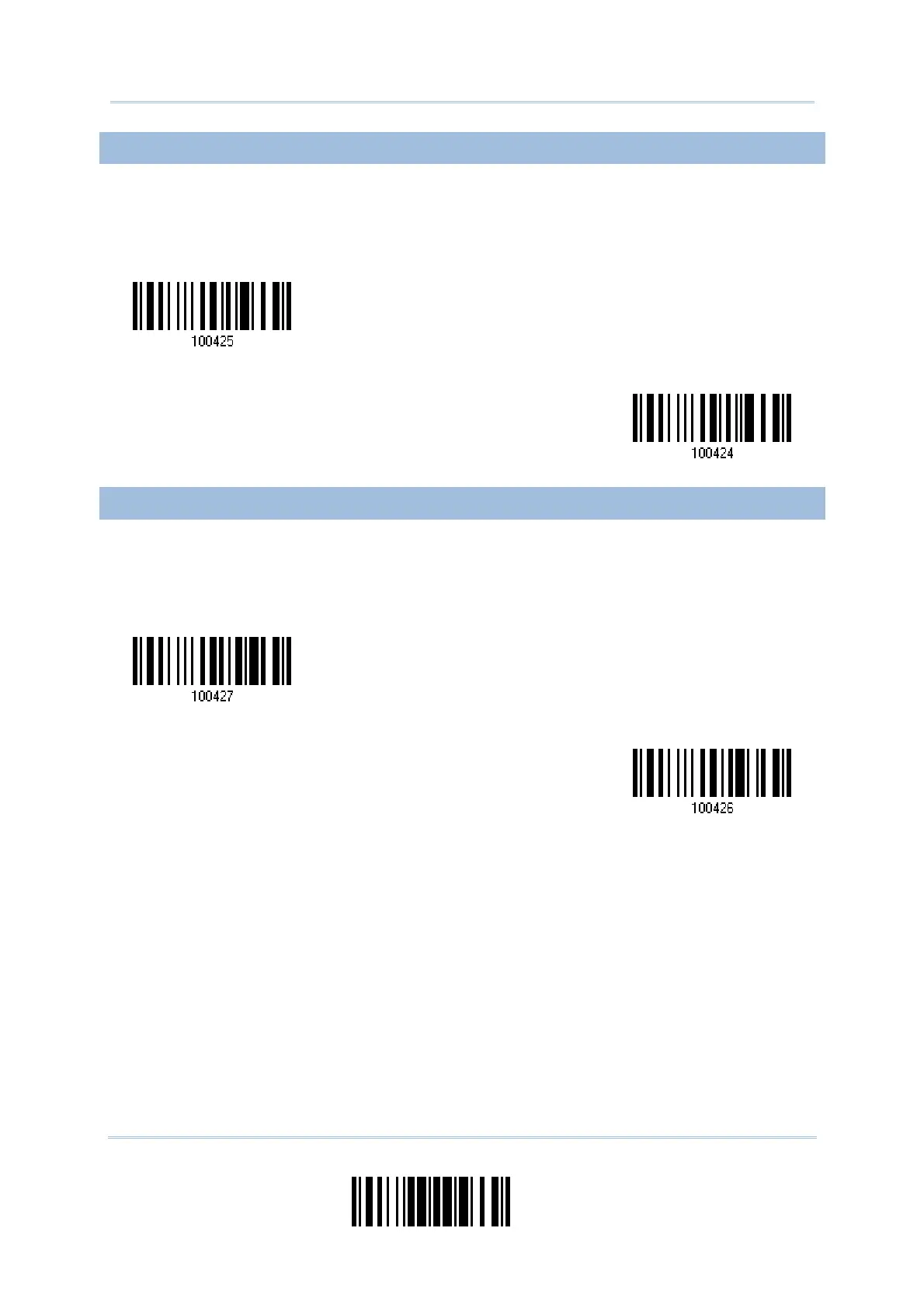

Chapter 4
Changing Symbology Settings
4.2.2 VERIFY CHECK DIGIT
Decide whether t
o verify the check digit. If in
correct, the barcode will n
ot be accepted.
4.2.3 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
Verify Industrial 25
Check Di
g
it
*Transmit Industrial
25 Check Di
g
it
D
o Not Transmit
*
Do Not Verify
118
120
