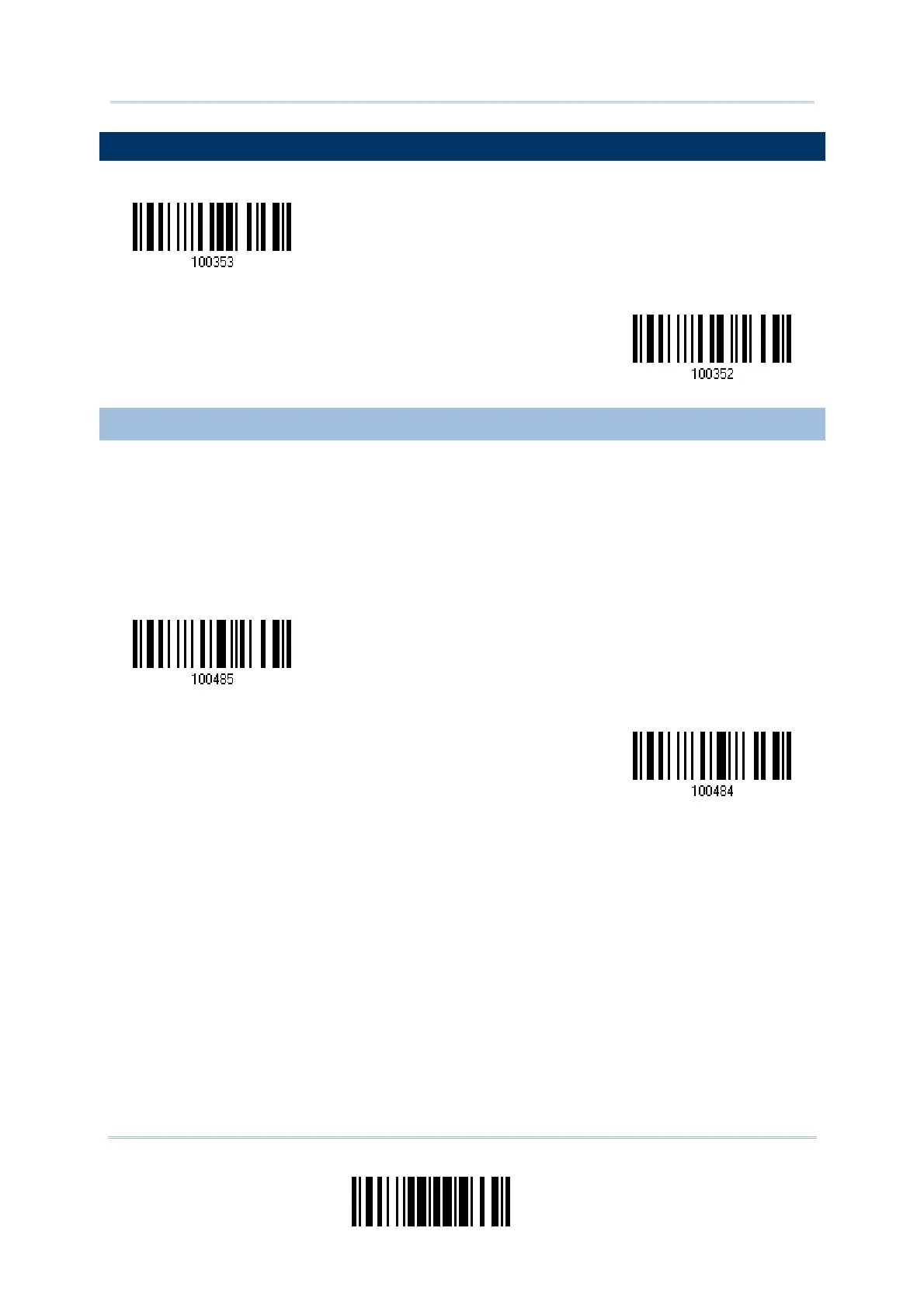

Chapter 4
Changing Symbology Settings
4.17 TELEPEN
4.17.1 TELEPEN OUTPUT – FULL ASCII/NUMERIC
Decide wheth
er to support T
elepen in fu
ll
ASCII code. By default, it supports ASCII
mode.
AIM Telepen (Full ASCII) in
cludes all the alphanumeric and special ch
aracters.
Enable Telepen
*
Disable Telepen
Original
Telepen
(Numeric)
*
AIM Telepen
146
148
Table of Contents
