End Programming Format
1560 Series Barcode Scanner User Guide
Additional Fields

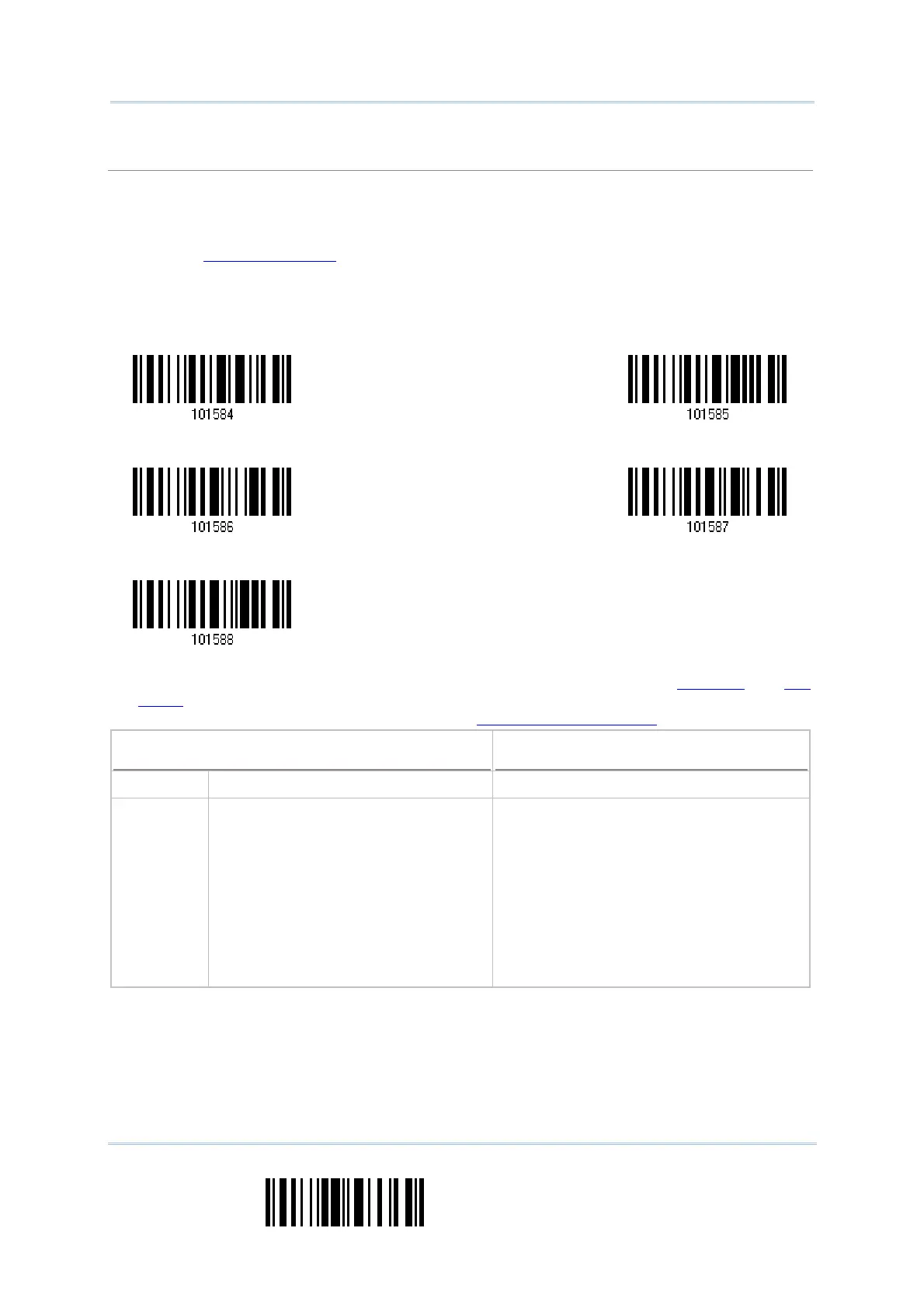

Up to five additional fields can be created for each editing format; each of them is numbered from
AF1 to AF5 accordingly.
1. Read the label below to specify an additional field, one at a time.
2. Read the “
Hexadecimal Value” label on page 206 for the desired additional field.
3. Read the “Validate” label to complete this setting.
If “BT HID”, “USB HID” or “Keyboard Wedge” is configured for interface, Key Type and Key
Status will then become applicable. You may decide whether or not to apply Key Status when
“Normal Key” is selected for Key Type. Refer to
Keyboard Wedge Table.
Key Type Key Status
Scan Code Up to 2 scan code values are allowed. N/A
Normal Key
Up to 4 character strings are allowed.
Default setting
Add Shift
Add Left Ctrl
Add Left Alt
Add Right Ctrl
Add Right Alt
Add Break
For example, read labels for [Add Shift],
[A], [Add Shift], and [B].
Additional Field 1 …
dditional Field 2 …
dditional Field 4 …
Additional Field 5 …
Additional Field 3 …
To Next Page
