Enter Setup
1560 Series Barcode Scanner User Guide

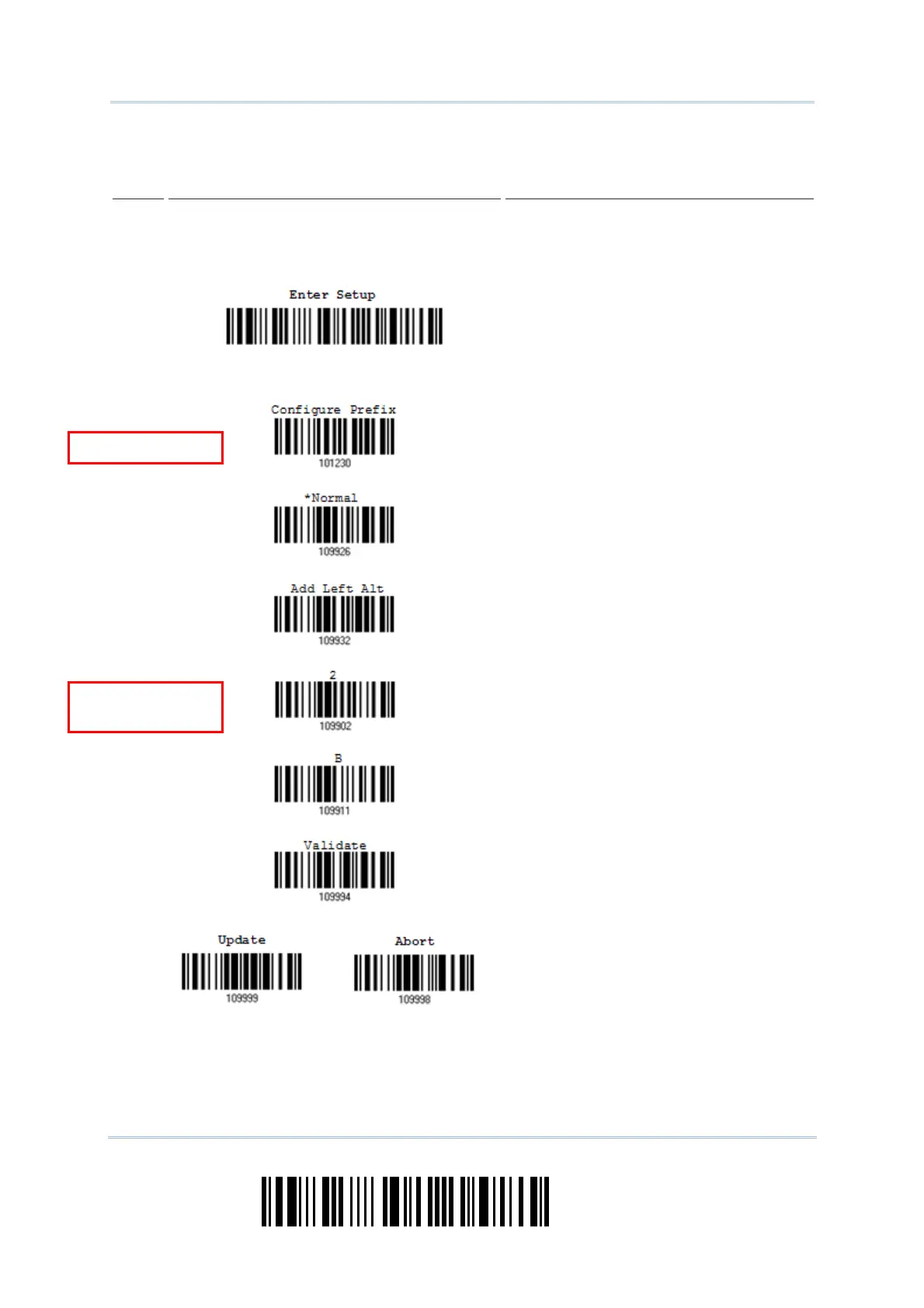

The example below shows how to set string parameters:
Steps
Action User Feedback if Successful
1 Power on the scanner...
T
he scanner will respond with a long beep
(high tone) and its LED indicator will
become solid red and go off quickly.
2 Enter the Configuration Mode…
T
he scanner will respond with six beeps
(high-low tone repeats three times), and
its LED indicator will become flashing red.
Read a Setup label...
For example,
T
he scanner will respond with one short
beep if reading a special label such as
“
Prefix Code”, indicating the setup
requires reading more labels.
When “BT HID”, “USB HID” or “Keyboard
Wedge” is configured for interface, Key
T
ype and Key Status will then become
applicable. You may decide whether or not
to change key status when “Normal Key”
is selected for Key Type.
 Refer to Appendix III
3
Read the “Hexadecimal Value” labels for
the desired character string. For example,
read “2” and “B” for the scanner to prefix
the character “+”.
 Refer to Appendix IV “Hexadecimal
System”
T
he scanner will respond with two beeps
(low-high tone) when the input values are
validated.
4 Exit the Configuration Mode…
OR
Same as for Enter the Configuration Mode.
5 The scanner will automatically restart itself… Same as for Power on the scanner.
S
p
ecial label
Hexadecimal
labels
