Chapter 1
Using mobile computer
4)
Connect the charging &
comm
unication cable if data
connection is required.
Note:
(1) Tighten the two screw-in
connectors to secure the
cable.
(2) As the mobile computer w
ill be charged via cradle, the power receptacle on th
e
charging & communication
cable is inefficacious.

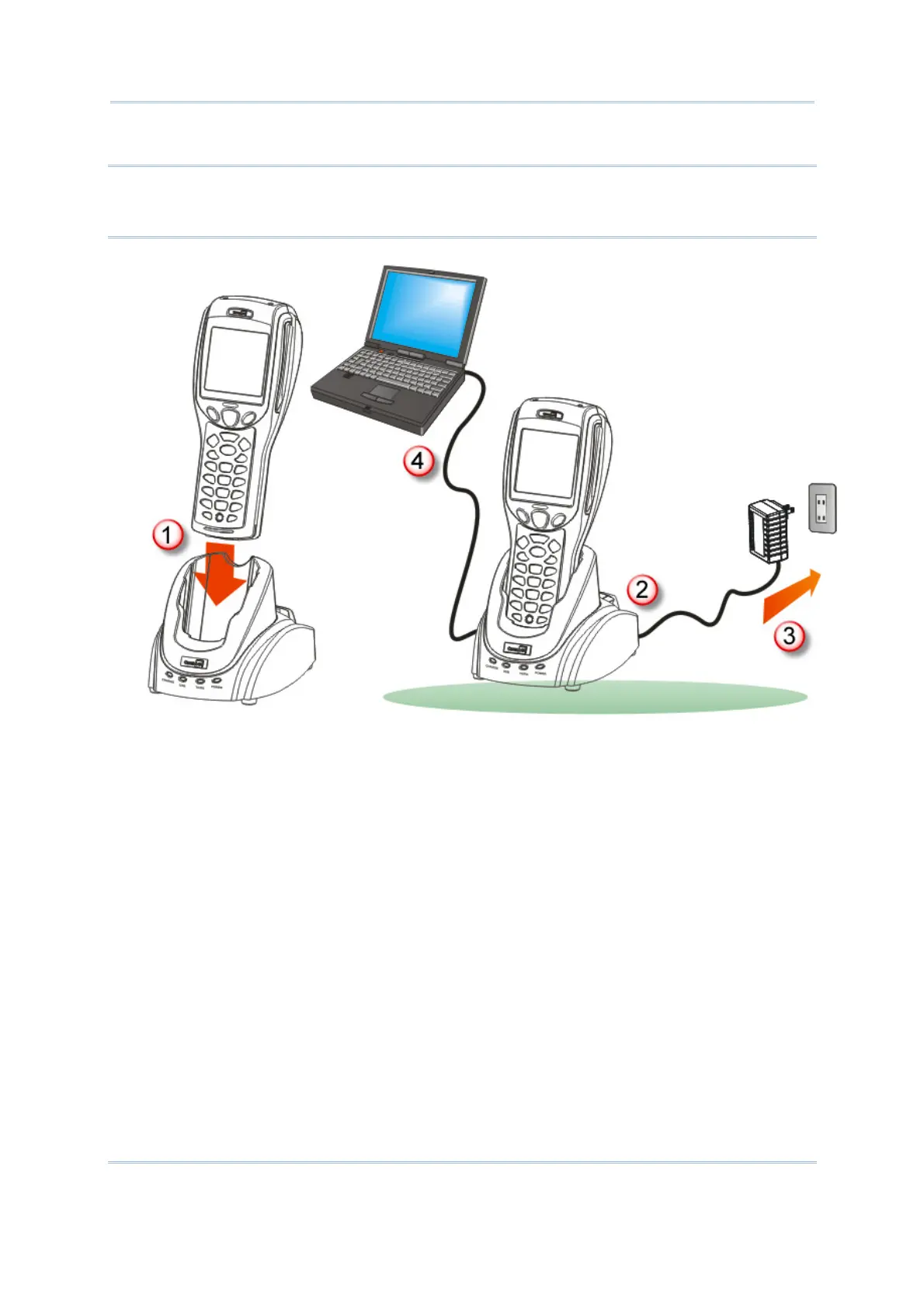

Figure 7: Setting
up cradle
42
