2. Adapters
Interchangeable adapter cards connect your cables to the Easy-Touch Pro tester. Cirris adapters are designed to mate with
many industry-standard connectors.
2.1 Adapter Types
Each Cirris adapter has a part number. Use this part number when referring to the adapter for ordering or troubleshooting.
The Cirris adapter types are listed below:
● Standard Adapters: Standard adapters can be used for testing up to 1000 VDC and 700 VAC. These adapters are
identied by a part number starting with the uppercase letter “A.” Standard adapters are labeled by the connector
they mate to on the device-under-test (e.g. AHED-26 mates to: 26 POS. 1” FEM).
● High Voltage Adapters: These adapters can be used for testing up to 1500 VDC and 1000 VAC. High Voltage adapter
part numbers begin with the uppercase letter “H” (e.g. HHED-26). For more information on which standard adapters
are available in high voltage, visit www.cirris.com or call 1-800-441-9910.
● Custom Adapters: These are limited-production adapters designed for unique connectors. These adapters are
identied by a part number starting with a combination of two uppercase letters “A” followed by 5 numbers in the
following format: AA<xx>-<nnn>, where <xx> is the number of pins (e.g. AA10-345, AB10-345, AC10-123).
● Replaceable Adapters: These adapters allow you to replace worn adapter connectors with new ones. Replaceable
adapter part numbers begin with an uppercase letter “R” (e.g. RHED-26).
2.2 Adapter Positions

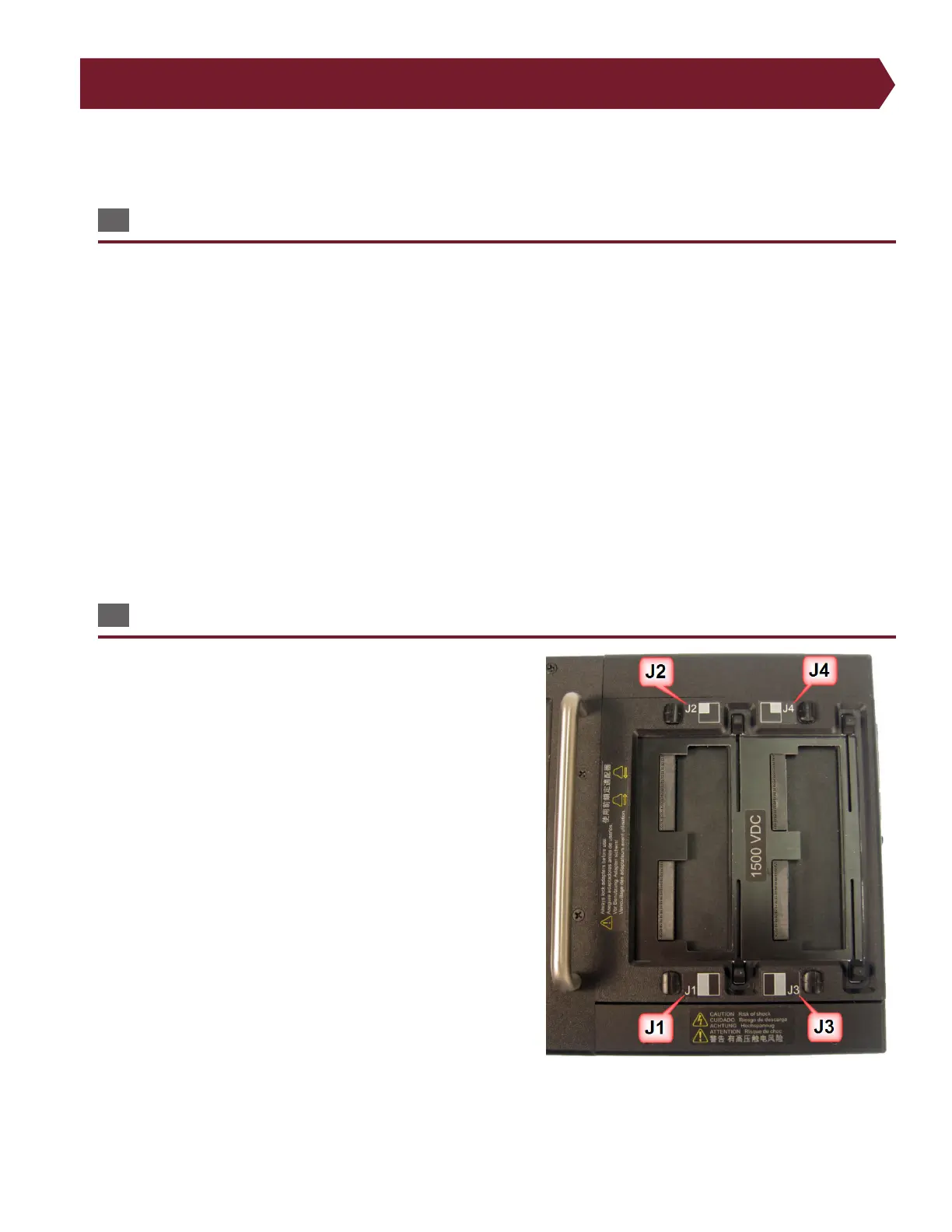

The Easy-Touch Pro tester has four adapter positions: J1, J2, J3, and
J4. Each add-on scanner provides four more adapter positions up to
a maximum of 32 positions. Note the J1, J2, J3, and J4 labels on the
Easy-Touch Pro cover plate in the image below.
