2.3 Adapter Sizes
Cirris adapters come in three sizes: Single-high, Double-high, and Quad-high.
● Single-high Adapters: These adapters support up to 28 test
points and consume 32 test points. Single-high adapters can

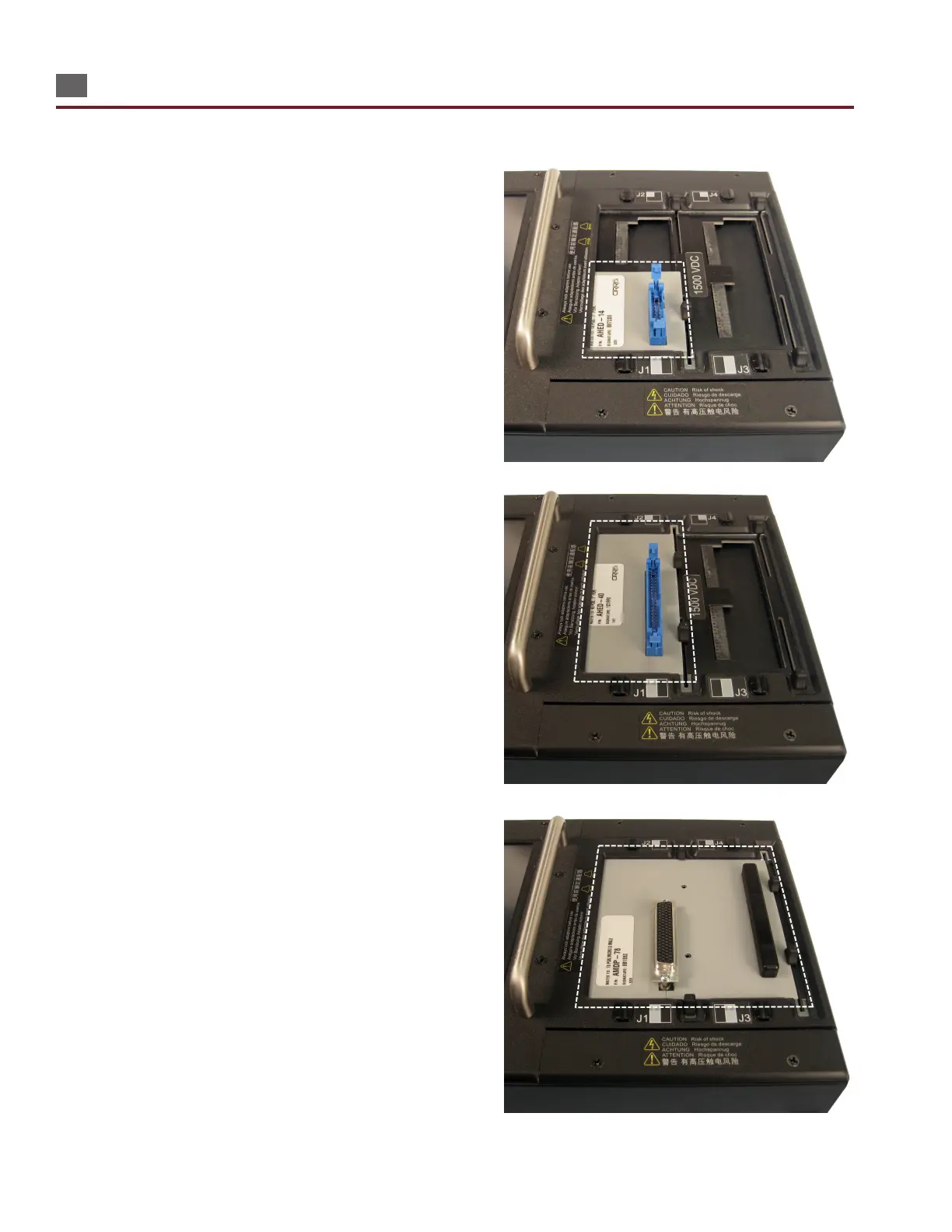

occupy any of the four “J” positions. The image below shows a
Single-high adapter in position J1 (positions J2, J3, and J4 are
still available).
● Double-high Adapters: These adapters support up to 64 test
points and consume 64 test points. Double-high adapters
can occupy the J1 and J3 positions. The image below shows
a Double-high adapter in position J1 (positions J3 and J4 are
still available).
● Quad-high Adapters: These adapters support up to 120 test
points and consume 128 test points. Quad-high adapters can
only occupy position J1. The image below shows a Quad-high
adapter in position J1 (no other positions are available).
