Section 1 Cirrus Design
General SR20

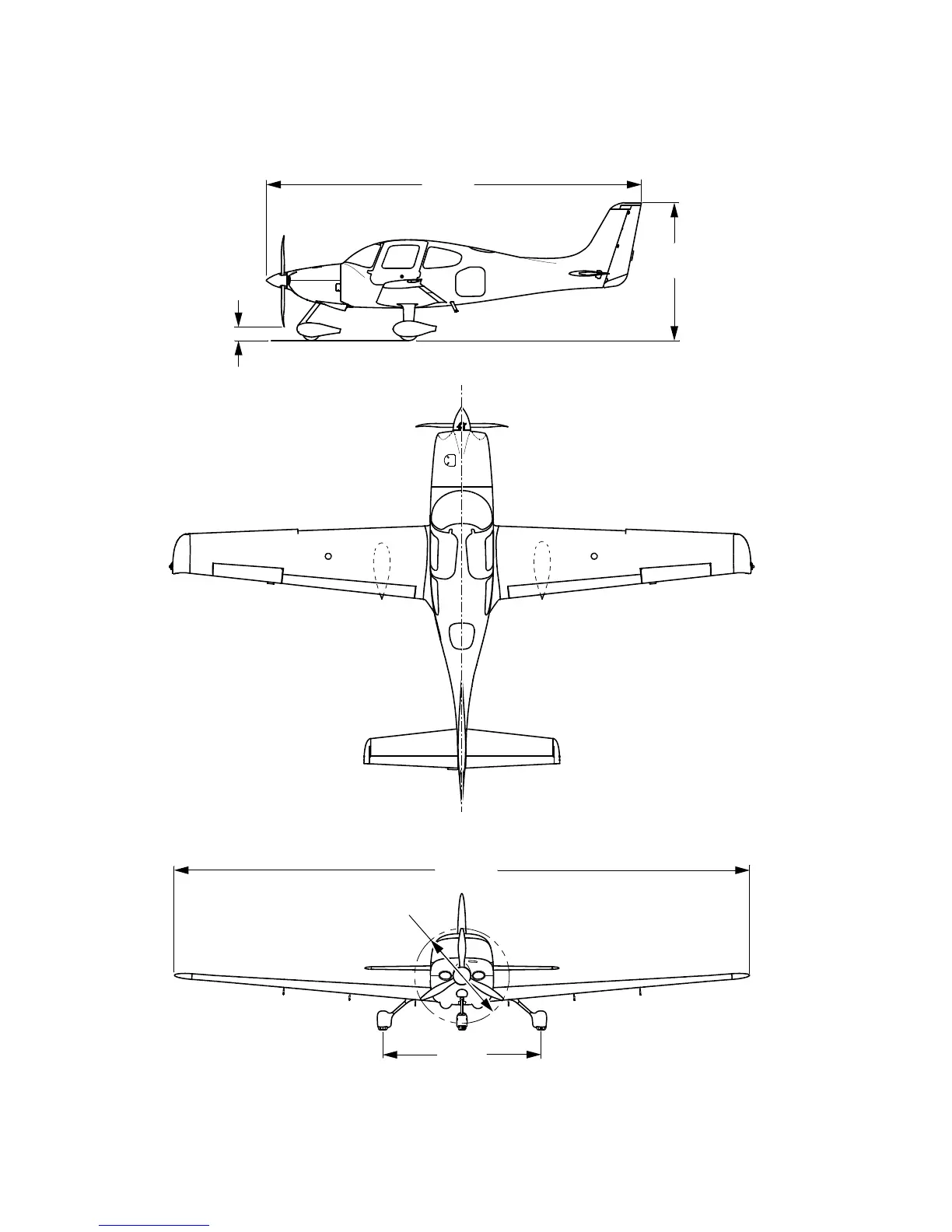

Figure 1-1
Airplane Three View
74 inches 3-BLADE
188 cm
38.3 ft
11.67 m
9.1 ft
2.8 m
9 inches (minimum)
23 cm (minimum)
26.0 ft
7.92 m
8.9 ft
2.71 m
NOTE:
• Wing span includes
position and strobe lights.
• Prop ground clearance at
3050 lb - 9 inches (23 cm).
• Wing Area = 144.9 sq. ft.
