Cirrus DESIGN SR20 User Manual

6-10 P/N 11934-004
Section 6 Cirrus Design
Weight and Balance Data SR20
Loading Data
Use the following chart or table to determine the moment/1000 for fuel
and payload items to complete the Loading Form.
Weight
LB
Fwd
Pass
FS 143.5
Aft
Pass
FS 180.0
Baggage
FS 208.0
Fuel
FS 153.8
Weight
LB
Fwd
Pass
FS 143.5
Aft
Pass
FS 180.0
Fuel
FS 153.8
20 2.87 3.60 4.16 3.10 220 31.57 39.60 34.08
40 5.74 7.20 8.32 6.20 240 34.44 43.20 37.18
60 8.61 10.80 12.48 9.29 260 37.31 46.80 40.27
80 11.48 14.40 16.64 12.39 280 40.18 50.40 43.37
100 14.35 18.00 20.80 15.49 300 43.05 54.00 46.47
120 17.22 21.60 24.96 18.59 320 45.92 57.60 49.57
140 20.09 25.20 (27.04)* 21.69 336** 48.79 61.20 52.05
160 22.96 28.80
24.78 360 51.66 64.80
180 25.83 32.40 27.88 380 54.53 68.40
200 28.70 36.00 30.98 400 57.40 72.00
Figure 6-4
SR20_FM06_3029
Fwd Pass
Fuel
Aft Pass
Baggage
0
100
200
300
400
500
600
0.0 20.0 40.0 60.0 80.0
Moment/1000
Weight - Pounds

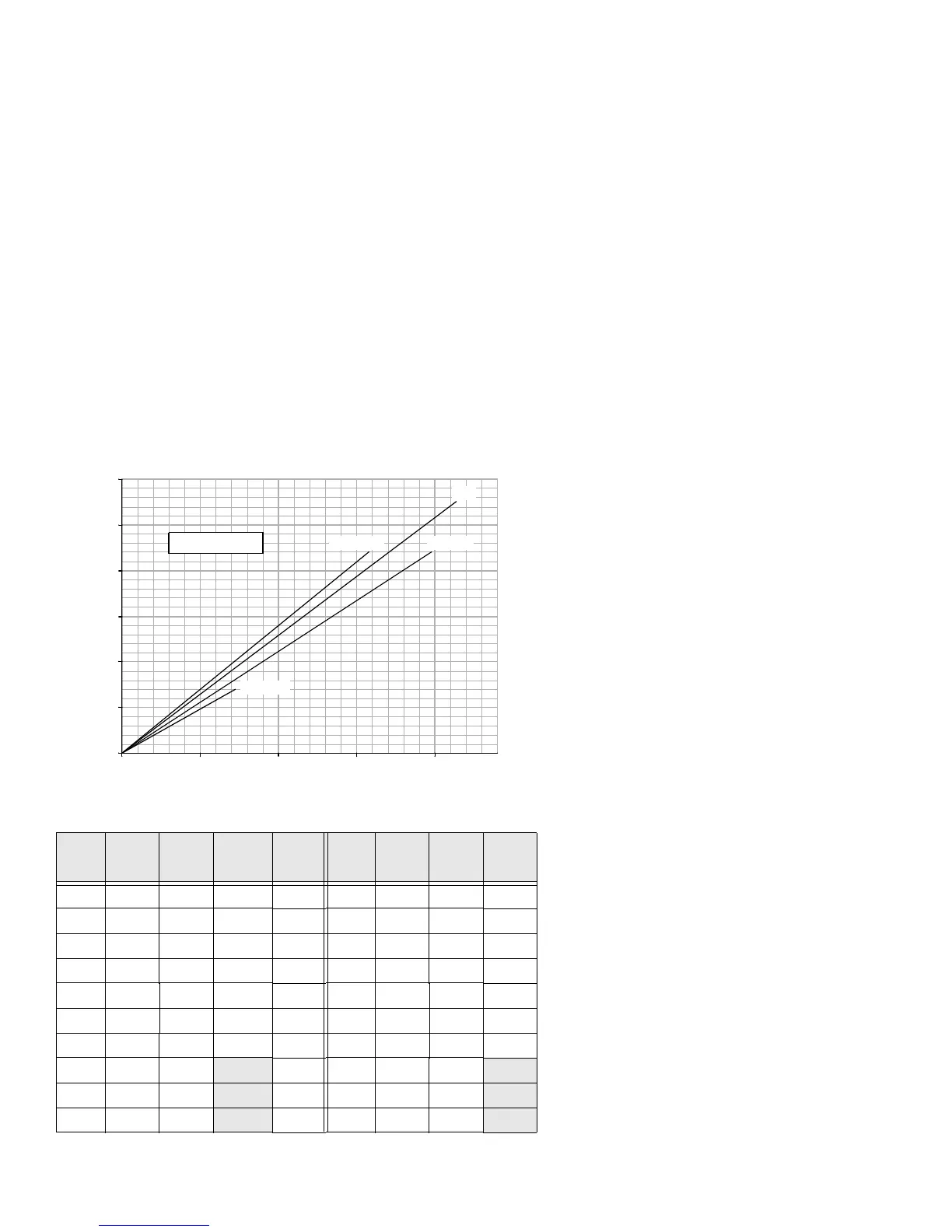

Loading Chart
Original Issue
