Cirrus DESIGN SR20 User Manual

1-6 P/N 11934-004
Section 1 Cirrus Design
General SR20

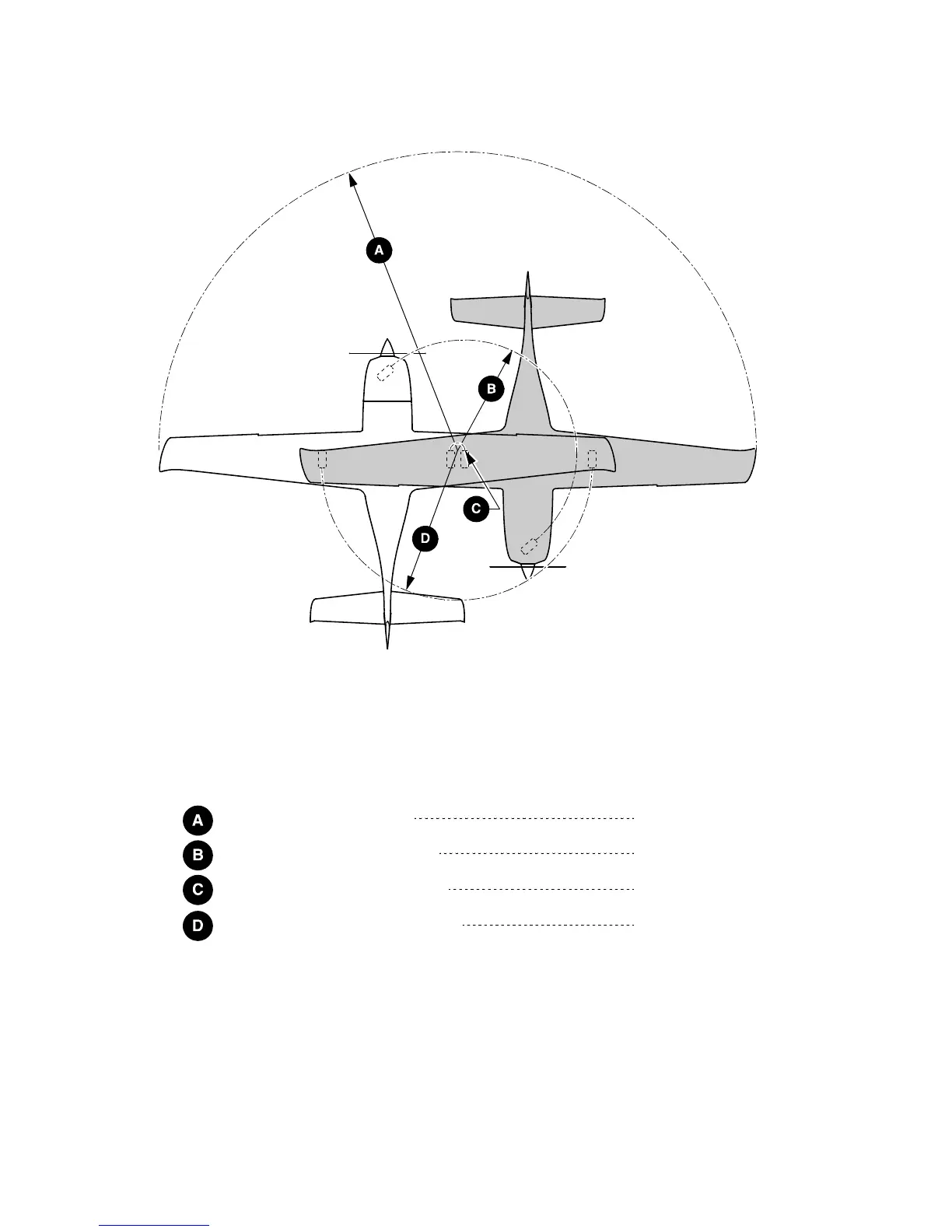

Figure 1-3
Turning Radius
9.1 ft. (2.77 m)
0.5 ft. (0.15 m)
24.3 ft. (7.41 m)
7.0 ft. (2.16 m)
RADIUS FOR NOSE GEAR
RADIUS FOR OUTSIDE GEAR
RADIUS FOR INSIDE GEAR
RADIUS FOR WING TIP
TURNING RADII ARE CALCULATED USING ONE BRAKE AND
PARTIAL POWER. ACTUAL TURNING RADIUS MAY VARY AS
MUCH AS THREE FEET.
GROUND TURNING CLEARANCE
SR20_FM01_2413
