Cirrus DESIGN SR20 User Manual

7-76 P/N 11934-004
Section 7 Cirrus Design
Airplane and Systems Description SR20

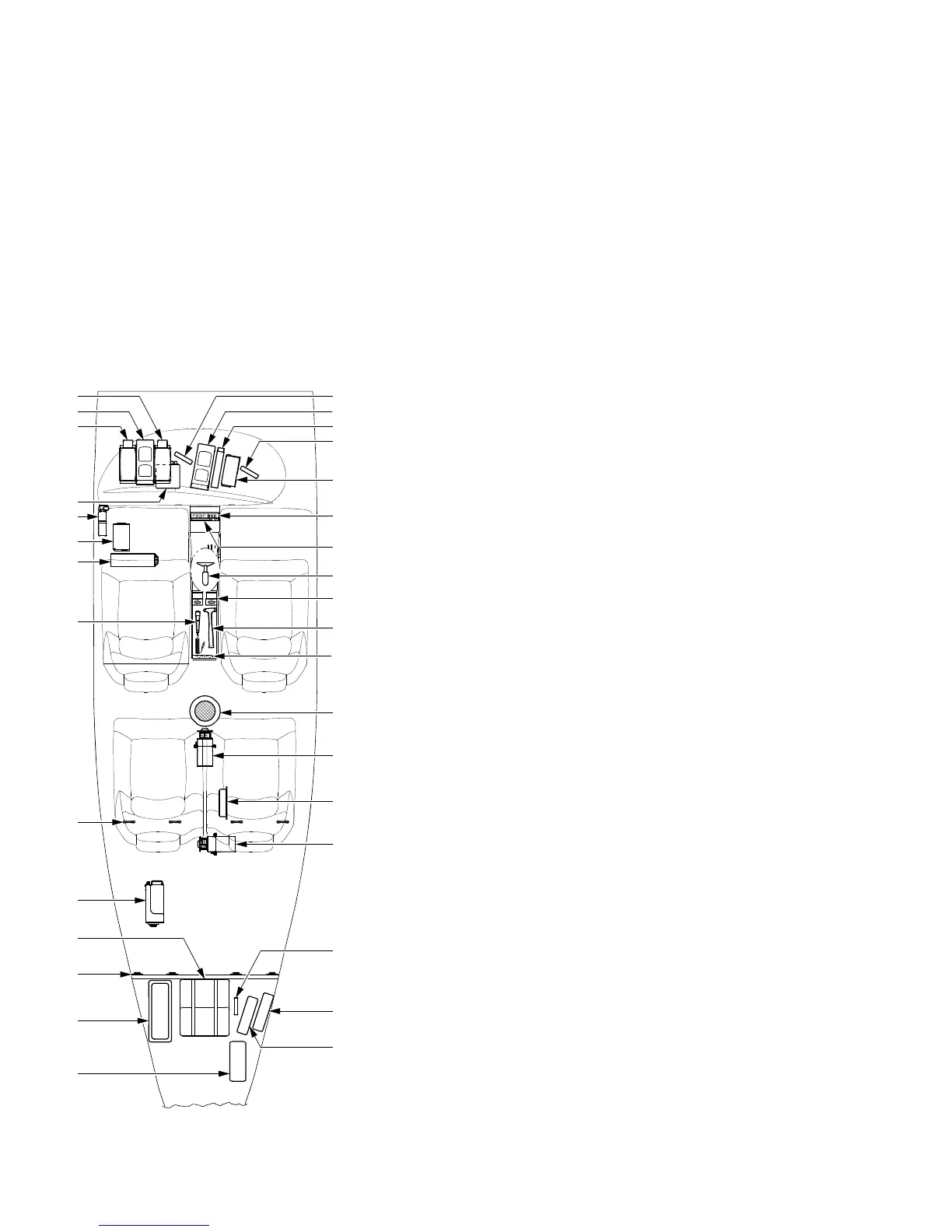

Figure 7-16
Equipment Locations
15
17
16
6
5
4
28
SR20_FM07_3011
LEGEND
1. AHRS 1
2. Integrated
Avionics Unit 1
3. AHRS 2
4. Avionics Cooling Fan
5. Integrated
Avionics Unit 2
6. Engine Airframe Unit
7. Air Data Computer
8. GFC 705 Mode
Controller (opt)
9. ADF (Opt)
10. CAPS Activation Handle
(Cabin Ceiling)
11. Hour Meters
12. Egress Hammer
13. Telephone and
Audio Jacks
14. Cabin Speaker
15. Roll Servo (opt)
16. Pitch Trim Adapter (opt)
17. Pitch Servo (opt)
18. XM Radio
Transceiver (Opt)
19. Transponder
20. Satellite Data Link
Receiver (Opt)
21. ELT
22. Battery 2
23. Tiedown Loops
24. CAPS Parachute
25. Stormscope
Receiver (Opt)
26. Microphone
27. TAS Receiver (Opt)
28. DME (Opt)
29. Fire Extinguisher
8
4
13
7
10
11
12
14
18
19
20
29
25
24
22
21
3
2
1
4
23
27
26
23
9
