If the wall reader remains without power supply for several hours, it must be synchronized once again
in order to work fine. To achieve this, issue a Synchronization Card from the Service Cards Menu of the
eSIGNO Mobile in HHI mode and present it to the wall reader. If the card is correctly read, the wall
reader gives 2 green and red blinks, together with 2 acute beeps.
Note
NoteNote
Note: when a user card is presented to a not synchronized wall reader, it gives 5 red blinks together
with 5 beeps.

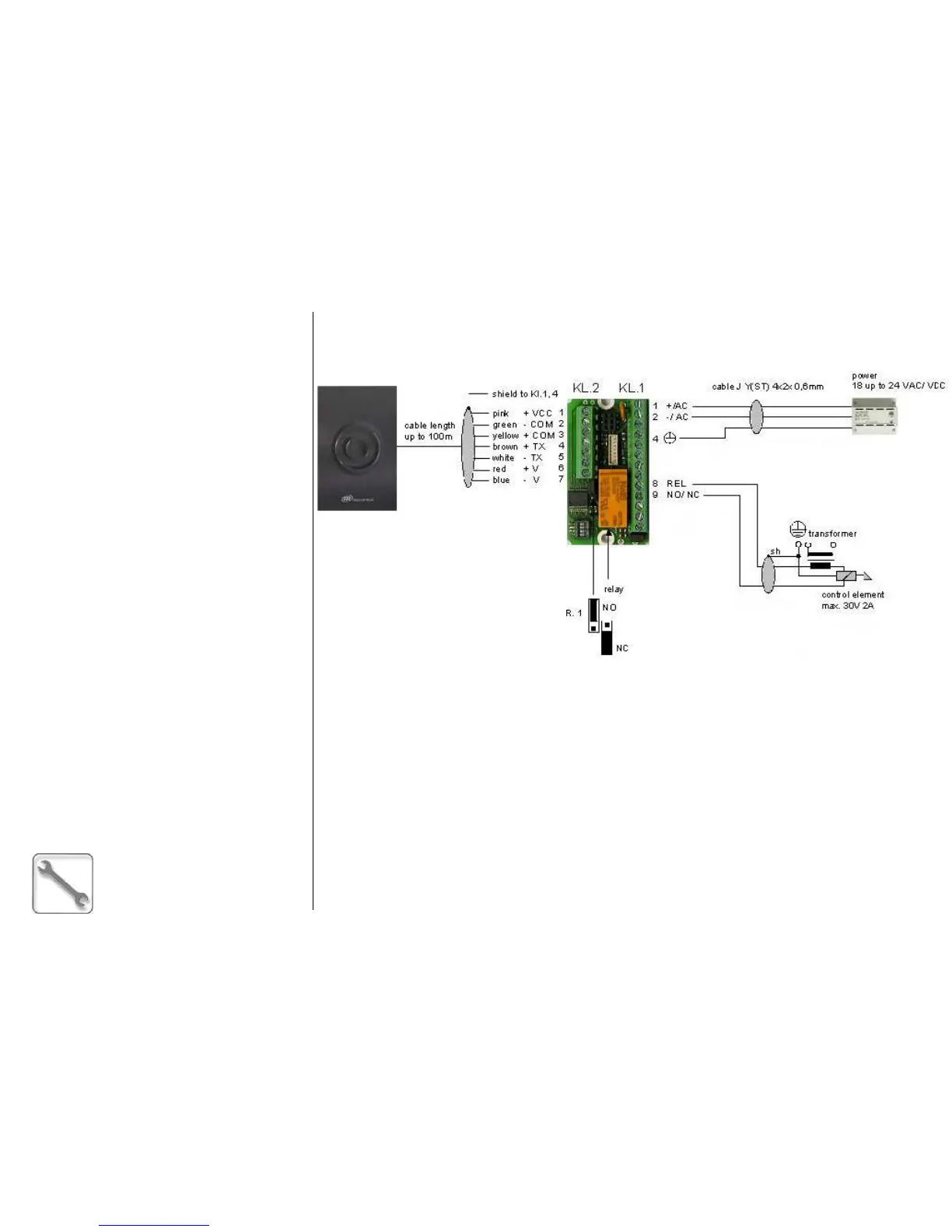

In order to obtain the desired behavior of the relay, set the
jumper in the correct way
Relay connection
Wall reader connection
