Configuring Cisco Discovery Protocol
This page shows the following information:
• The name of each access point
• The IP address of each access point
• The name of each CDP neighbor
• The IP address of each CDP neighbor
• The port used by each CDP neighbor
• The CDP version being advertised (v1 or v2)
Step 5 To see detailed information about an access point’s CDP neighbors, click the name of the desired access
point. The CDP > AP Neighbors > Detail page appears (see Figure 4-34).

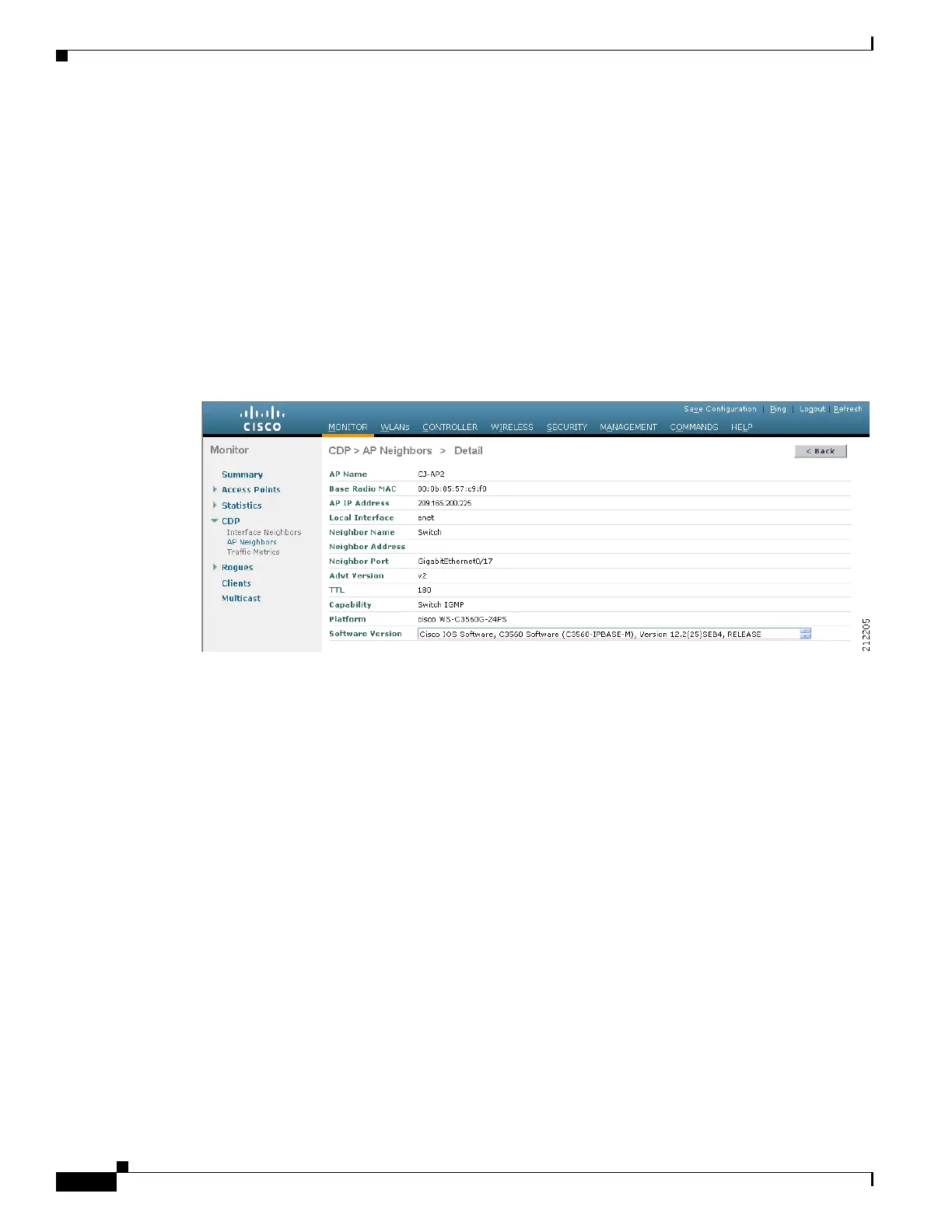

Figure 4-34 CDP > AP Neighbors > Detail Page
This page shows the following information:
• The name of the access point
• The MAC address of the access point’s radio
• The IP address of the access point
• The interface on which the CDP packets were received
• The name of the CDP neighbor
• The IP address of the CDP neighbor
• The port used by the CDP neighbor
• The CDP version being advertised (v1 or v2)
• The time left (in seconds) before the CDP neighbor entry expires
• The functional capability of the CDP neighbor, defined as follows: R - Router, T - Trans Bridge,
B - Source Route Bridge, S - Switch, H - Host, I - IGMP, r - Repeater, or M - Remotely Managed
Device
• The hardware platform of the CDP neighbor device
• The software running on the CDP neighbor
Step 6 To see CDP traffic information, click Traffic Metrics. The CDP > Traffic Metrics page appears (see
Figure 4-35).
