Cisco 4400 Series User Manual

6-59
Cisco Wireless LAN Controller Configuration Guide
OL-17037-01
Chapter 6 Configuring WLANsWireless Device Access
Configuring WLANs

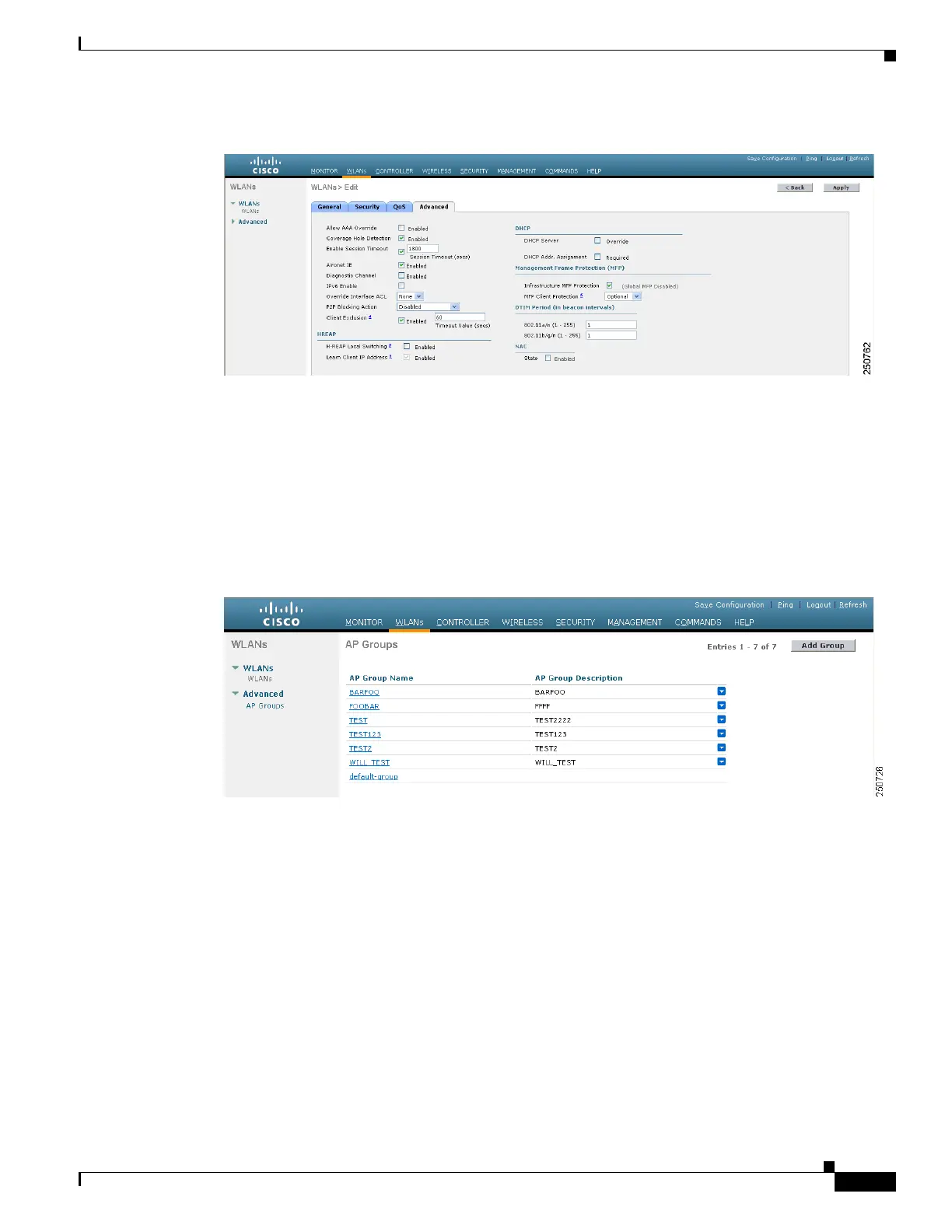

Figure 6-29 WLANs > Edit (Advanced) Page
d.
To configure NAC out-of-band support for this WLAN or guest LAN, check the NAC State check
box. To disable NAC out-of-band support, leave the check box unchecked, which is the default
value.
e. Click Apply to commit your changes.
Step 3 To configure NAC out-of-band support for a specific access point group, follow these steps:
a. Click WLANs > Advanced > AP Groups to open the AP Groups page (see Figure 6-30).
Figure 6-30 AP Groups Page
b.
Click the name of the desired access point group.
c. Click the WLANs tab to open the AP Groups > Edit (WLANs) page.
d. Click Add New to assign a WLAN to this access point group. The Add New section appears at the
top of the page (see Figure 6-31).

Cisco 4400 Series Specifications

General

Product Type	Wireless LAN Controller
Manageable	Yes
Management Port	Yes
Power over Ethernet (PoE)	No
Operating Temperature	32 to 104°F (0 to 40°C)
Security	WPA, WPA2, 802.1X, AES, TKIP
Power Supply	AC Power Supply
Wireless LAN Standard	IEEE 802.11a/b/g/n
Form Factor	Rack-mountable
Redundancy	Yes
Operating Humidity	10% to 90% non-condensing
