13-11

Cisco Aironet 1100 Series Access Point Installation and Configuration Guide

OL-2851-01

Chapter 13 Configuring QoS

QoS Configuration Examples

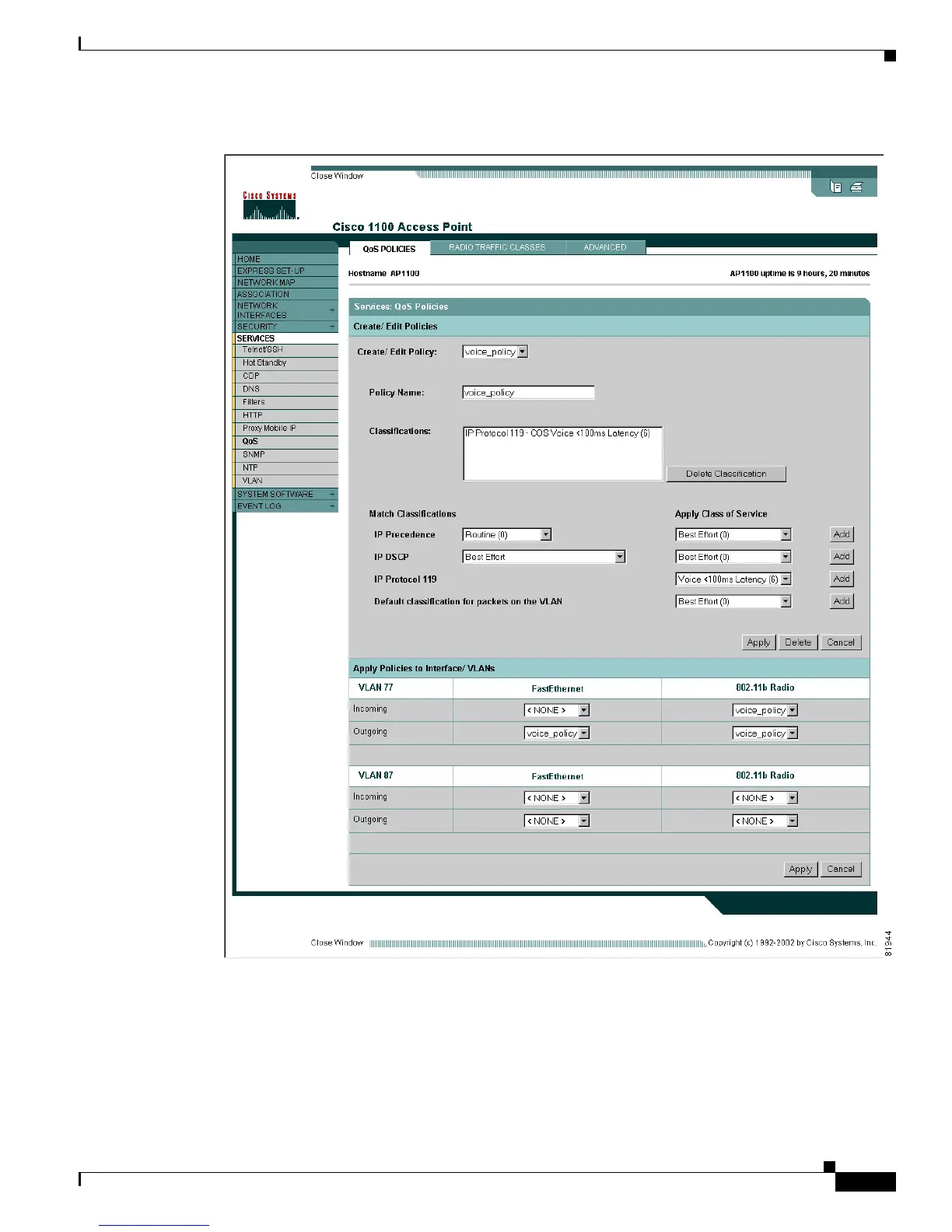

Figure 13-5 QoS Policies Page for Voice Example

The network administrator also enables the QoS element for wireless phones setting on the QoS

Policies - Advanced page. This setting gives priority to all voice traffic regardless of VLAN.
