Appendix D Mounting Instructions
Mounting on a Cubical Wall Partition
Mounting on a Cubical Wall Partition
Follow these steps to mount the access point on a cubical wall partition.
Step 1 Select the place on the partition where you want to mount the access point.
Step 2 Determine the width of the partition you going to mount the access point on.
Step 3 Assemble the cubical partition mounting bracket by sliding the two pieces together. You can use either
the short or long part of the bracket to obtain the proper fit to the partition wall.
• The bracket is adjustable from 2.125 in. (5.39 cm) to 4.25 in. (10.79 cm).
Step 4 Connect the Ethernet and power cables.
Step 5 Line up the mounting slots on the access point with the mounting rails on the cubical partition mounting
bracket and slide it down the rails until it clicks into place.
Step 6 Position the mounting bracket over the partition wall and adjust it to fit. See Figure D-6.

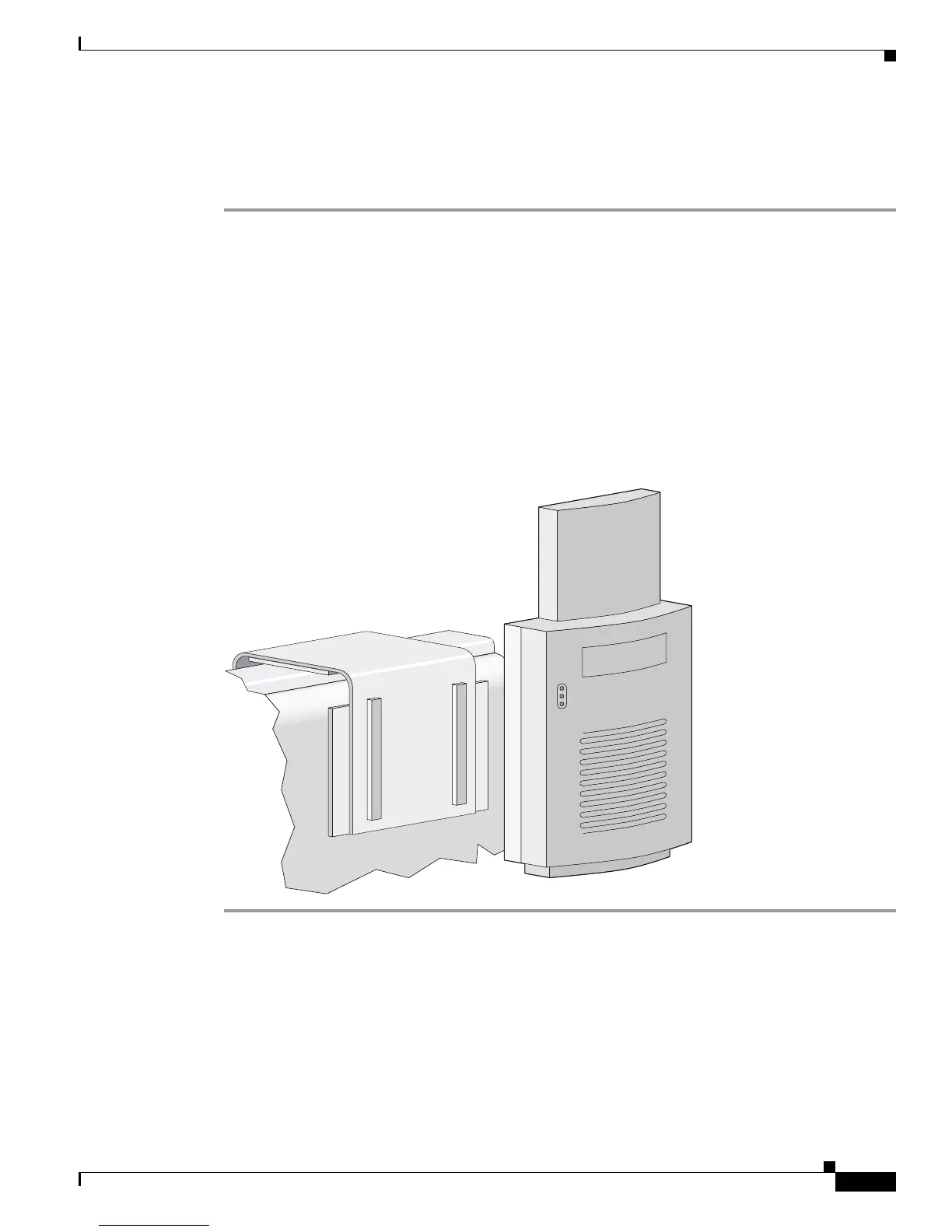

Figure D-6 Cubicle Wall Bracket
81223
