Chapter 1 Overview
Features
Features
This section describes access point features. Refer to Appendix G, “Access Point Specifications,” for a
list of access point specifications.
Hardware Features
Key hardware features of the 1100 series access point include:
• Single Radio Operation, page 1-2
• Ethernet Port, page 1-2
• Status Indicators, page 1-3
• Power Sources, page 1-3
• UL 2043 Certification, page 1-4
• Anti-Theft Features, page 1-4

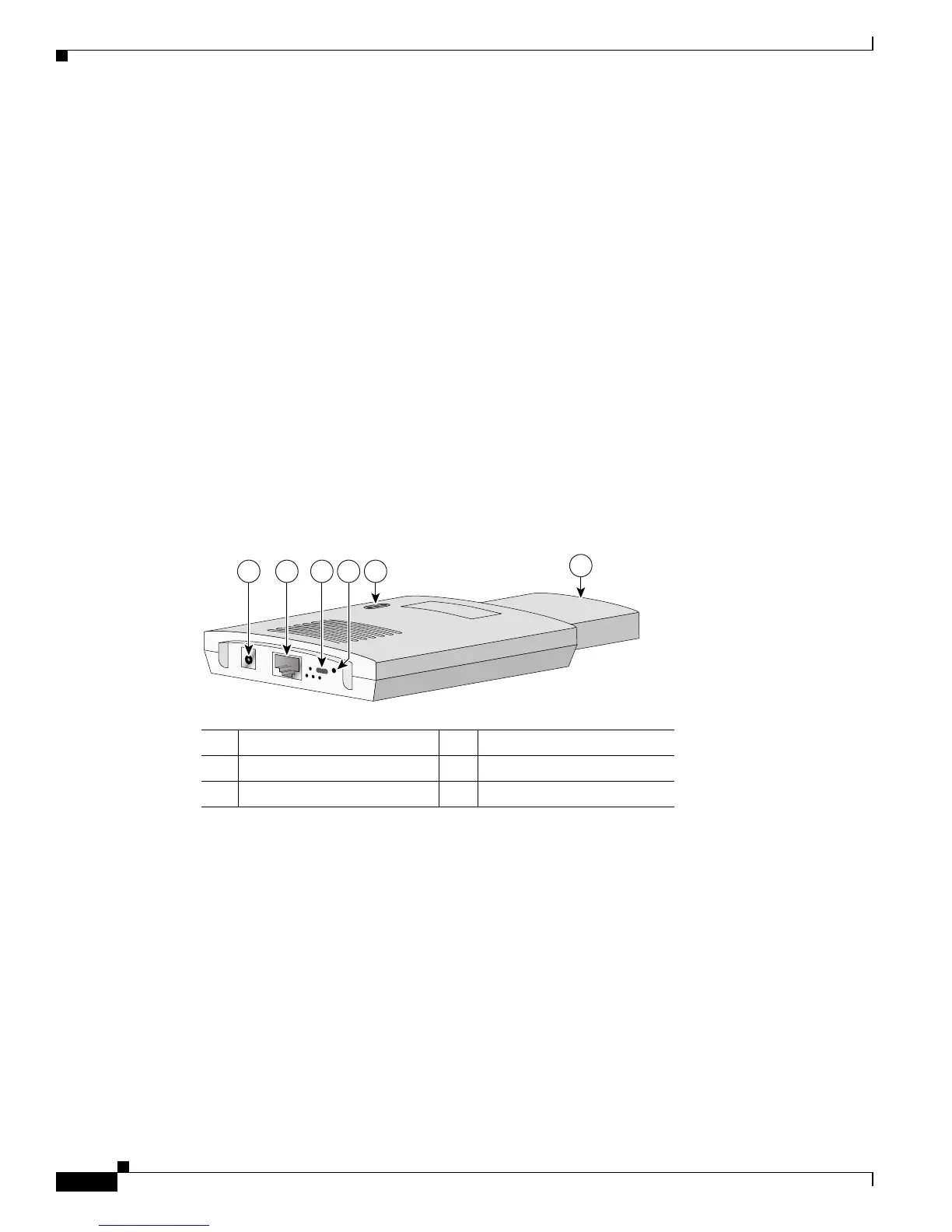

Figure 1-1 shows the location of some of the hardware features.
Figure 1-1 Access Point Layout and Connectors
Single Radio Operation
The access point contains a 2.4-GHz radio in a mini-PCI slot and two 2.2-dBi dipole integrated antennas.
You can perform a field upgrade to the mini-PCI radio and antennas to support future radio technologies.
Ethernet Port
The auto-sensing Ethernet port accepts an RJ-45 connector, linking the access point to your 10BASE-T
or 100BASE-T Ethernet LAN. The access point can receive power through the Ethernet cable from a
power injector, switch, or power patch panel. The Ethernet MAC address is printed on the label on the
back of the access point.
1 2 3 5
81180
6
4
1 48 VDC power port 4 Mode button
2 Ethernet port (RJ-45) 5 Status LEDs
3 Cable lock slot 6 Antenna
