Using the Desktop Holster
Using the Desktop Holster
Follow these steps to mount the access point on a desktop or other horizontal surface using the supplied
desktop holster.
Step 1 Select a suitable location to place the holster.
Step 2 Connect the Ethernet and power cables.
• If you are going to secure the access point with a Kensington lock, attach it now.
Step 3 Position the holster so that its back side is facing you.
Step 4 Insert the access point into the holster while guiding the cables so that they do not interfere with the sides
of the holster. You will hear a click when the access point locks into place. See Figure D-7.

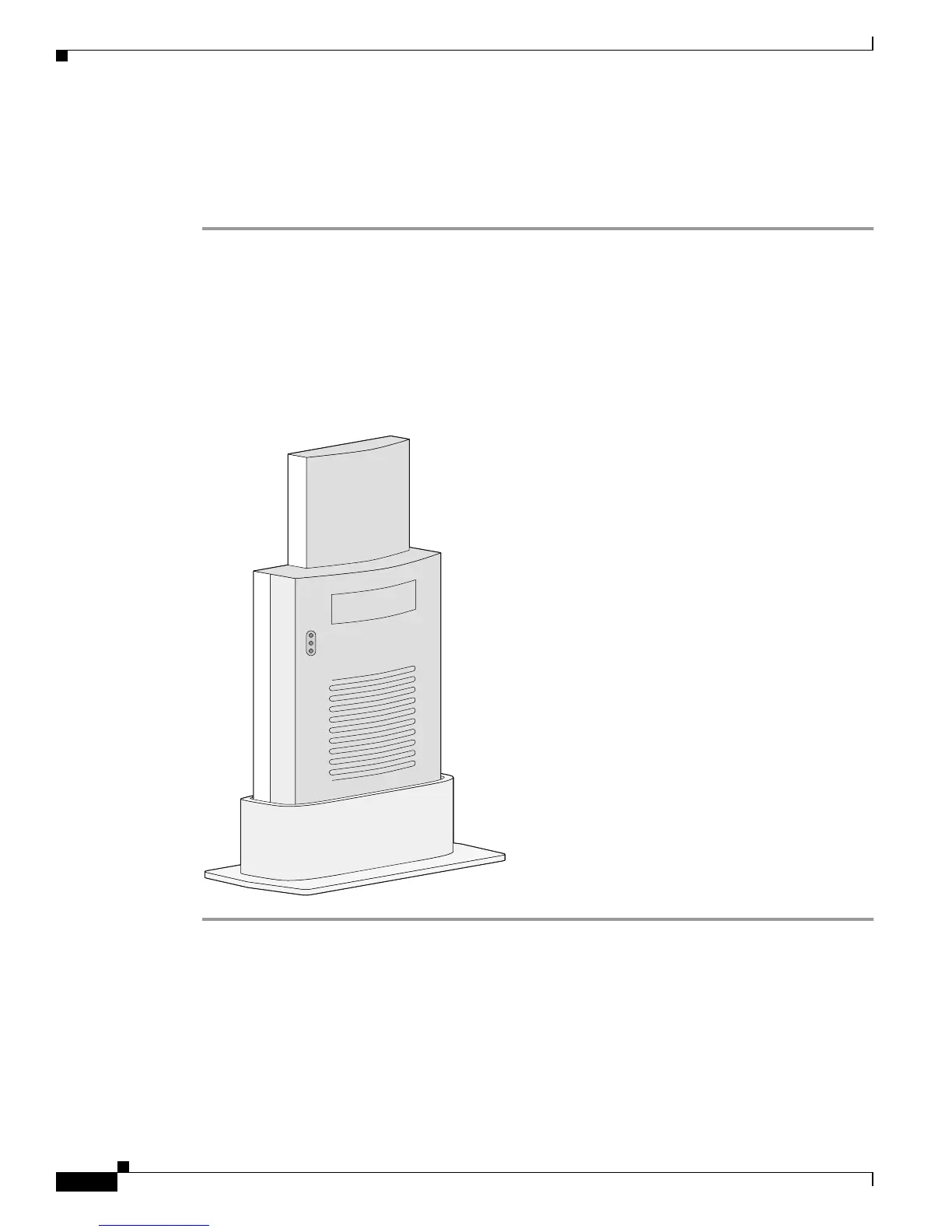

Figure D-7 Desktop Holster
81173
