Cisco ASR 1002-HX

Step 5

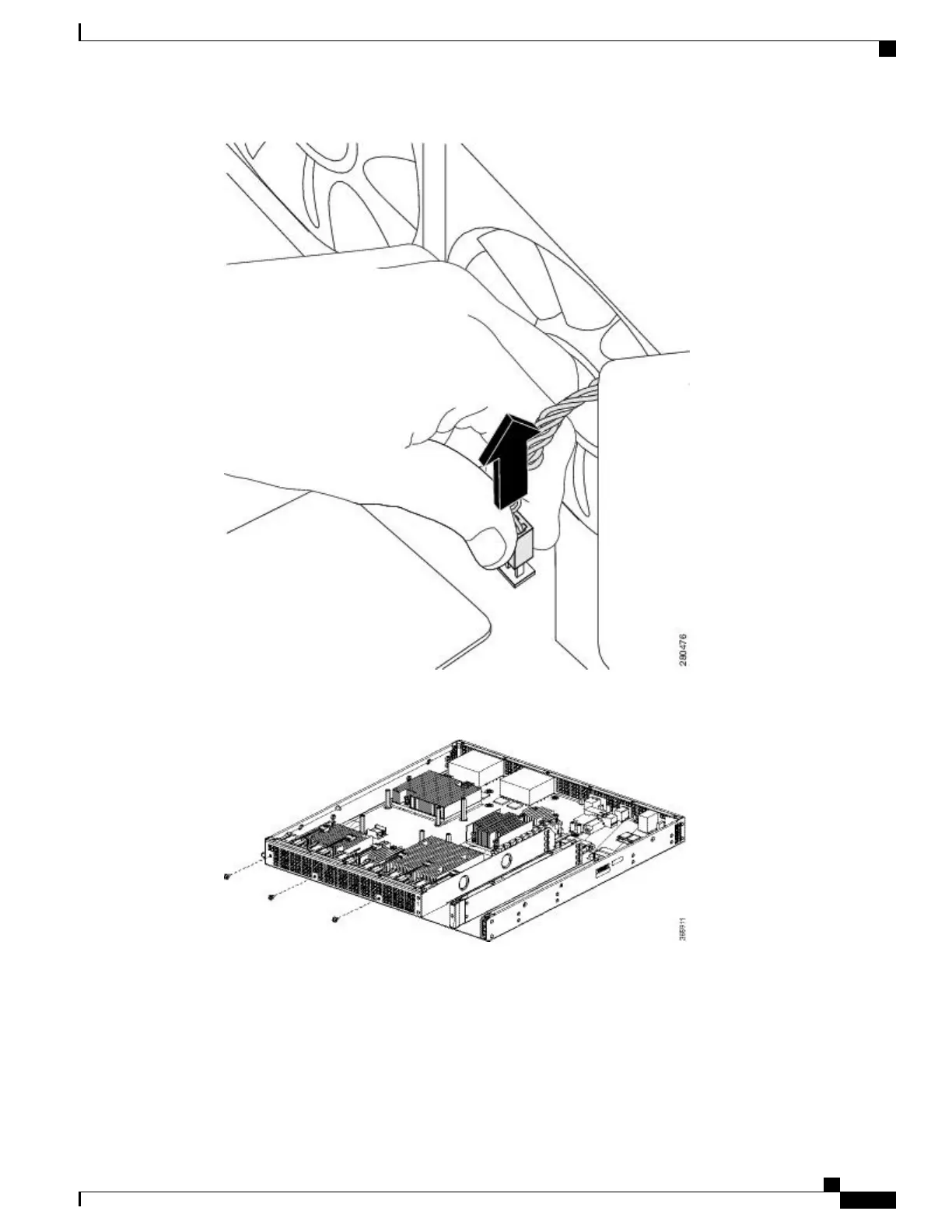

Remove the three screws from the rear of the chassis as shown in the following figure.
Step 6
Rotate the fan tray slightly forward, and then lift it out of the chassis as shown in the following figure.
