Installing a Fan Module
Procedure
Step 1 Pinch the fan module release handle, and slide the module out.
You should replace the fan module within 5 minutes to avoid overheating the switch.
Caution
Step 2 Install the fan module in the fan slot, and firmly push it into the slot, applying pressure to the end of the
module, not the extraction handles. When correctly inserted, the fan module is flush with the switch rear panel.
When the fan is operating, a green LED is on in the top left corner of the fan.

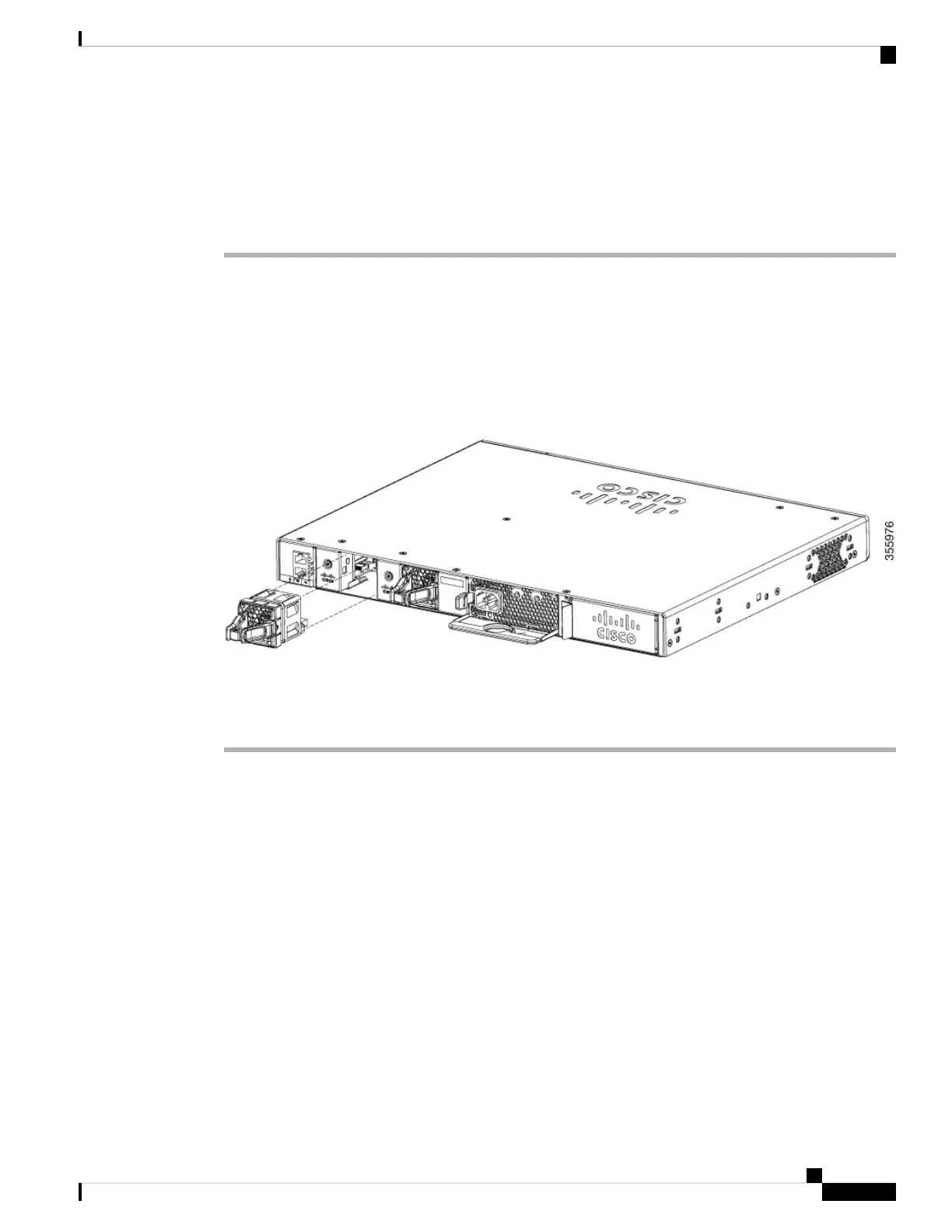

Figure 63: Installing a Fan Module
Do not reach into a vacant slot when installing or removing a module. Exposed circuitry is an energy
hazard. Statement 206
Warning
Finding the Fan Module Serial Number
If you contact Cisco Technical Assistance regarding a fan module, you need to know the fan module serial
number. See the following illustration to find the serial number.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
97
Installing a Fan Module
Installing a Fan Module

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
