Cisco Catalyst 9200 Series Hardware Installation Guide

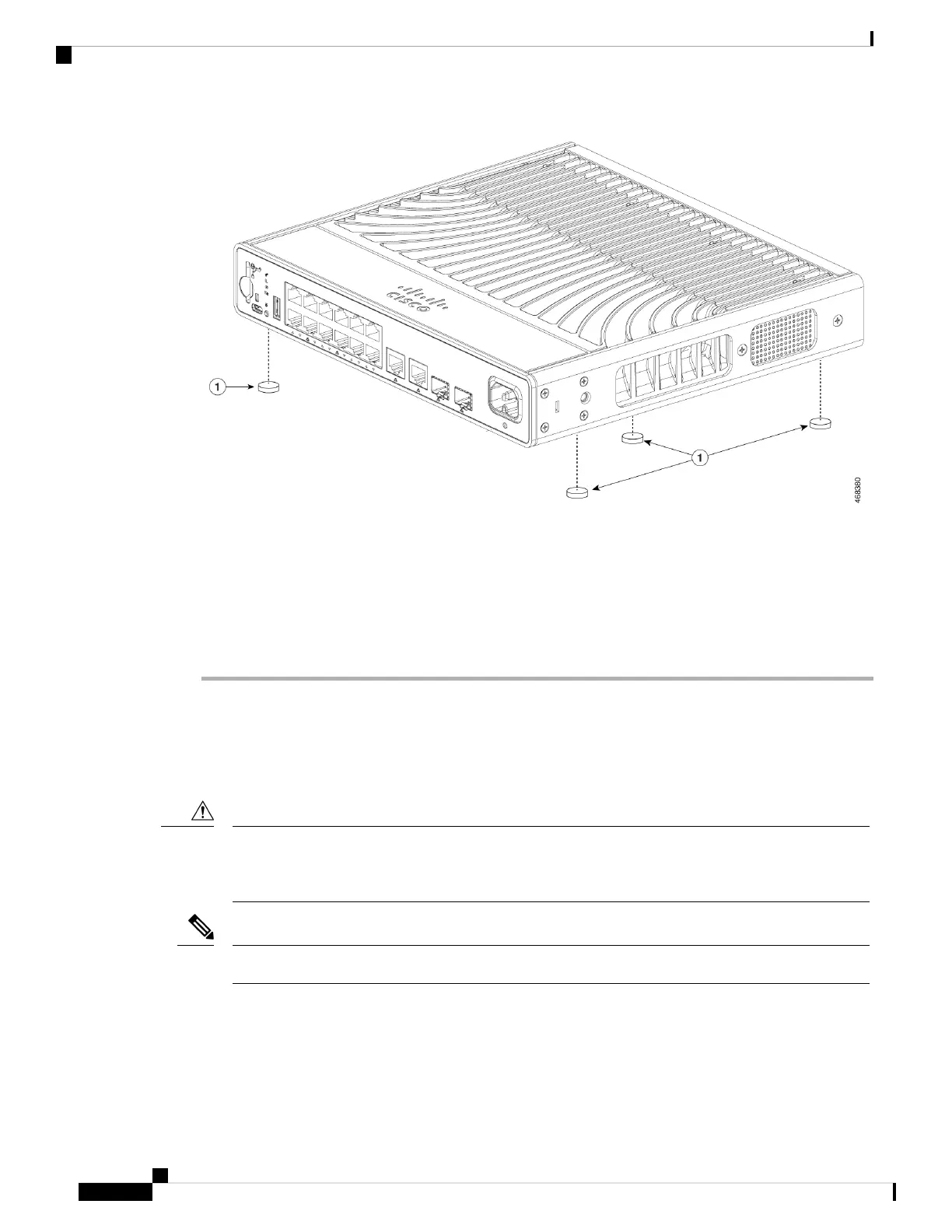

We strongly recommend that you attach the rubber feet to the specified location and place the side
of the switch with Cisco logo facing upwards. Doing so helps prevent airflow restriction and
overheating.
Note
To prevent airflow restriction, allow clearance around the ventilation openings to be at least 3 inches
(7.6 cm). Statement 1076
Warning
Step 3 Place the switch on the desk or the shelf.
Mounting using the Mounting Tray and Screws
You can use the mounting tray to secure the switch on to a desk or a wall. The illustrations in this procedure
shows how to mount the switch on a desk. You can follow similar procedure to mount the switch on a wall.
Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount
the switch with its front panel facing down or to the side, to allow sufficient airflow and to provide easier
access to the cables.
Caution
To avoid thermal issues, do no use this mounting method for under-table scenarios.
Note
Before you begin
Ensure you have the following items before starting the procedure.
• Mounting tray (C9K-WALL-TRAY)
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
52
Installing a Compact Switch
Mounting using the Mounting Tray and Screws

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
