Procedure
Step 1 Place the DIN rail mount on the DIN rail, making sure that the top of the DIN rail mount clip hooks over the
top of the DIN rail.
Step 2 Sliding the release tab downwards, hook the clip on to the rail and release the tab until the rail mount clip
locks into place with a click.

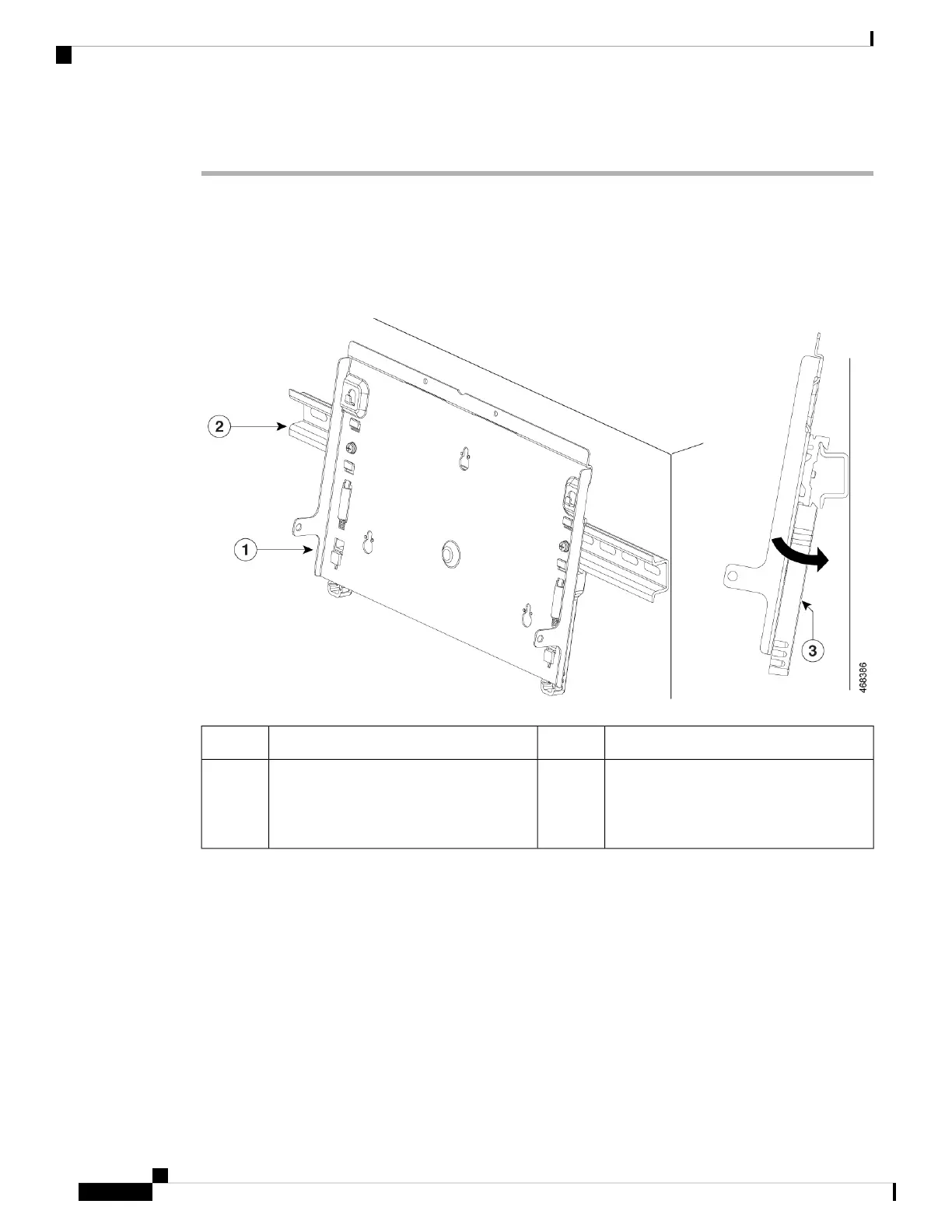

Figure 35: Attaching the DIN Rail Mount to the DIN Rail
Release tab3DIN rail mount1
--DIN rail
Note that the DIN rail is not
part of the DIN Rail Mount kit.
Note
2
Step 3 Place the switch on to the DIN rail mount and secure it using the two 10-32 Phillips pan-head screws.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
64
Installing a Compact Switch
Mounting the Switch on a DIN Rail

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
