Cisco Firepower 1100

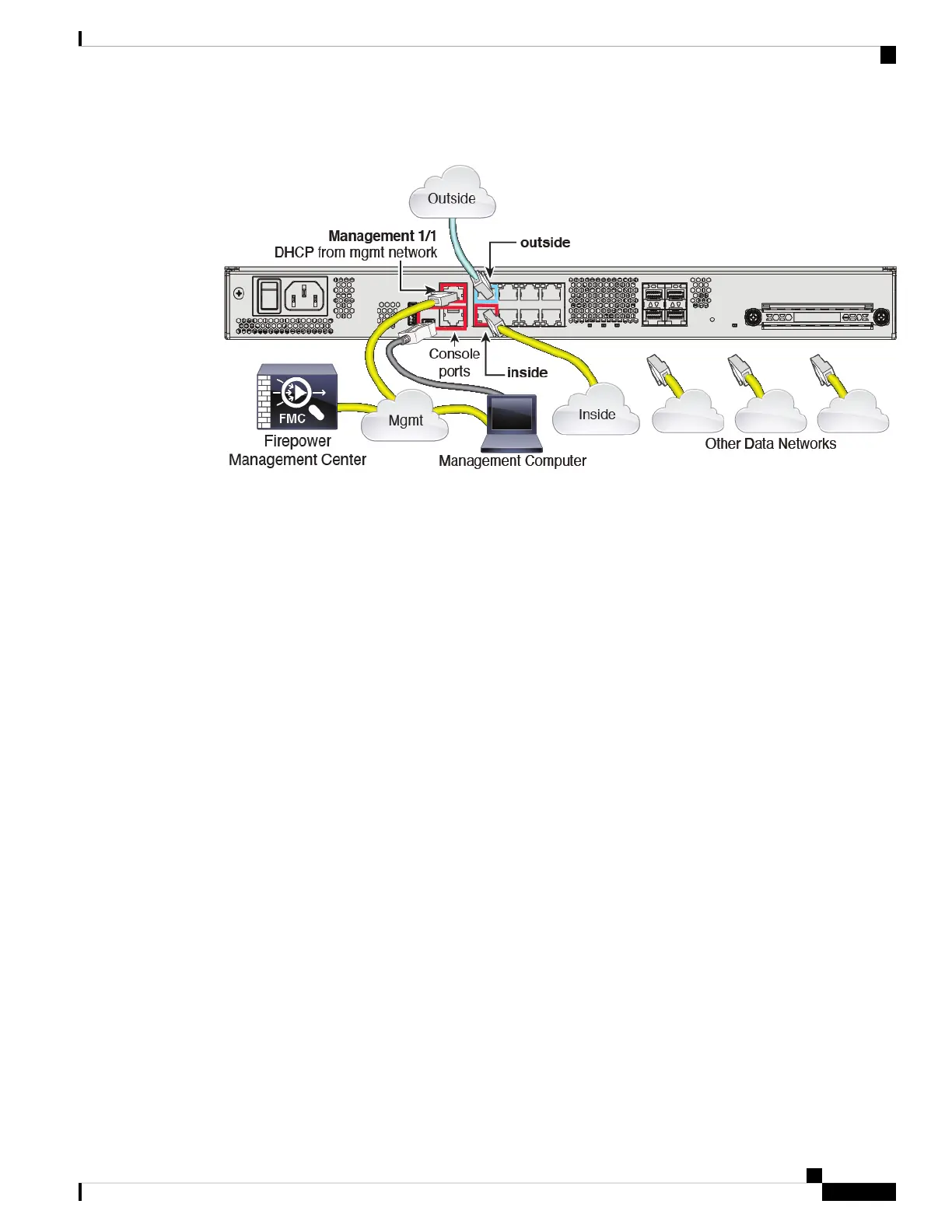

Figure 37: Cabling a Separate Management Network
For version 6.5 and earlier, the Management 1/1 default IP address is 192.168.45.45.
Note
a) Cable the following to your management network:
• Management 1/1 interface
• Firepower Management Center
• Management computer
b) Connect the management computer to the console port. You need to use the console port to access the
CLI for initial setup if you do not use SSH to the Management interface.
c) Connect the inside interface (for example, Ethernet 1/2) to your inside router.
d) Connect the outside interface (for example, Ethernet 1/1) to your outside router.
e) Connect other networks to the remaining interfaces.
Step 2 Cable for an edge deployment:
Cisco Firepower 1100 Getting Started Guide
91
Firepower Threat Defense Deployment with FMC
Cable the Device
