FM Racer configuration files use the *.FMCONF file extension.
If the unit is not connected to the Internet, you can still use the FM Racer
configuration interface to define a configuration file, then upload it to the
unit. This can be done in either of two different ways:
• A range of ready-made configuration templates are available from
the FM Racer interface. Each template caters to a particular
configuration scenario, and can be copied and modified to your
needs.
• Alternatively, you can create a new, custom configuration template.
For instructions on how to copy, modify or create a configuration template
using the FM Racer interface, refer to the Fluidmesh Networks FM Racer
User Manual.
A configuration file that has been created using the FM Racer interface
must be uploaded to the unit. To upload a FM Racer configuration file, do
the following steps:
1. Switch the unit to Offline mode as shown in “Switching between
offline and online modes” (page 56).
2. Click the -RACER™ link in the left-hand settings menu.
• The Configurator landing page will be shown.
3. Click the Choose File button in the Upload Configuration File
section (Figure 19 (page 58)).

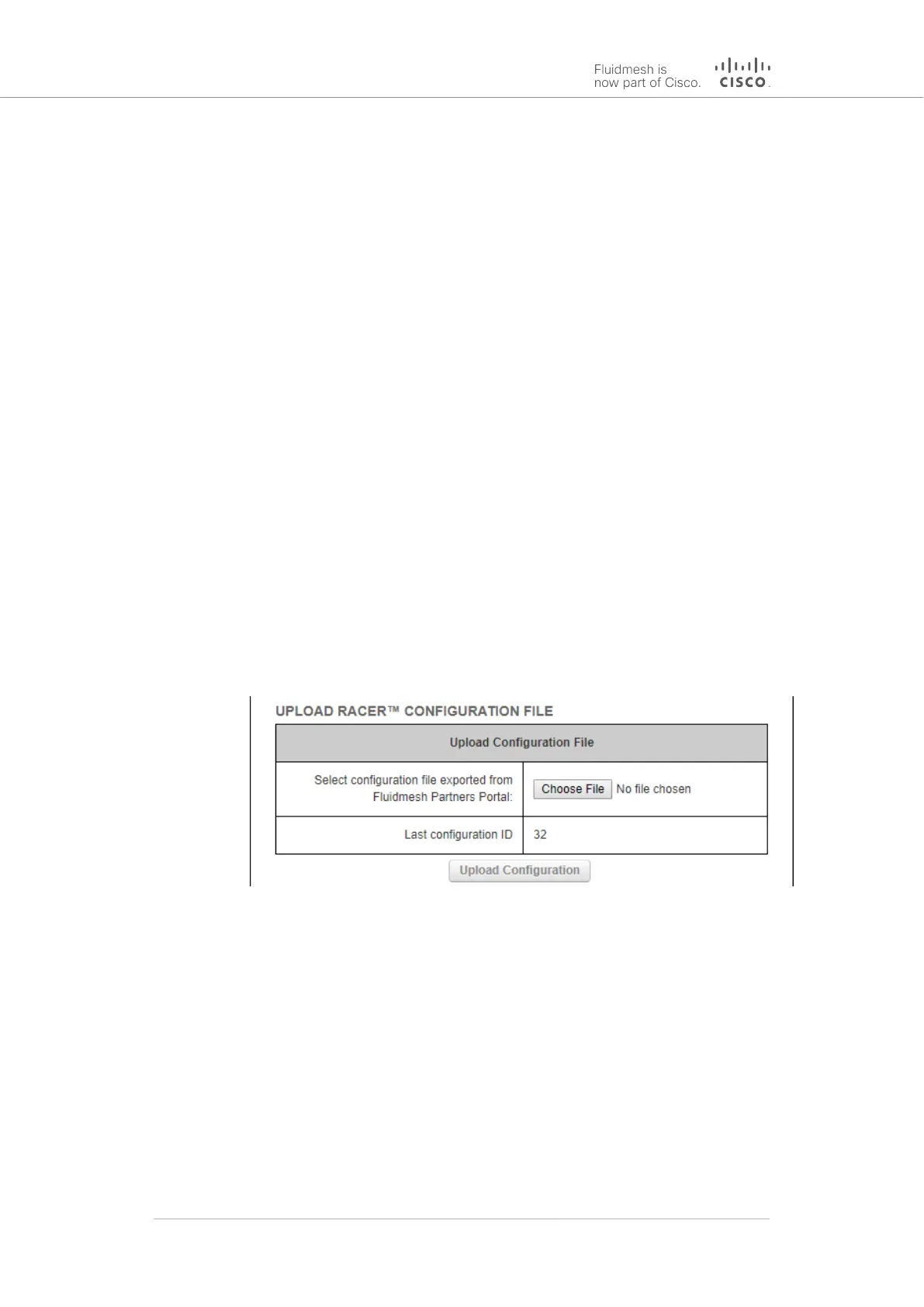

Figure 19. Configurator interface (FM Racer configuration file
upload dialog)
• Find and choose the correct configuration file by following
the software prompts.
4. Click the Upload Configuration button.
• The configuration file will be uploaded and applied to the
unit.
Cisco Ultra-Reliable Wireless
Backhaul FM4200 Mobi
© 2020 Cisco and/or its affiliates. All rights reserved. Page 58 of 177
