Cisco Line Card 4500 E-Series User Manual

4-18
Catalyst 4500 E-Series Switches Installation Guide
OL-13972-02
Chapter 4 Removal and Replacement Procedures
Removing and Installing the Backplane Modules

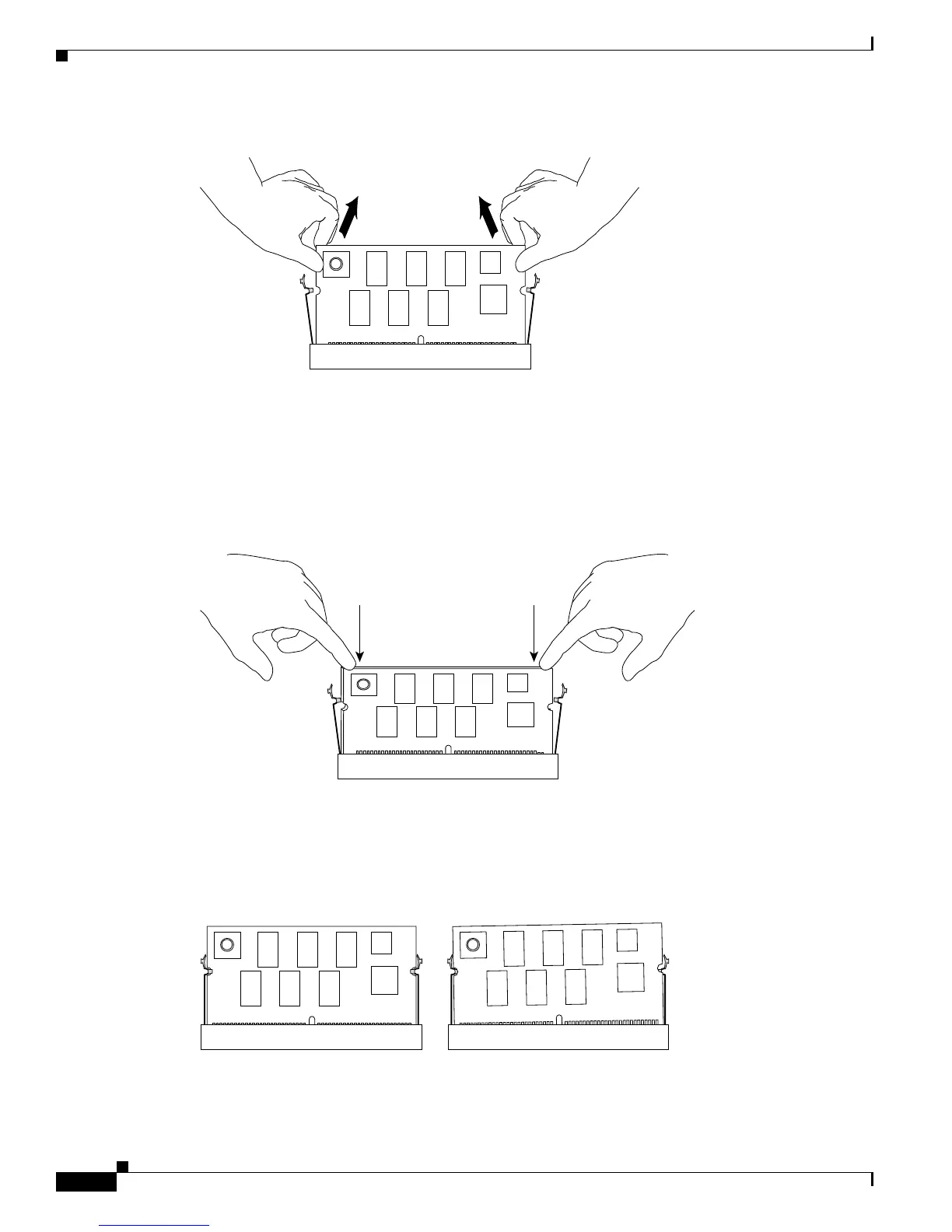

Figure 4-19 Removing the Module
Step 11 Remove the replacement module from its packaging. Be careful not to touch the chips or the gold edge
contacts on the module.
Step 12 Carefully position the replacement module in the socket, and gently push the module down to seat it in
the socket. Make sure that you apply force evenly on both the left and right side of the module. (See
Figure 4-20.)
Figure 4-20 Seating the Replacement Module
Step 13 Make sure that the module is fully seated and that it is clipped in by the levers on both sides. (See
Figure 4-21.)
Figure 4-21 Correct Module Seating
Step 14 Repeat Step 6 through Step 13 for any other modules that you need to replace.
130660
130661
Good Bad
130662
