Cisco MDS 9000 Family Troubleshooting Guide
OL-5183-02, Cisco MDS SAN-OS Release 1.3
Chapter 5 Troubleshooting IP Storage Issues
Troubleshooting FCIP Connections

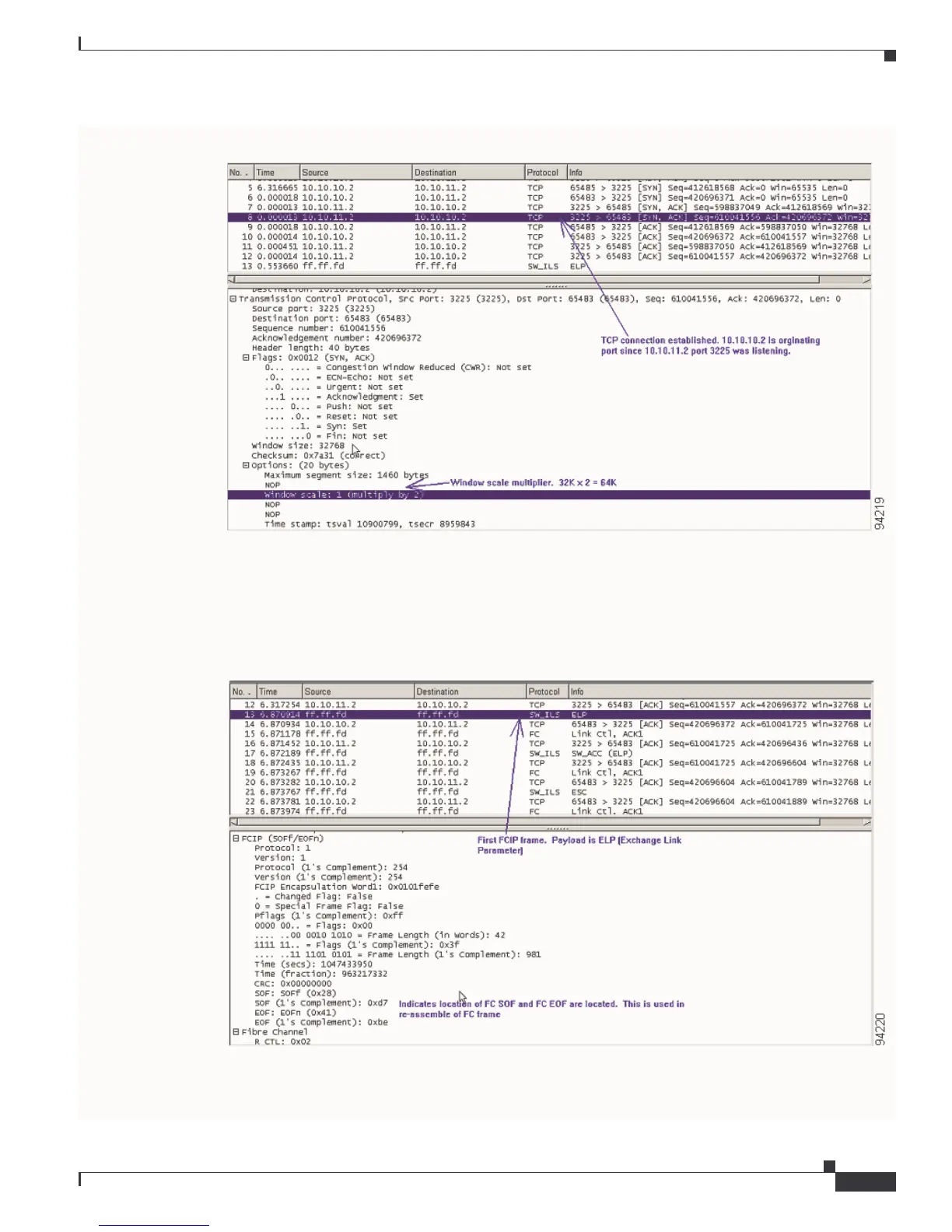

Figure 5-3 First Capture of TCP Connection
Figure 5-4 shows more of the trace, with frame 13 being the first FCIP frame. This frame carries the FC
Standard ELP.
Figure 5-4 Second Capture of TCP Connection
