Cisco MDS 9000 Series Troubleshooting Guide

Send comments to mdsfeedback-doc@cisco.com.
5-15
Cisco MDS 9000 Family Troubleshooting Guide
OL-5183-02, Cisco MDS SAN-OS Release 1.3
Chapter 5 Troubleshooting IP Storage Issues
Troubleshooting FCIP Connections
One to three FCIP tunnel creation and monitoring
Figure 5-6 shows the configuration of switch MDS1 for three tunnels from one Gigabit Ethernet port.

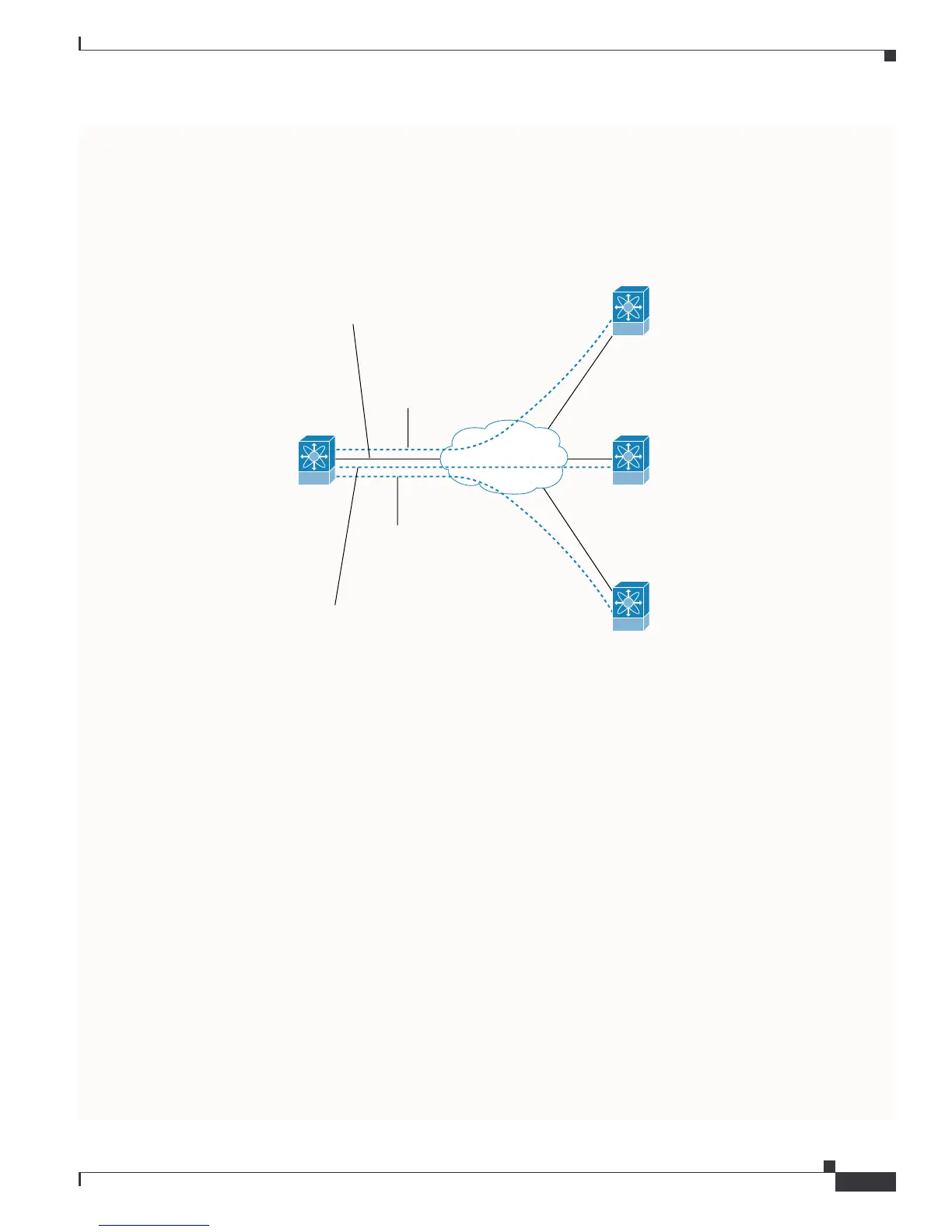

Figure 5-6 MDS1 Configured for Three FCIP Tunnels
The following example shows the configuration of switch MDS1 for three tunnels from one Gigabit
Ethernet port.
MDS1(config)# fcip profile 21
MDS1(config-profile)# ip address 10.10.10.2
MDS1(config-profile)# exit
MDS1(config)# interface fcip 21
MDS1(config-if)# use-profile 21
MDS1(config-if)# peer-info ipaddr 10.10.11.2
MDS1(config-if)# no shut
MDS1(config-if)# exit
MDS1(config)# ip route 10.10.11.0 255.255.255.0 10.10.10.1
MDS1(config)# ip route 10.10.11.0 255.255.255.0 int gigabitethernet 2/1
Now the interface FCIP is created for the second tunnel. The same FCIP profile is used for this example.
A separate FCIP profile can be used for each interface FCIP if desired.
MDS1(config-if)#
MDS1(config-if)# int fcip 23
MDS1(config-if)# use-profile 21
MDS1(config-if)# peer-info ipaddr 10.10.8.2
MDS1(config-if)# no shut
IP
Network
MDS1
Interface fcip 21
use-proficle 21
peer-info ipaddr 10.10.11.2
GE 2/1
10.10.10.2/24
Fcip profile 21
ip address 10.10.10.2
GE 2/1
10.10.10.2/24
Fcip profile 1
ip address 10.10.8.2
Interface fcip 1
use-proficle 1
peer-info ipaddr 10.10.10.2
GE 2/1
10.10.11.2/24
Fcip profile 1
ip address 10.10.11.2
Interface fcip 1
use-proficle 1
peer-info ipaddr 10.10.10.2
GE 2/1
10.10.7.2/24
Fcip profile 1
ip address 10.10.7.2
Interface fcip 1
use-proficle 1
peer-info ipaddr 10.10.10.2
Interface fcip 28
use-proficle 21
peer-info ipaddr 10.10.7.2
Interface fcip 23
use-proficle 21
peer-info ipaddr 10.10.8.2
94222

Cisco MDS 9000 Series Specifications

General

Category	Switch
Operating System	Cisco NX-OS
Ports	Varies by model
Protocols	Fibre Channel (FC), Fibre Channel over IP (FCIP), iSCSI
Redundancy	Redundant supervisors, power supplies, and fans
Management	Cisco Data Center Network Manager (DCNM), CLI, SNMP
Virtualization Support	VSANs (Virtual SANs)
Security Features	Fibre Channel Security Protocol (FC-SP)
Hot Swappable Components	power supplies, fans
Power Supply Options	AC and DC options available
